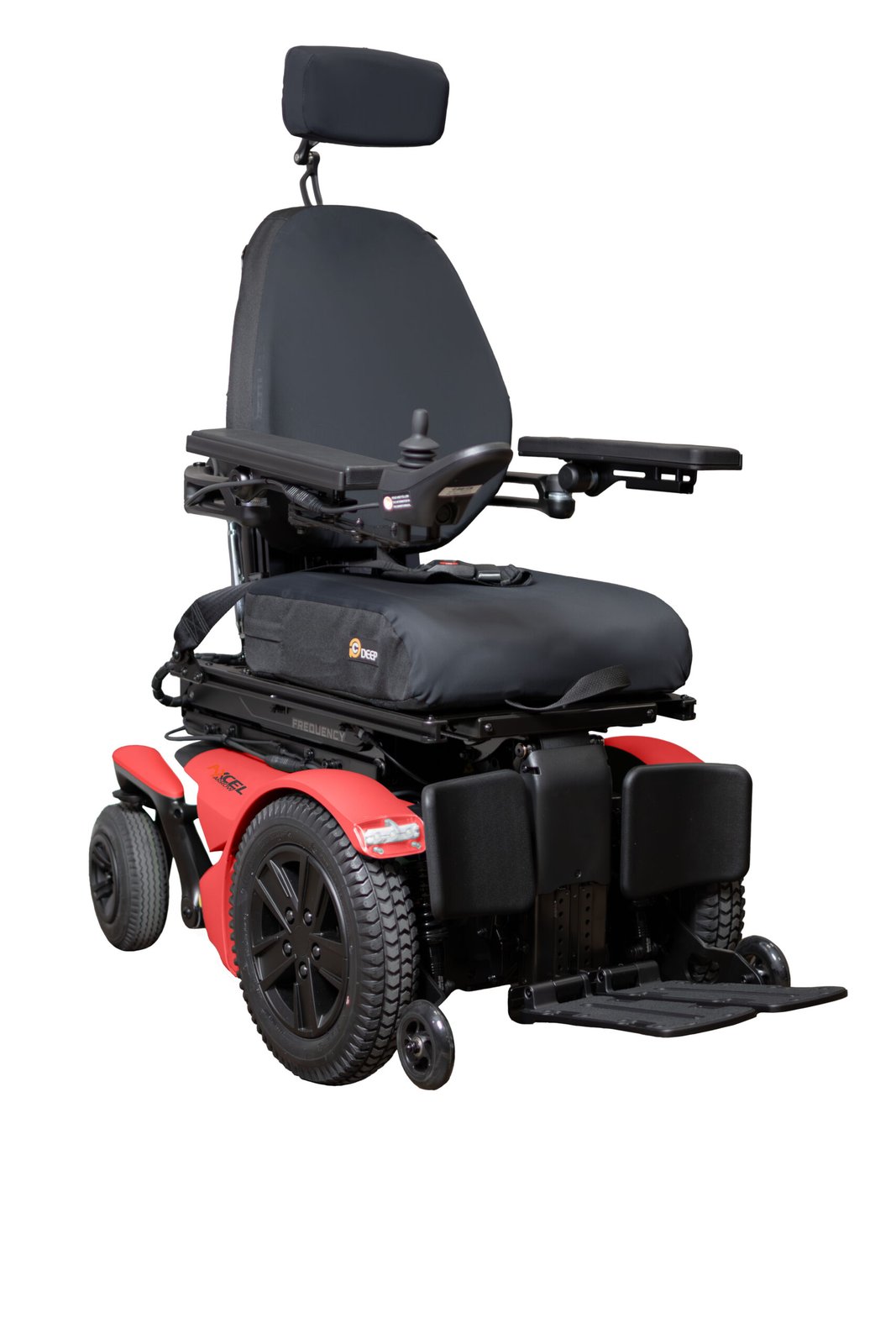

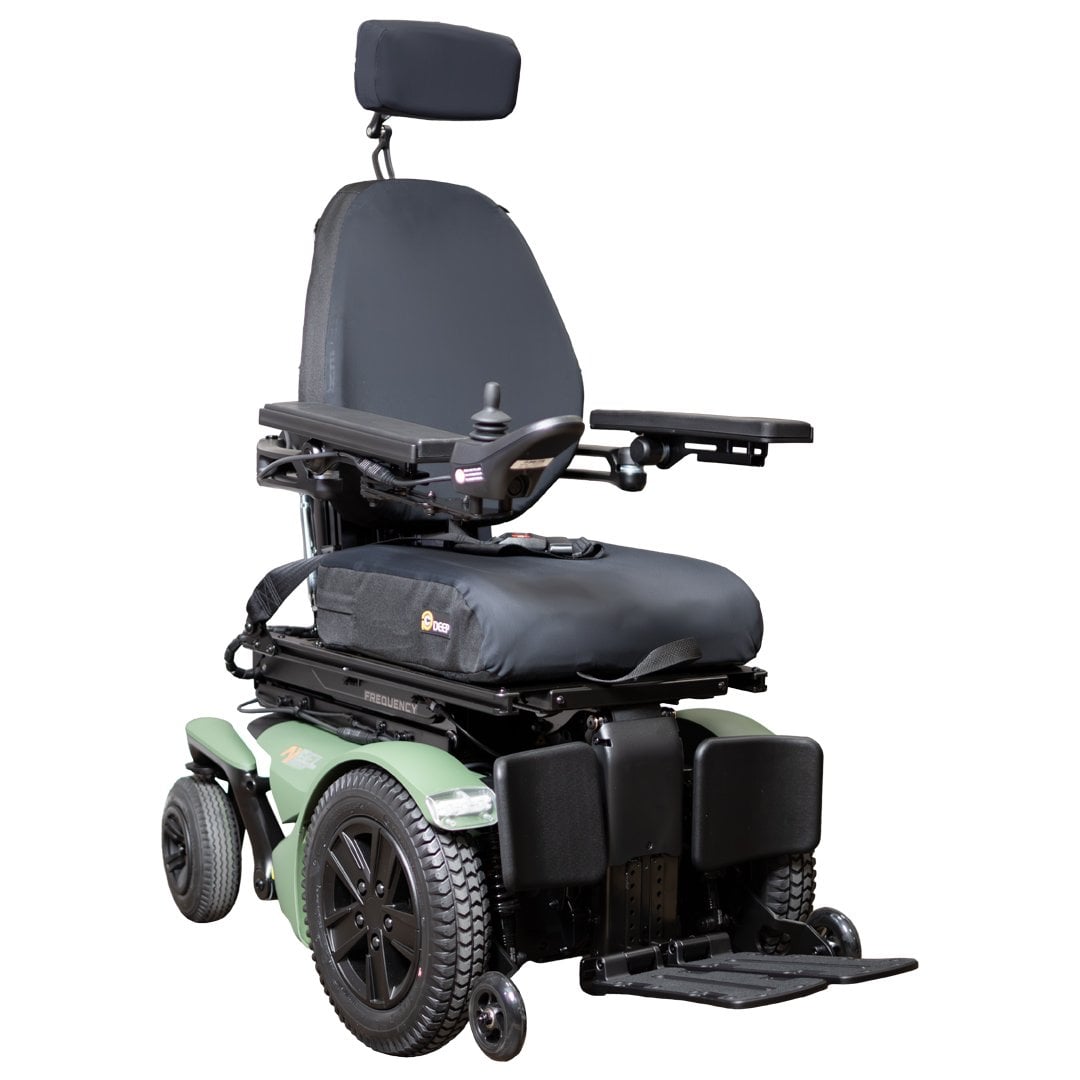

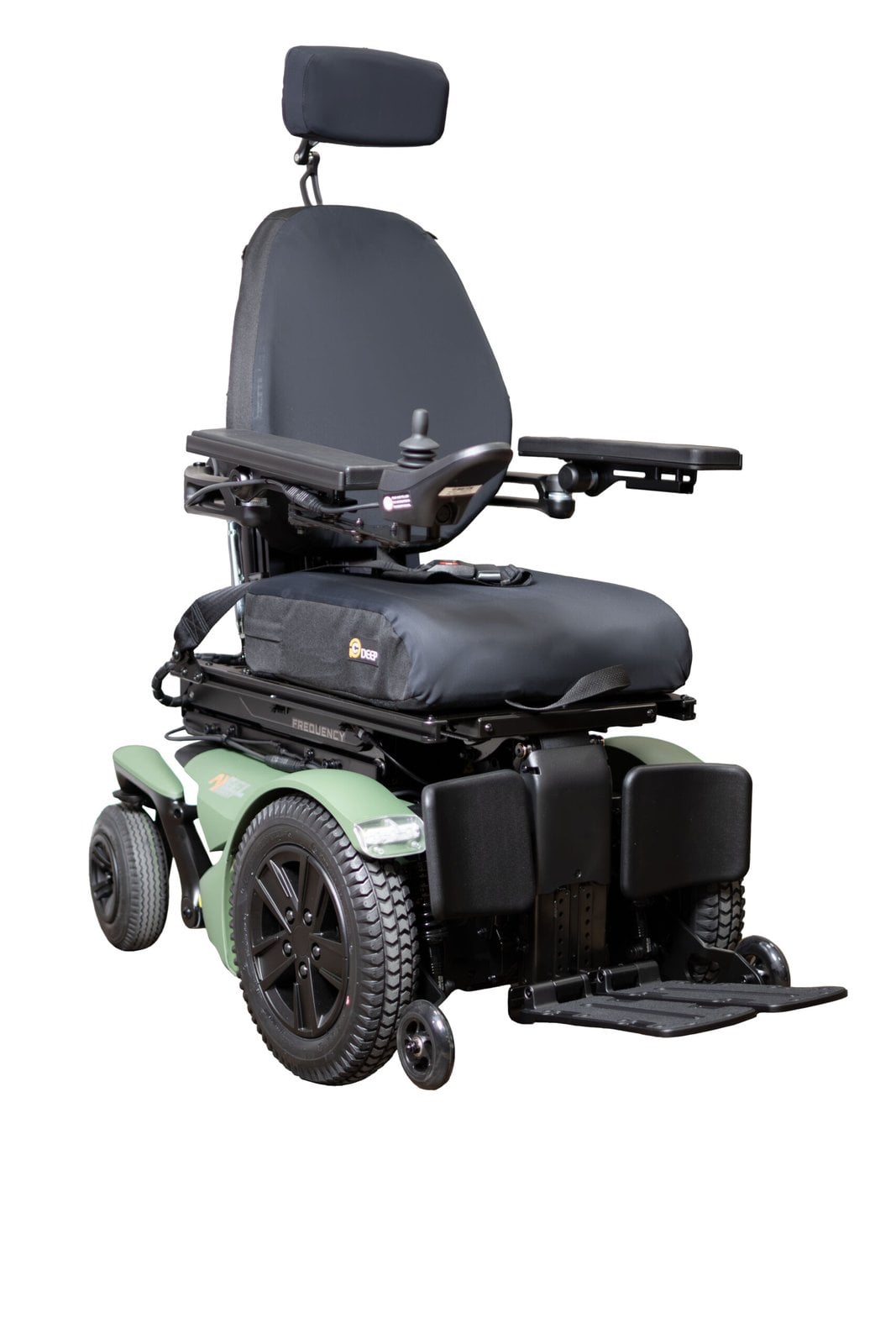

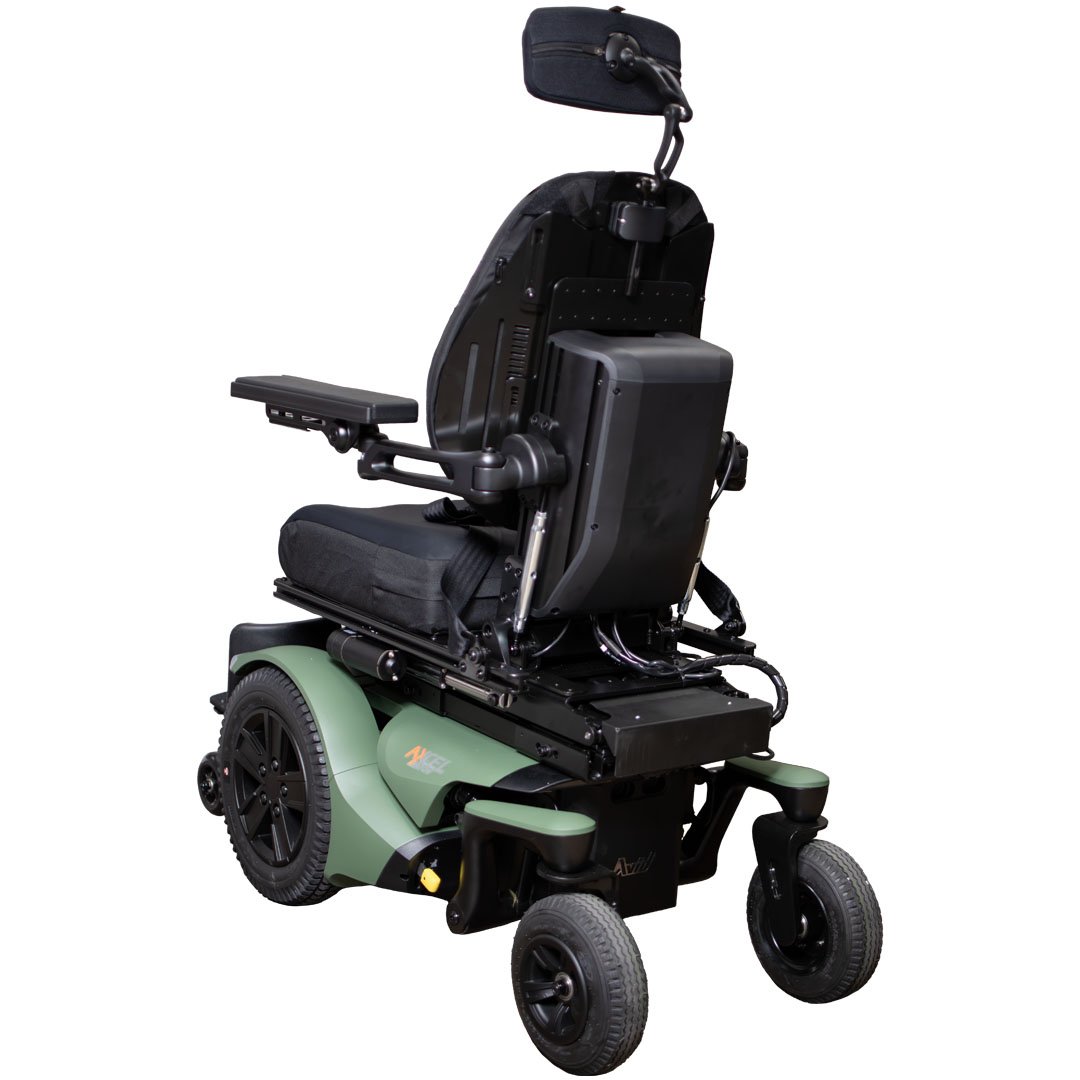

The Avid by Merits Axcel Narrow P335N is billed as the first front wheel drive rehab power base built just 22.5 inches wide. Most complex rehab chairs trade indoor access for outdoor ability. This one refuses the trade. The narrow footprint threads doorframes, galley kitchens and tight hallway turns with a 26 inch turning radius, while 14 inch front drive tires and independent hydraulic suspension keep it planted on grass, gravel and broken sidewalk.
It earned a 2024 Mobility Management Product Award for packing full CRT positioning into that slim frame. Power recline sweeps from 85 to 160 degrees with 6 inches of shear reduction, and a 12 inch power seat elevation option brings counters, shelves and eye level conversation within reach. The seating frame accepts 14 to 20 inch widths and depths so an ATP can dial in the fit.
Underneath, a 90 amp R-NET controller runs paired 222 watt motors, the electronics platform clinicians already program every day and the gateway to alternative drive controls. Two 50Ah MK AGM batteries deliver up to 19 miles per charge and slide out through a tool free rear access panel. Bright LED lighting comes standard, and Merits finishes the shroud in five colors including Sapphire Blue and Camo Green.
The Axcel Narrow is coded K0856 and K0861, so it sits squarely in the complex rehab category. Call us for a configured quote built around your seating and drive control needs.
| Model | P335N Axcel Narrow |
| HCPCS Code | K0856 / K0861 |
| Drivetrain | Front wheel drive |
| Weight Capacity | 300 lb |
| Max Speed | 5.2 mph |
| Range Per Charge | Up to 19 miles |
| Overall Width | 22.5 in |
| Overall Length | 39.6 in |
| Overall Height | 41.5 in |
| Seat Width | 14 to 20 in |
| Seat Depth | 14 to 20 in |
| Backrest Height | 18 to 22 in |
| Seat to Floor Height | 17.5 to 19.5 in |
| Turning Radius | 26 in without footplate |
| Ground Clearance | 3 in |
| Drive Wheels | 14 x 3 in hybrid gel |
| Rear Wheels | 9 in hybrid gel casters |
| Batteries | Two 50Ah M50 AGM MK batteries |
| Motors | 2 pole 222W pair |
| Controller | R-NET 90A |
| Charger | 6A off board |
| Total Weight | 350 to 385 lb |
The P335N is configured to order. Every option below is priced in your quote. Call us toll free at 1-888-233-5563 and we will walk through the choices with you and confirm current pricing and lead time.
Merits offers practical add ons fitted to the chair configuration, including a USB charger for phones and tablets, an oxygen tank holder, and a cup holder with mount. Ask us to include any of these on your quote so they arrive installed and positioned for your reach.
We sell the P335N on a quote basis so we can pair you with the right configuration and the best available price. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Most products in this range do not meet the strict medical device rules that Medicare and Medicaid use, so they rarely qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Some private plans will reimburse you outside of the Medicare framework. The best way to find out is to call your insurer and ask. If they say yes, we are happy to provide an invoice and proof of purchase so you can file for reimbursement.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Orders typically leave the warehouse within one to three business days. Once on the way, expect a transit time of around three to seven business days depending on your distance from the warehouse.
The stock status sits just under the product title near the top of this page. If it shows a lead time, the ship out window is that lead time plus the normal transit time above.
Yes. As soon as your order ships we email you a tracking link so you can follow it all the way to your door.
Merits backs the P335N with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Yes, returns are possible. Please read the full returns policy for the details.
Official Merits documents for the Axcel Narrow
Key safety notes. Respect the 300 lb weight capacity and the 7.5 degree rated gradient. Keep the anti tipper front wheels installed at all times. Use the supplied 6A off board charger and charge in a dry ventilated space. A rehab chair at this level should be fitted and programmed by a supplier working with your clinician so drive speeds and seating angles match your needs.
Daily driving runs through the R-NET joystick, which controls speed profiles, lighting and the powered seat functions. The two 50Ah MK AGM batteries charge overnight with the 6A off board charger through the joystick port, and the tool free rear battery compartment means a caregiver or technician can reach the batteries in seconds without wrenches.
Around the house the 22.5 inch width is the headline. It passes openings that stop 24 and 25 inch bases, and the front wheel drive geometry lets you nose square into a doorway and make the 90 degree turn on the spot. Outdoors the 14 inch drive tires, 9 inch rear casters and 3 inches of ground clearance handle thresholds, curb cuts and uneven yards.
For transport, plan around a powerbase that weighs 350 to 385 lb depending on configuration. It does not fold or disassemble for trunk loading, so move it in an accessible vehicle with a ramp or platform lift, or on a heavy rated exterior carrier. Occupied transit setups should be discussed with your supplier at order time.
The overall width is 22.5 inches, which Merits states makes it the first front wheel drive rehab power base this narrow. It fits doorways and hallways that block most 24 to 26 inch wide rehab chairs.
Yes. The Axcel Narrow is its own model, the P335N, with a slimmer 22.5 inch base, 14 inch drive wheels and its own spec sheet. The standard Axcel P335 shares the platform but is wider and adds power tilt options.
Merits rates the Axcel Narrow at up to 19 miles per charge using its two 50Ah MK AGM batteries. Real range varies with rider weight, terrain and temperature.
Power recline adjusts from 85 to 160 degrees with 6 inches of shear reduction, and a 12 inch power seat elevation module is available. Seating is built to order in 14 to 20 inch widths and depths.
Yes. The chair runs R-NET electronics with a 90 amp module, and Merits offers ASL alternative drive options so it can be set up for head array, sip and puff and other specialty inputs.
It carries HCPCS codes K0856 and K0861, the Group 3 single power option and multiple power option base codes, so it can qualify for funding when a clinician documents medical need. Ask us about the evaluation and paperwork process.
Yes, that is its main advantage over other narrow chairs. Front wheel drive 14 inch tires, independent hydraulic suspension, 9 inch rear casters and 3 inches of ground clearance let it handle grass, gravel and uneven pavement at up to 5.2 mph.
Total chair weight runs 350 to 385 lb depending on configuration. It transports in a ramp or lift equipped vehicle rather than folding into a trunk.
Merits Health Products has been building mobility equipment for more than three decades and runs its US operation out of Fort Myers, Florida. Unlike marketing brands that rebadge someone else's chairs, Merits manufactures its own power bases, which shows up in details like the hydraulic suspension and tool free battery bay on this chair. Avid is the Merits complex rehab line, developed with clinician input for users who need true positioning rather than a basic power chair, and the Axcel Narrow's 2024 Mobility Management Product Award signals the industry took notice. Parts availability and dealer support in the US are solid because the company has a long established national network.
