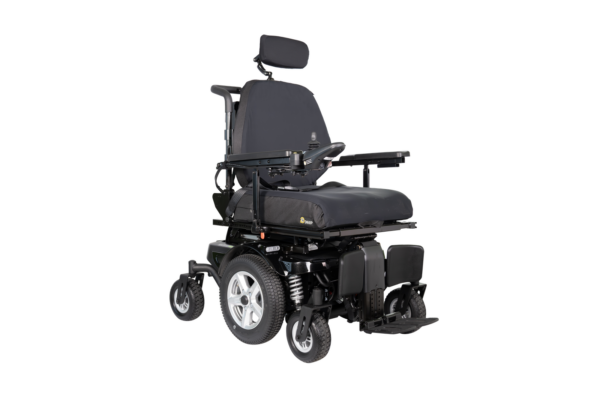

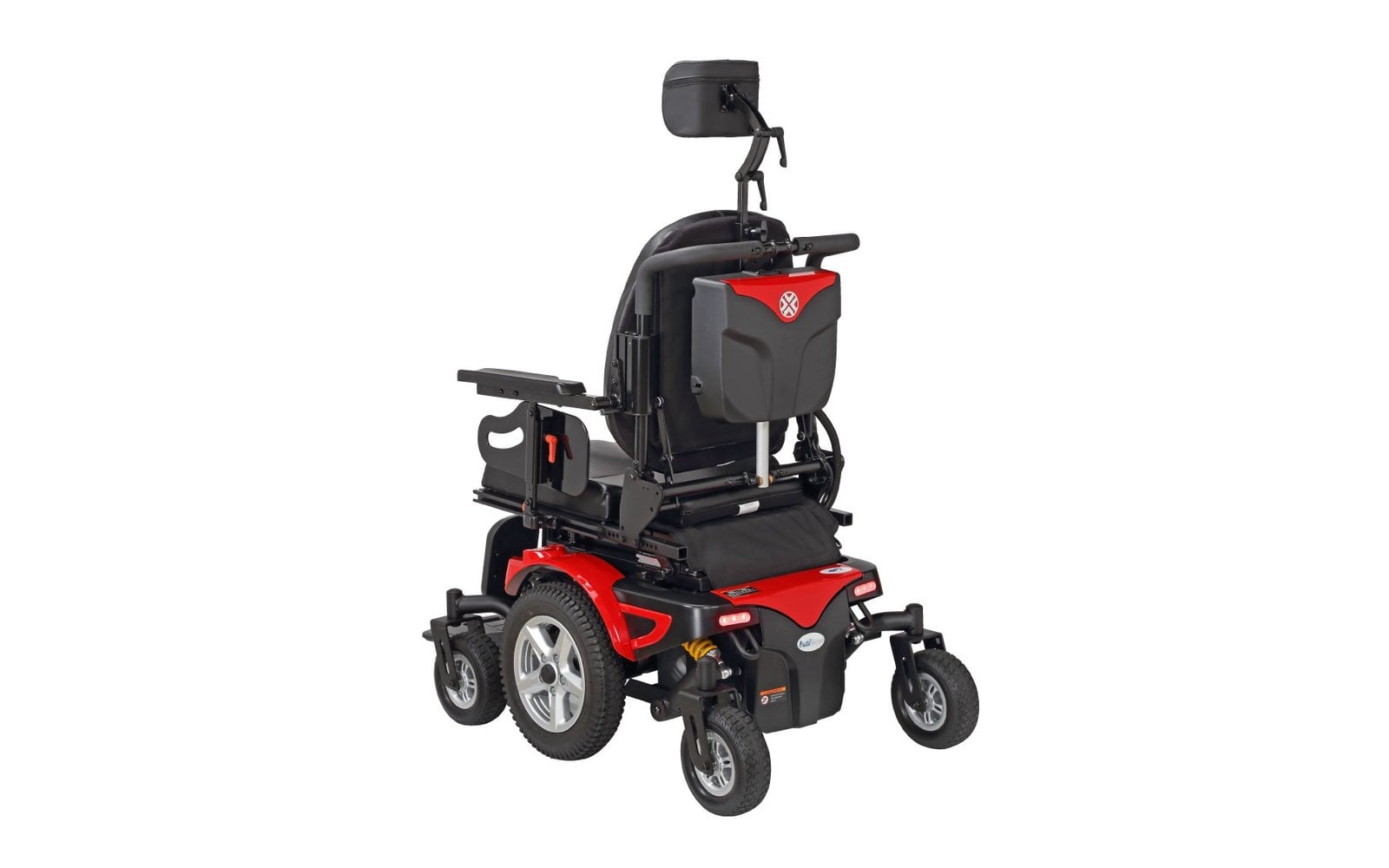

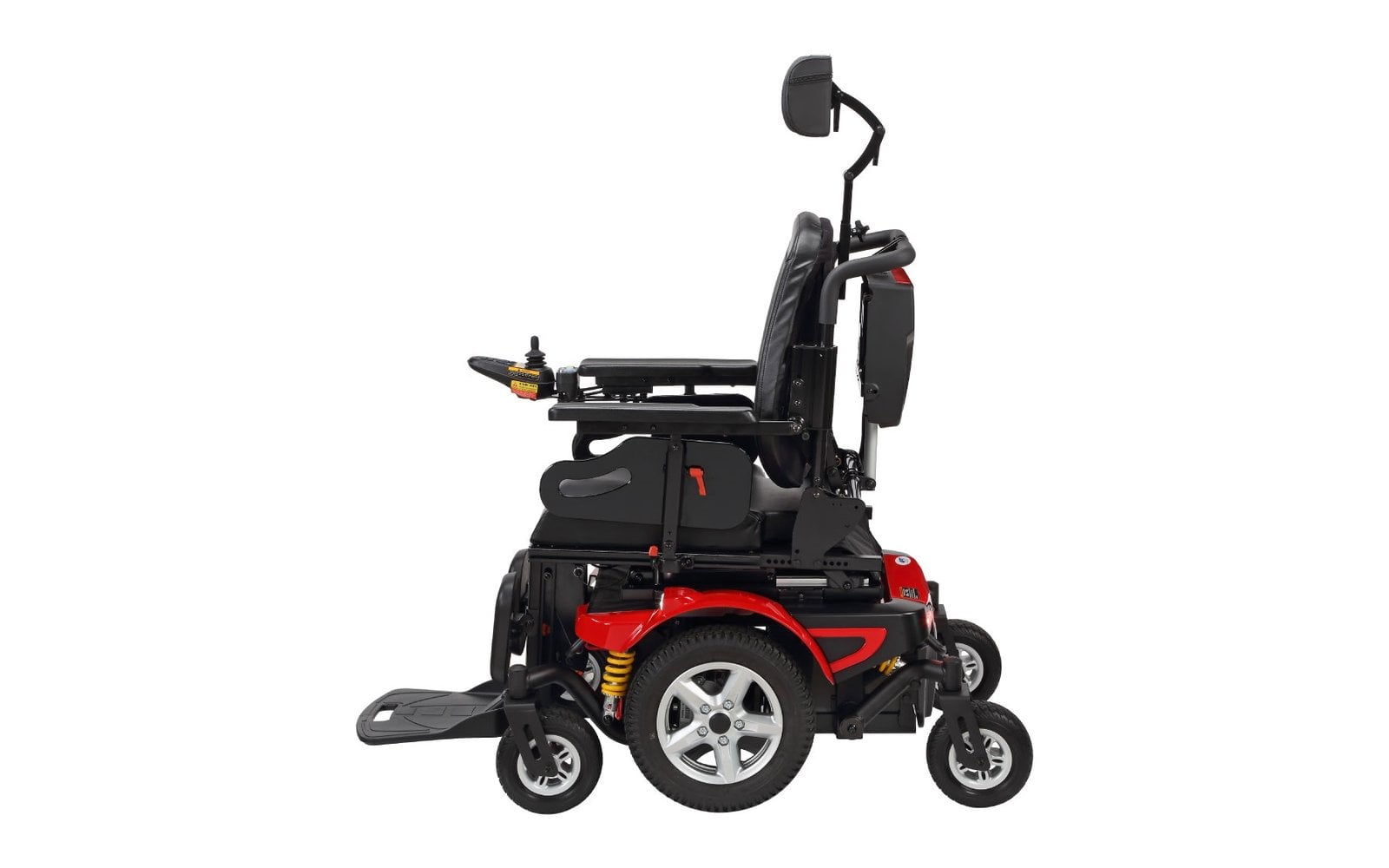

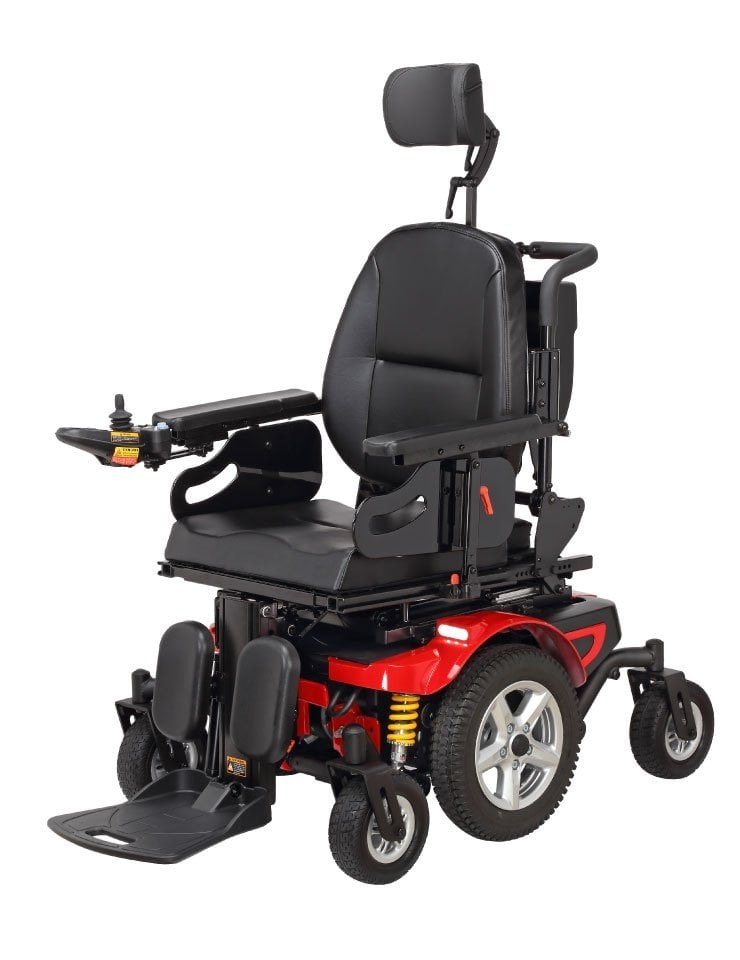

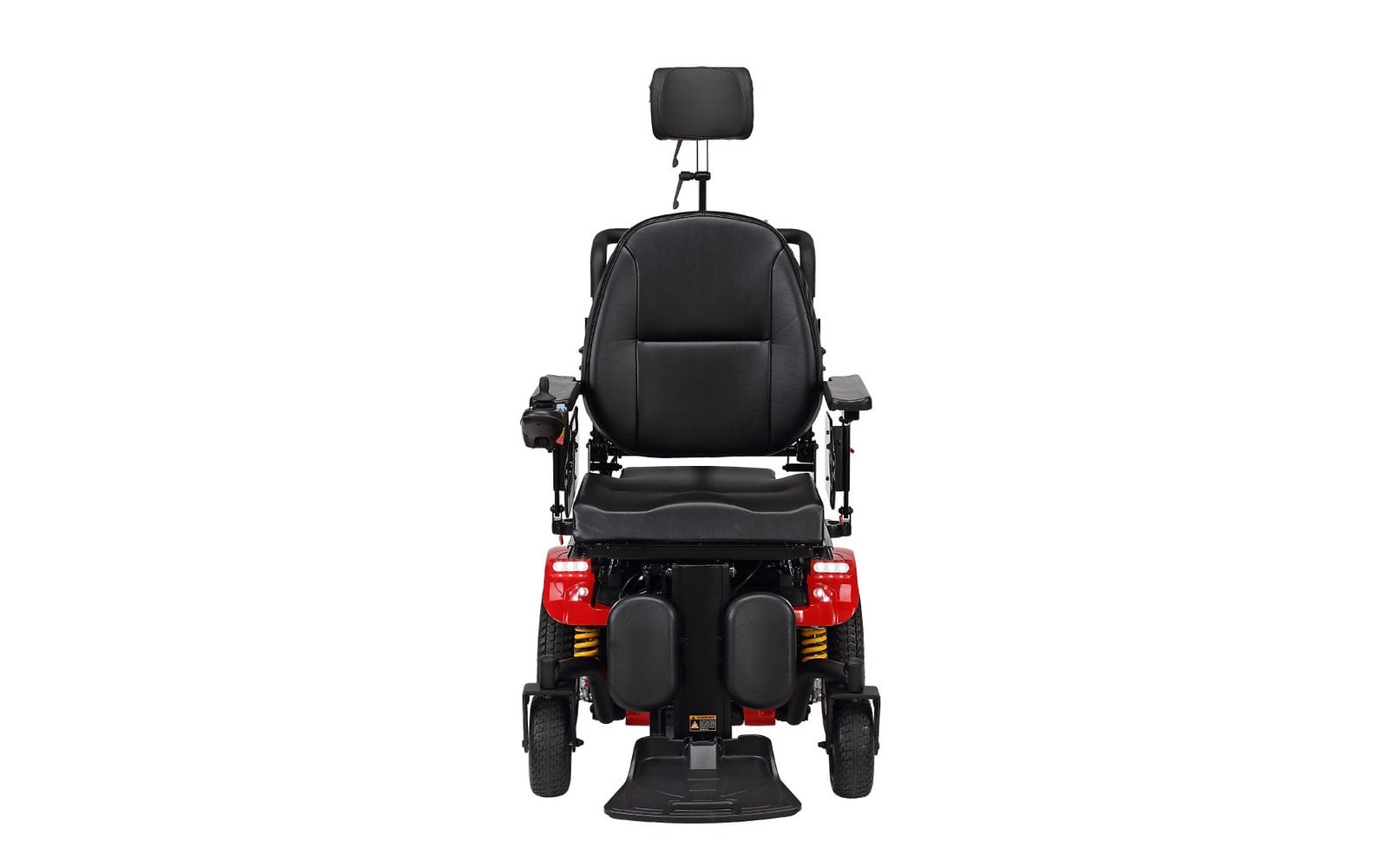

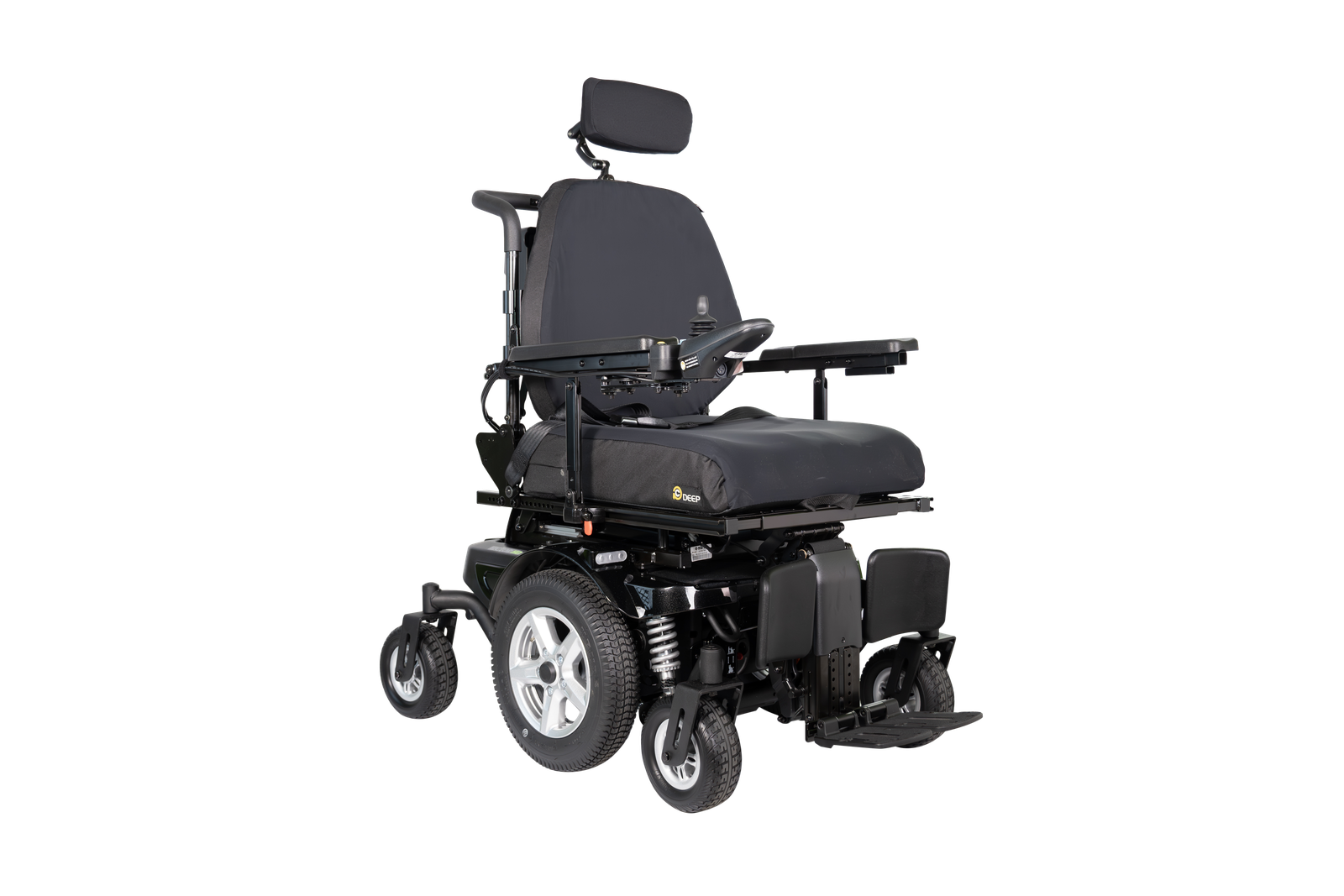

The Avid by Merits Vector HD P323 is the super heavy duty member of the Avid Rehab lineup. It is a complex rehab mid wheel drive power base engineered for riders up to 450 lb who need real positioning hardware rather than a basic captain seat chair. The powerbase carries HCPCS codes K0850 K0858 and K0862 and pairs dual in line 4 pole motors with full front and rear coil suspension so heavier riders keep traction and comfort over thresholds ramps and rough sidewalks.
Six wheels stay on the ground at all times. The 14 x 3 inch foam filled drive wheels sit directly under the rider with widened 8 x 3 inch casters front and rear for stability at capacity. Because the drive wheels are centered the Vector HD spins within a 27 inch turning radius which is remarkable agility for a 450 lb rated base and makes tight hallways bathrooms and elevators workable.
Seating is where the Vector HD separates itself from consumer heavy duty chairs. The rehab seat frame adjusts from 20 to 24 inches wide and 16 to 22 inches deep and it accepts power tilt up to 50 degrees power recline from 90 to 150 degrees a 12 inch power seat elevator and power elevating legrests. Pressure management options such as Deep contour cushions and Gel Ovations components can be specified when the chair is built.
Two 22NF MK batteries deliver up to 12.5 miles of range per charge and buyers choose between the simple PG VR2 controller or the expandable R-NET system for multi actuator control. Every Vector HD is configured to order so contact us for a quote built around your seating and funding requirements.
| Model | P323 Vector HD |
| HCPCS Codes | K0850 K0858 K0862 |
| Weight Capacity | 450 lb |
| Drivetrain | Mid wheel drive |
| Max Speed | 5 mph |
| Range Per Charge | Up to 12.5 miles |
| Seat Width | 20 to 24 inches |
| Seat Depth | 16 to 22 inches |
| Backrest Height | 18 to 28 inches |
| Seat to Floor Height | 18.5 to 19.5 inches |
| Optional Seat Elevation | 12 inches |
| Overall Size | 47 L x 25 W x 42 H inches |
| Turning Radius | 27 inches |
| Ground Clearance | 3 inches |
| Total Weight | 315 to 416 lb by configuration |
| Batteries | Two 22NF MK batteries 55Ah AGM or 51Ah gel |
| Motors | Dual in line 4 pole 200W |
| Controller | PG VR2 or R-NET |
| Wheels | 14 x 3 inch drive with 8 x 3 inch casters all foam filled |
| Color Options | Candy Apple Red, Metallic Royal Blue, Platinum Silver, Metallic Black |
The P323 Vector HD is configured to order. Every option below is priced in your quote. Call us toll free at 1-888-233-5563 and we will walk through the choices with you and confirm current pricing and lead time.
Merits offers accessories that mount to the Vector HD base depending on configuration.
We sell the P323 Vector HD on a quote basis so we can pair you with the right configuration and the best available price. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Most products in this range do not meet the strict medical device rules that Medicare and Medicaid use, so they rarely qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Some private plans will reimburse you outside of the Medicare framework. The best way to find out is to call your insurer and ask. If they say yes, we are happy to provide an invoice and proof of purchase so you can file for reimbursement.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Orders typically leave the warehouse within one to three business days. Once on the way, expect a transit time of around three to seven business days depending on your distance from the warehouse.
The stock status sits just under the product title near the top of this page. If it shows a lead time, the ship out window is that lead time plus the normal transit time above.
Yes. As soon as your order ships we email you a tracking link so you can follow it all the way to your door.
Merits backs the P323 Vector HD with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Yes, returns are possible. Please read the full returns policy for the details.
Official Merits documentation for the Vector HD P323
Key safety notes. Respect the 450 lb weight capacity and the 6 degree rated gradient. Drive with the seat lowered and upright when on slopes since tilt recline and elevation change the center of gravity. Foam filled tires cannot go flat but should be inspected for wear. Read the owner manual before first use and have a trained provider complete final seating adjustments.
Charging is simple. The included 6 amp off board charger plugs into the joystick or controller port and recharges the two 22NF MK batteries overnight. Charge after each day of use to protect battery life and expect up to 12.5 miles per full charge depending on rider weight terrain and seating functions used.
Daily driving happens through the joystick on either the VR2 or R-NET controller with speed dial adjustment down to indoor creep speeds. Power seat functions run from the joystick module or a dedicated toggle depending on configuration so riders can tilt recline or elevate without caregiver help.
The Vector HD is not a folding travel chair. Configured weight runs 315 to 416 lb so plan on a wheelchair accessible vehicle a platform lift or medical transport rather than trunk transport. At 25 inches wide it fits standard 32 inch doorways easily. Store and charge the chair indoors in a dry space and keep the batteries topped up during any long storage period.
The Vector HD P323 is rated for riders up to 450 lb. The base uses widened 8 x 3 inch casters and 14 x 3 inch drive wheels so stability holds up at full capacity.
The Vector HD carries HCPCS codes K0850 K0858 and K0862 which are complex rehab power wheelchair categories. Funding requires a clinical evaluation and supplier paperwork. We can point you in the right direction or quote a self pay build.

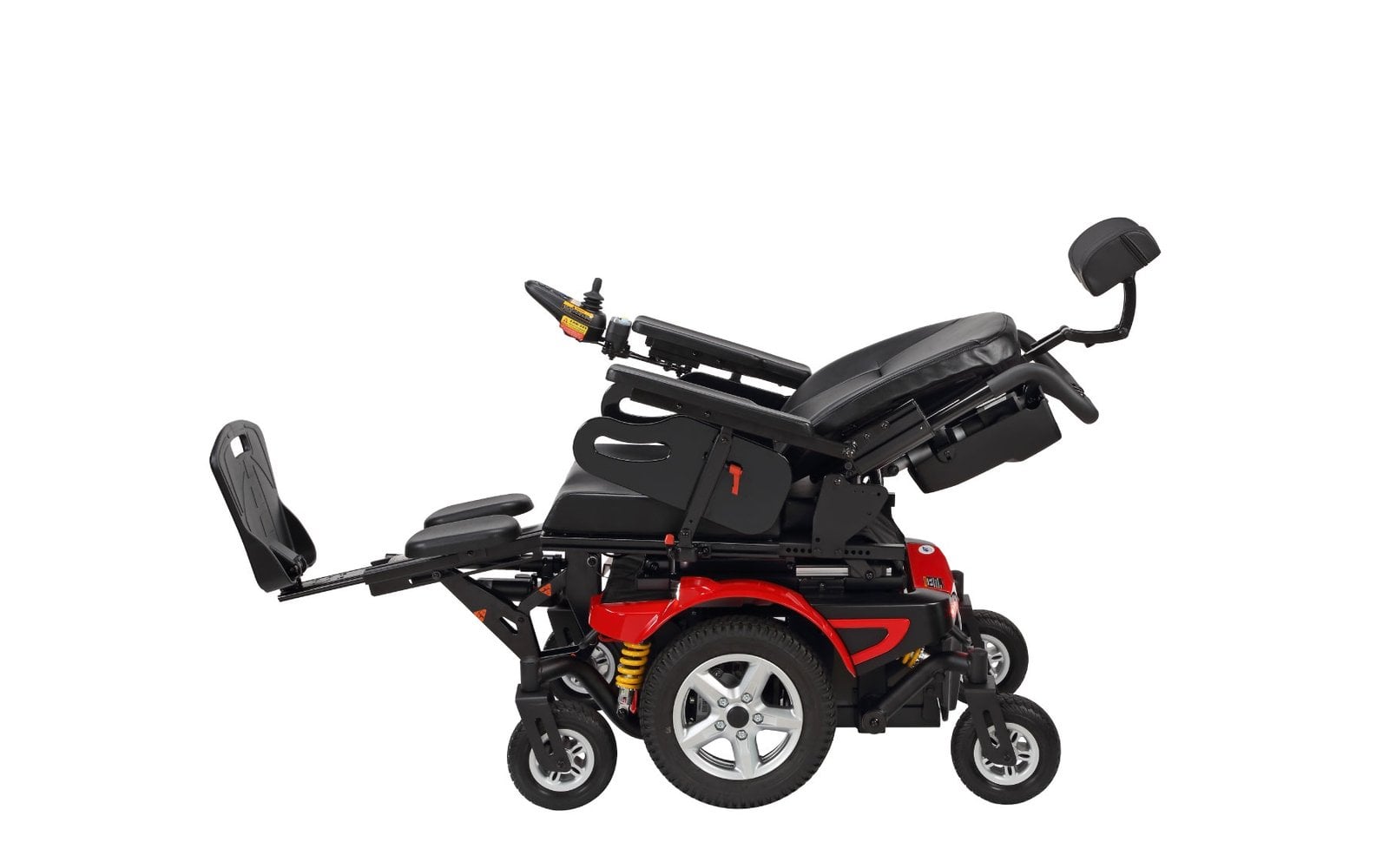

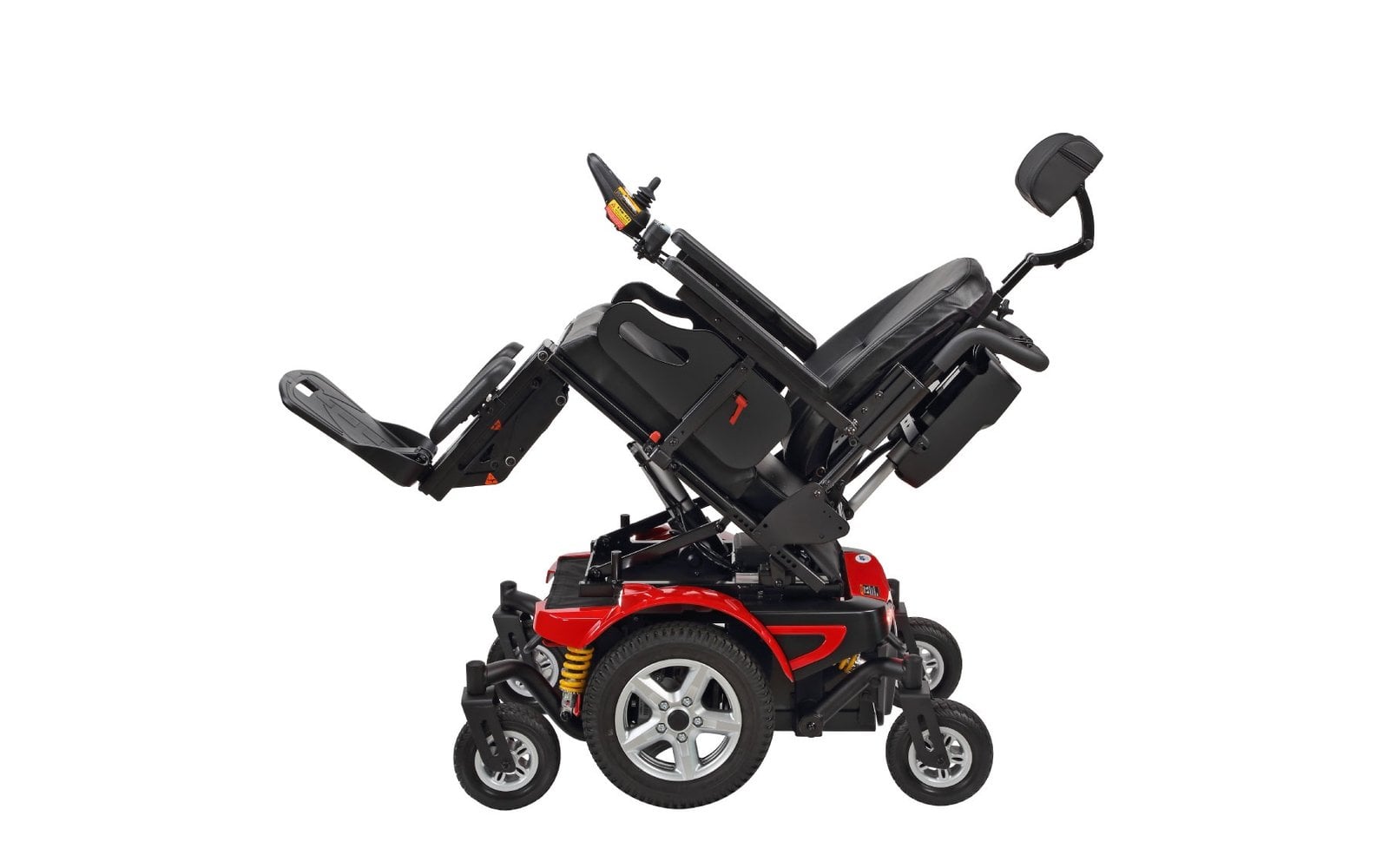

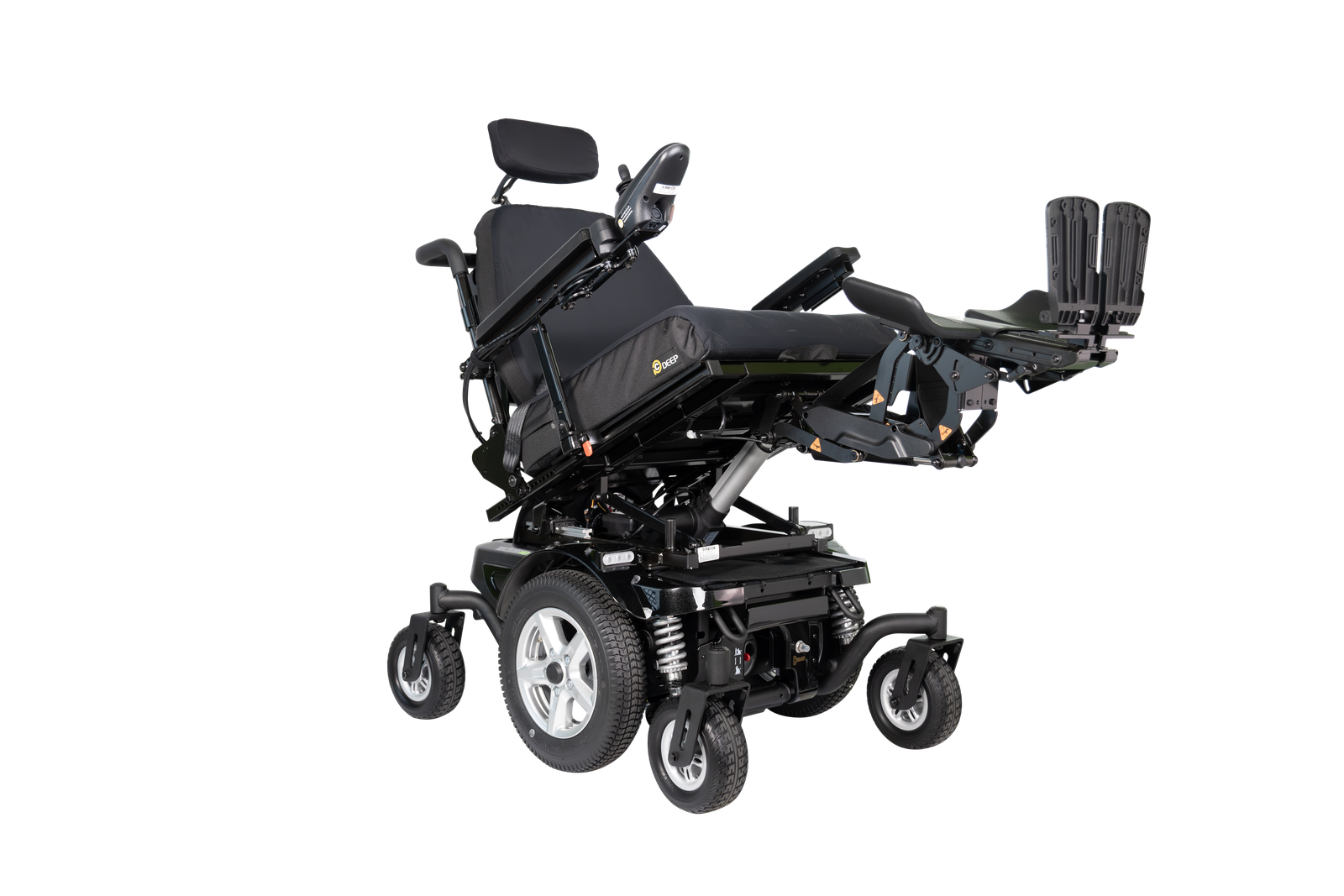

Power tilt up to 50 degrees is available and power recline from 90 to 150 degrees comes on power recline configurations. A 12 inch power seat elevator and elevating legrests can also be added. Each chair is configured to order.
The PG VR2 is a simple dependable joystick system suited to driving plus basic seat functions. The R-NET is an expandable system that manages multiple power seat actuators alternative drive controls and future upgrades. Riders with several power seating functions usually choose R-NET.
Two 22NF MK batteries deliver up to 12.5 miles per charge. Real range varies with rider weight terrain temperature and how often seat functions are used.
No. Configured weight runs 315 to 416 lb and the chair does not fold. Plan on a wheelchair accessible vehicle a platform lift or medical transport.
The rehab seat frame adjusts from 20 to 24 inches wide and 16 to 22 inches deep with backrest heights from 18 to 28 inches so your provider can dial in the fit.
Merits Health Products has been building mobility equipment for more than three decades and is one of the largest vertically integrated wheelchair and scooter manufacturers in the world. The company designs and manufactures its own power bases which keeps quality control in house and parts readily available. Its United States operation is headquartered in Fort Myers Florida with regional territory managers and a national dealer network so service and support stay close to home. Avid Rehab is the Merits division focused on complex rehab technology and the Vector HD P323 is its super heavy duty flagship pairing proven Merits drivetrain engineering with clinical seating options. Merits chairs are fitted with trusted component brands such as MK batteries and Penny and Giles electronics which are the same suppliers used by the biggest names in the industry.
