Merits Gemini Heavy Duty Power Wheelchair – P301

Original price was: $8,700.Current price is: $3,207.


Stock: See StockIn Stock
Stock status can change very rapidly - an item might come back in stock before we update this or might have sold out.

We highly recommend you call or chat with us for a 100% stock status.

Rear Soft Monster Storage Bag
Rear Soft Oxygen Tank Holder
Rear Soft Walker Holder
Rear Soft Cane and Crutch Holder
Rear Metal Basket
Metal Cane and Crutch Holder
Metal Walker Holder
Metal Oxygen Tank Holder
Product total
Options total
Grand total
Need help? Our mobility experts are here to help by call or chat


Quick Overview

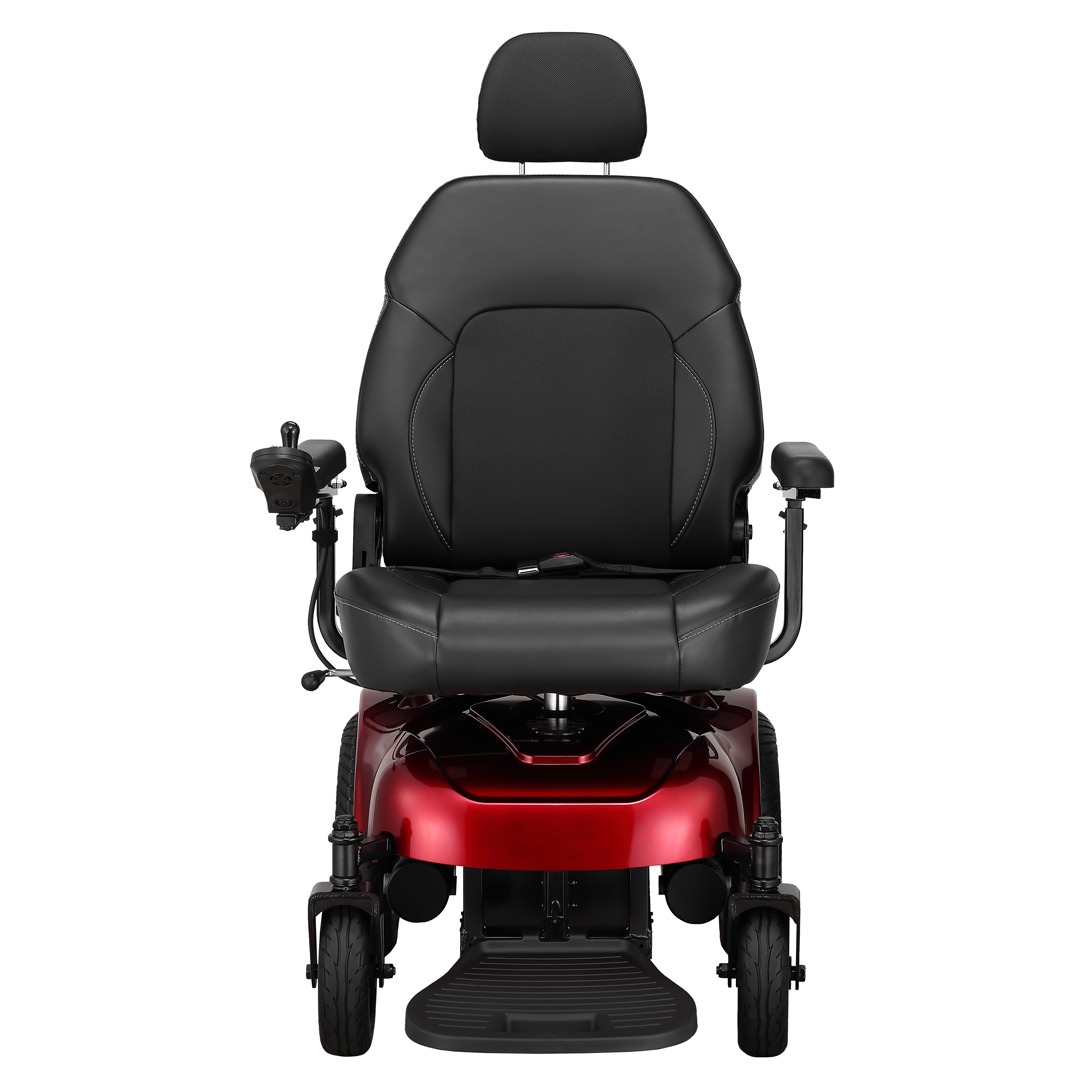

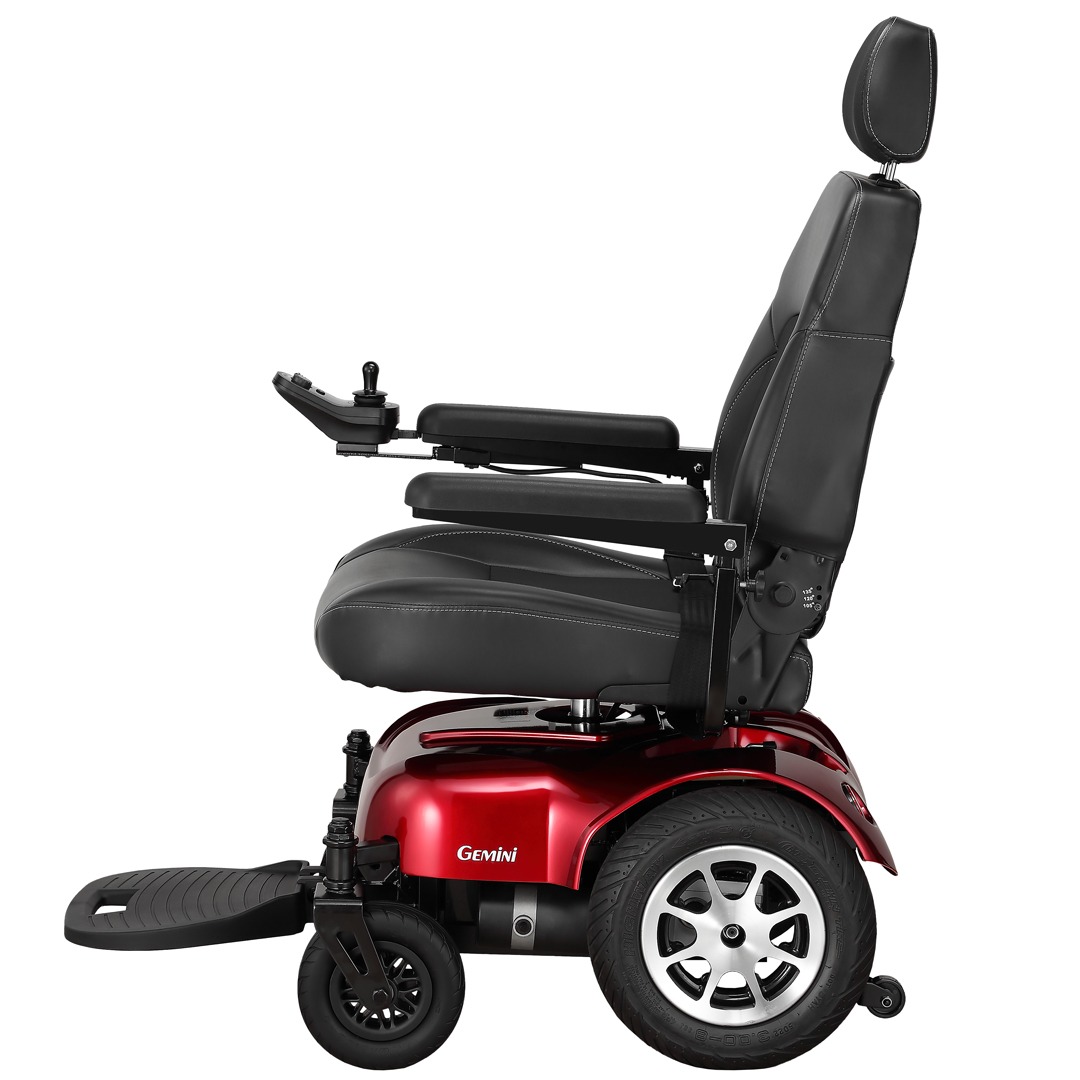

Merits Gemini Heavy Duty Power Wheelchair – P301

Key Features

  • 22" wide captain seat with reclining back
  • Optional power elevating seat
  • Top speed of 5 mph
  • 20-mile range on full charge
  • Supports up to 450 lbs
  • 21" turning radius and 4" ground clearance
  • Suitable for indoor and outdoor use

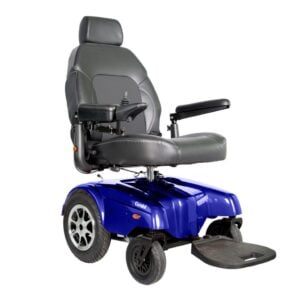

  • Available in Red and Blue
  • Removable anti-tippers
  • Standard or White Glove delivery options
  • In-home service contract
  • 14" aluminum cast drive wheels
  Introducing the Merits Health Gemini P301, a standout heavy-duty power wheelchair designed for comfort, performance, and adaptability. Whether you're navigating the living room or exploring the town, the Gemini's excellent maneuverability ensures a smooth ride.

Comfort and Seating

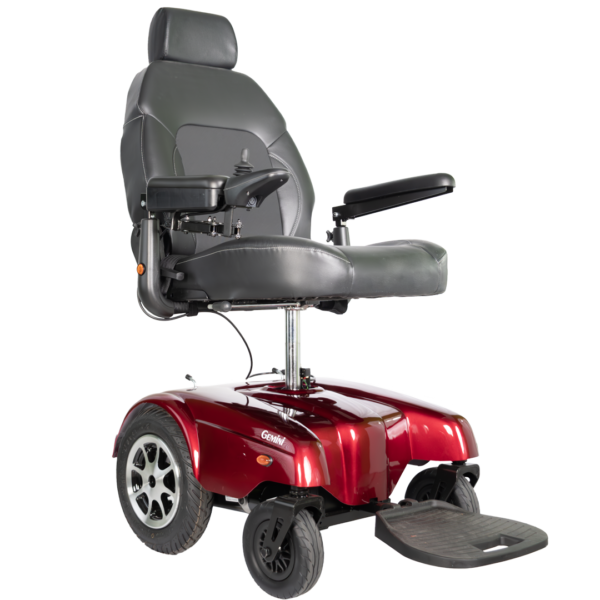

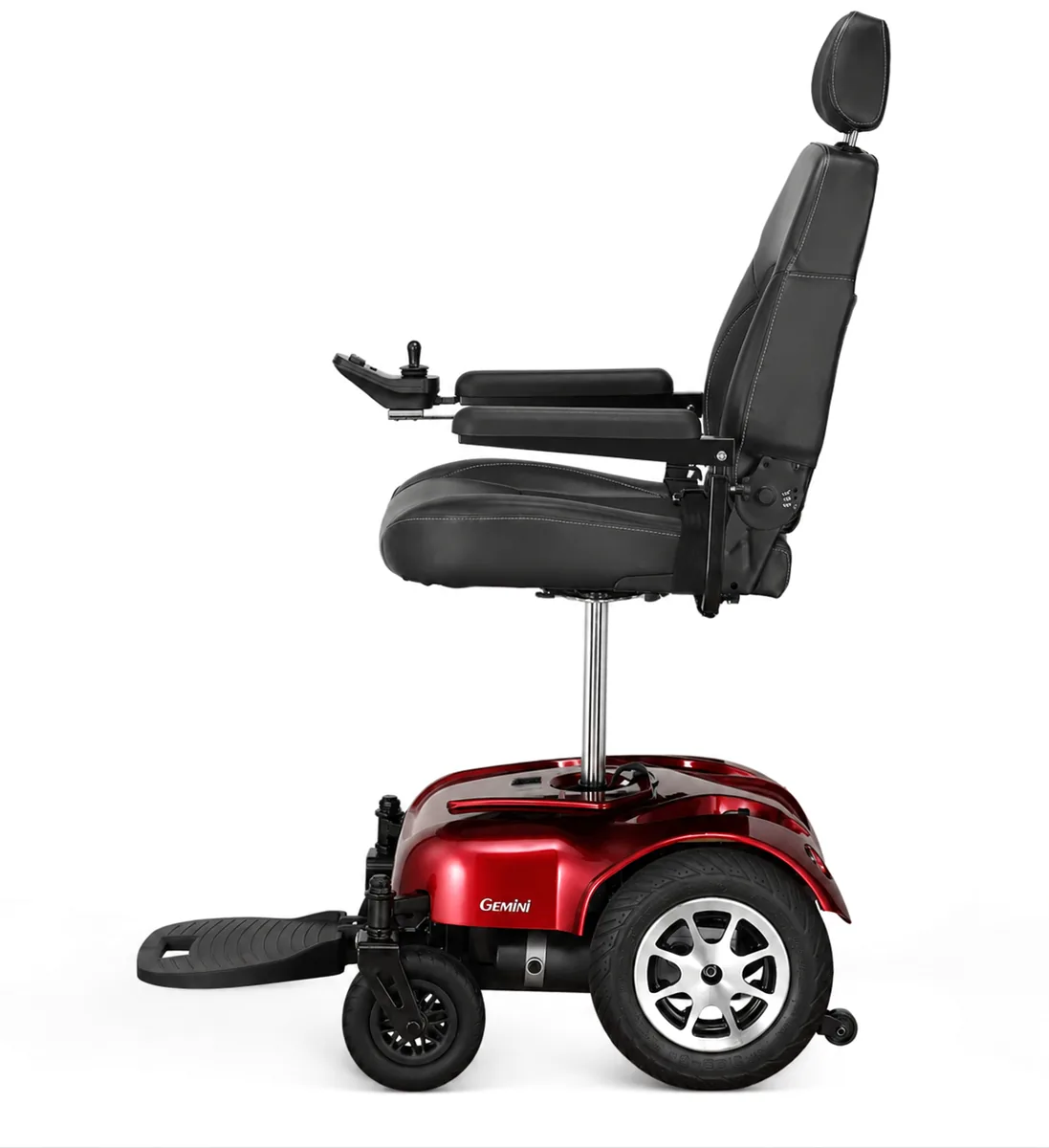

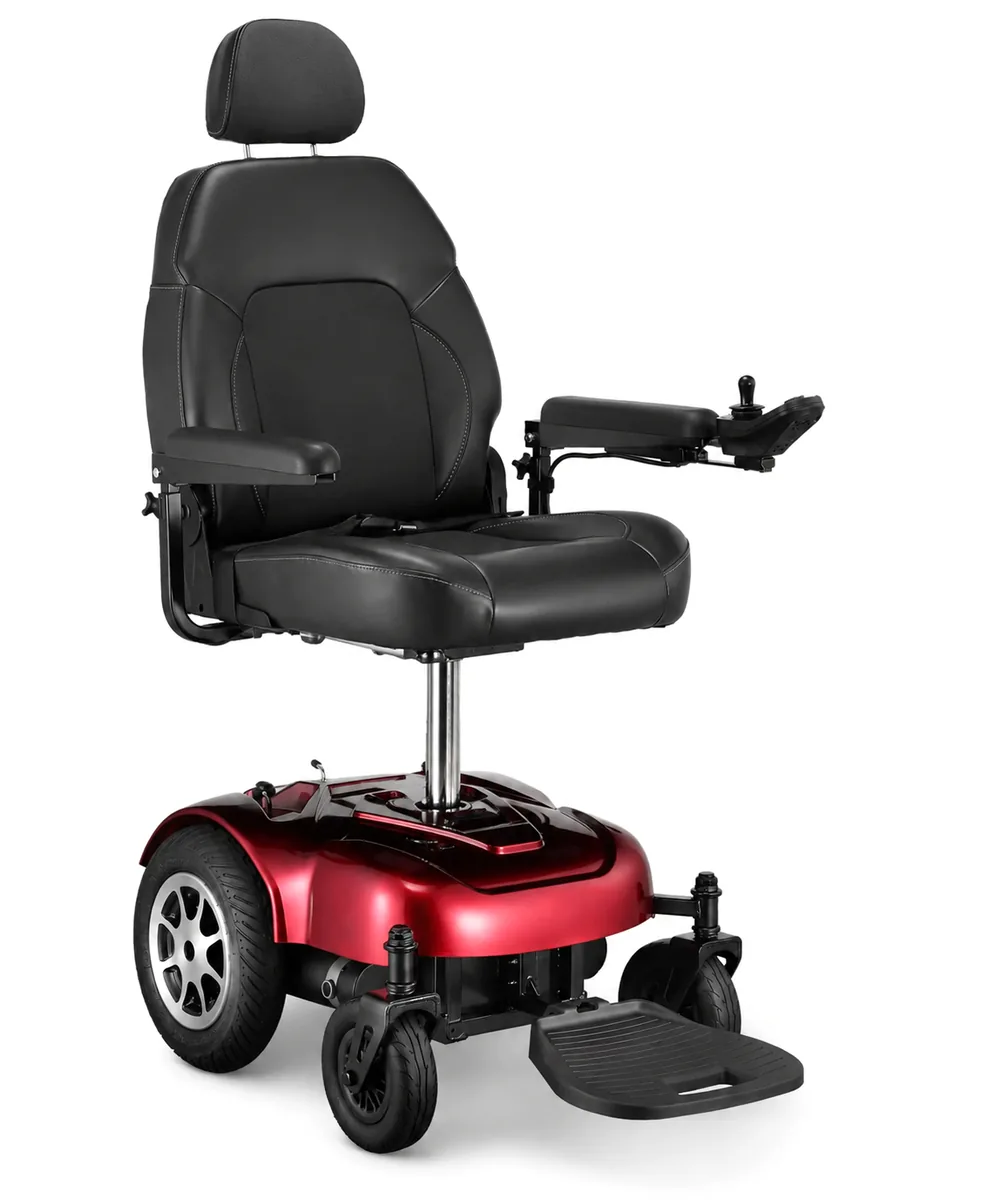

The Gemini P301 provides a spacious 22" wide captain seat, complete with a reclining back and adjustable headrest. The optional power elevating seat delivers added comfort for those needing a more tailored seating arrangement.

Performance and Speed

With a top speed of 5 mph and a 20-mile range on a full charge, the Gemini promises excellent performance. The heavy-duty weight capacity of 450 lbs and the 14" aluminum cast drive wheels ensure stability and reliability.

Indoor & Outdoor Usability

The P301 is great for both inside and outside use. It can turn around in a small space, only 21 inches across, so it's easy to move around things inside. The tires are filled with foam, so it's smooth to use indoors, but they're also tough enough for going outside. Whether you're at home or exploring outside, this chair can handle it.

Options and Accessories

You can make the Merits Health Gemini chair even better by adding things like legrests that lift up or footplates that can be adjusted. And if you want the chair to match your favorite color, you can choose from options like Red and Blue. These choices let you change the chair to make it just right for you.

Safety and Compliance

Safety is the most important thing with the Gemini chair. It has special parts that can be taken off to prevent tipping over, and a smart controller that helps control the chair easily. These features follow the rules and standards for safety in the industry, so you can feel calm and secure when using this chair.

Assembly and Shipping Information

The P301 Gemini comes with standard curbside delivery, but upgrading to the White Glove option ensures assistance with assembly. Expect delivery in 5-7 business days, with White Glove adding 3-5 days.

Warranty and Support

Rest easy with our in-home service contract and detailed warranty. Find user and service manuals online for all your needs. Take control of your mobility with the affordable Merits Health Gemini P301 heavy-duty power wheelchair. Click 'Add to Cart' and experience the freedom and comfort that's been tailored just for you!   Get the Merits Health Gemini P301 heavy-duty power wheelchair today and make moving around easier and more comfortable. With options to fit your style and needs, it's perfect for both indoors and outdoors. Enjoy peace of mind with safety features and a great warranty. Click 'Add to Cart' now and take the first step towards a more independent and enjoyable life!



Top Speed 5 mph
Range per Charge 20 miles
Ground Clearance 4"
Overall Width 24"
Overall Length 41"
Overall Height 45"
Seat Options Reclining Back Power Elevating Seat, Captain's Seat
Seat Widths 22''
Seat Depths 22''
Back Height 20''
Seat Height 22'' to 24''
Maximum Seat to Floor Height 24''
Power Elevating Seat Optional Upgrade
Tire Type Foam Filled
Drive Wheel Size 14"
Caster Size 9"
Caster Type Solid
Turning Radius 21"
Batteries 12V/22NF 50Ah x 2 pcs SLA
Batteries Included Yes
Battery Charger Type 5A Off Board
Controller Type Dynamic Shark 60A/PG VR2 60A
Brake Intelligent, Regenerative, Electromagnetic Brakes
Motor Size DC 24V, 240W
Maximum Incline Rating 12° (21%) 350 lbs | 10° (18%) 450 lbs
Drive Type: Rear Wheel Drive
Disassembles Yes
Armrest Options Height & Width Adjustable
Legrest Options Footplate & Upgradable Elevating Legrests
Weight Capacity 350 lbs | 450 lbs
Base Weight 126 lbs
Standard Seat Weight 42 lbs
Battery Pack Weight 74 lbs
Suspension Yes
Product Weight 242 lbs
Shipping Weight 279 lbs
Shipping Box Length 42"
Shipping Box Width 27"
Shipping Box Height 25"
Warranty on Batteries 6 Month Limited
Warranty on Electronics 1 Year Limited
Warranty on Motor 1 Year Limited
Warranty on Structure 5 Year Limited
