  • 500 lbCapacity
  • 120 lbWeight

Versahaul Vehicle Extra Large Heavy Duty Manual Carrier for Mobility Scooters

  • AvailabilityStock status can change very rapidly. An item might come back in stock before we update this or might have sold out. We highly recommend you call or chat with us for a 100% stock status.
  • BrandVersahaul
  • ModelVH-MS XL
$1,644Was $1,900Save $256

Free shippingNo sales tax added

  • Made in USA
  • Ships in 1 to 2 Days
  • Pay Over Time
Ratings as of Nov 2026

Specifications

Lifting
Inner length of carrier tray58 3/8"
Length of ramp61"
Pin hole to tray edge (folded)4.25"
Carrying capacity unit500 lbs.
Size & Build
Width of carrier tray33"
Length of carrier tray60"
Width of ramp32 1/2"
Inner width of carrier tray32 3/4"
Height of carrier border4"
Approx. shipping wt120 lbs.

Overview

Versahaul extra large manual scooter carrier on a pickup truck with a red scooter loaded, side view
FeaturesSpecificationsWhat's Included
  • 61 in. center folding ramp
  • Ramp easily lock into a folded upright position with spring pull locks
  • Ramp folds into a flat position when not in use
  • Ramp can be removed
  • Carrier tilts up when not in use.
  • Carrier comes standard with a class III/IV hitch insert.
  • 13 slots for tie down hooks
  • Tough powder coat finish
  • Tray has a 58.375 in. x 32.75 in. of carrying area
  • Model Number: VH-MS XL
  • Description: XL Mobility Scooter carrier
  • Approx. Shipping Wt.: 120 lbs.
  • Carrying Capacity Unit: 500 lbs.
  • Length of carrier tray (inner): 58.375 in.
  • Width of carrier tray (inner): 32.75 in.
  • Height of carrier tray: 4 in.
  • Pin hole to tray edge (folded): 4.25 in.
  • Length of ramp: 61 in.
  • Width of ramp: 32.5 in.
  • VH-MS XL Instruction Booklet
  • Anti-tilt locking device
  • Carrier tray
  • Center folding ramp
  • Ramp bracket
  • Class III stinger sleeve (2 in)
  • Safety lanyard

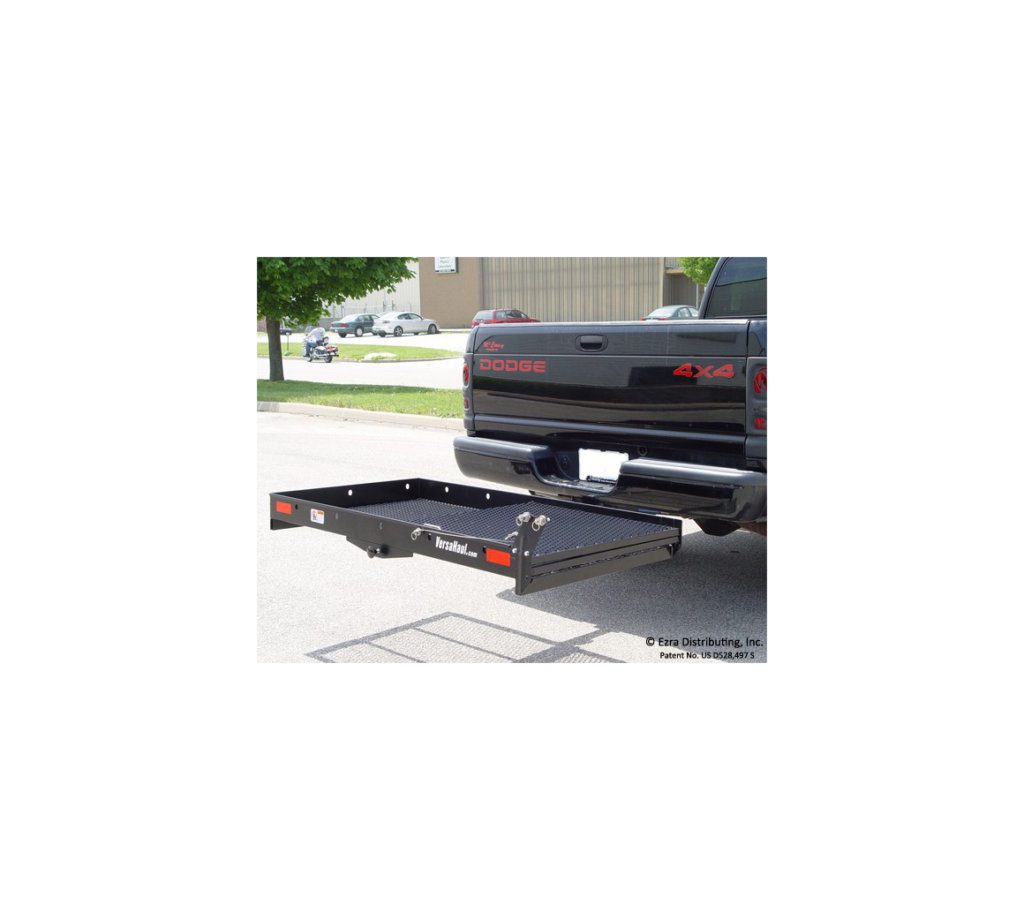

  • Versahaul extra large manual scooter carrier, empty hitch mounted carrier on a pickup truck, side view

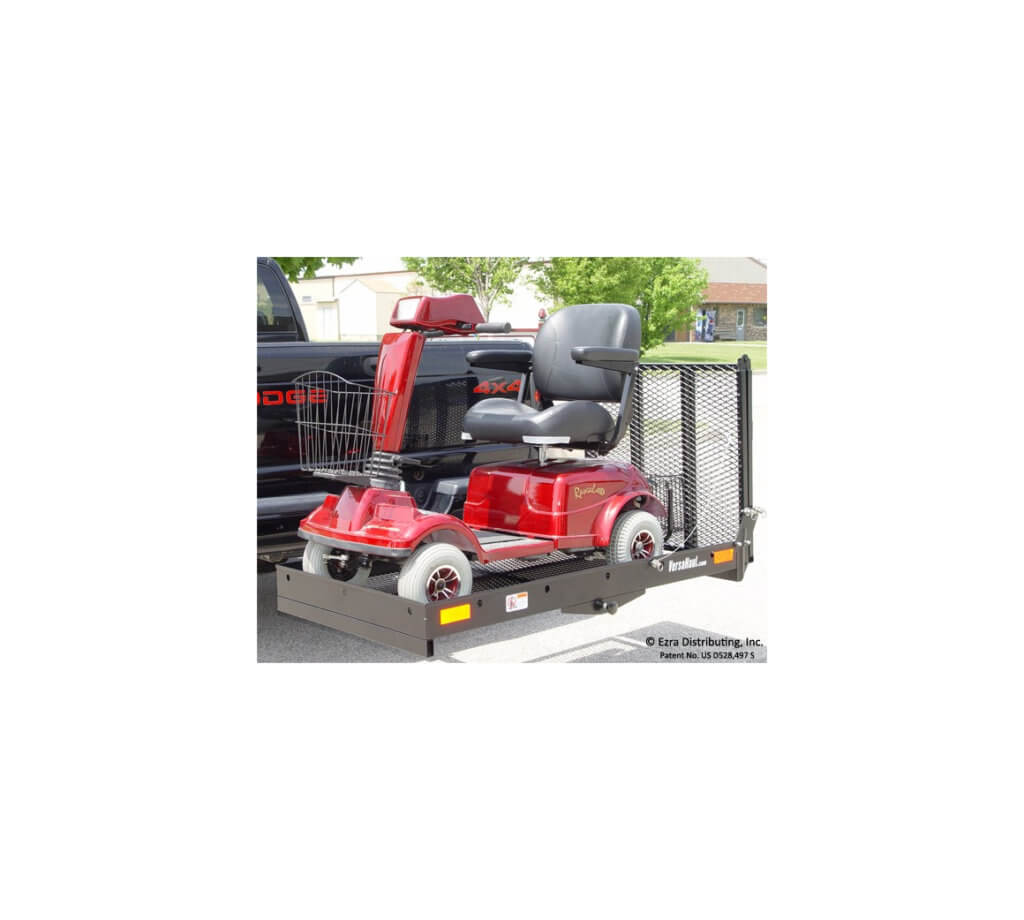

  • Versahaul extra large manual scooter carrier, red scooter with a front basket loaded on the platform

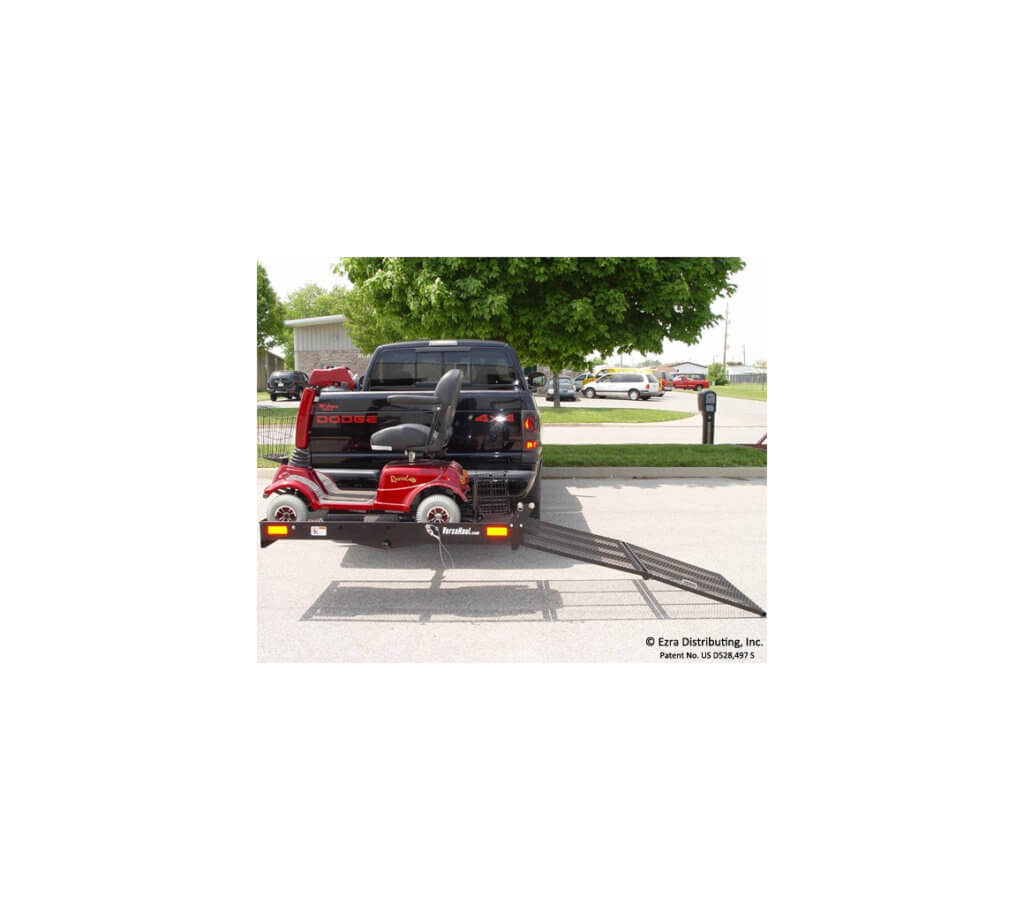

  • Versahaul extra large manual scooter carrier, red scooter loaded with the ramp lowered behind a pickup truck

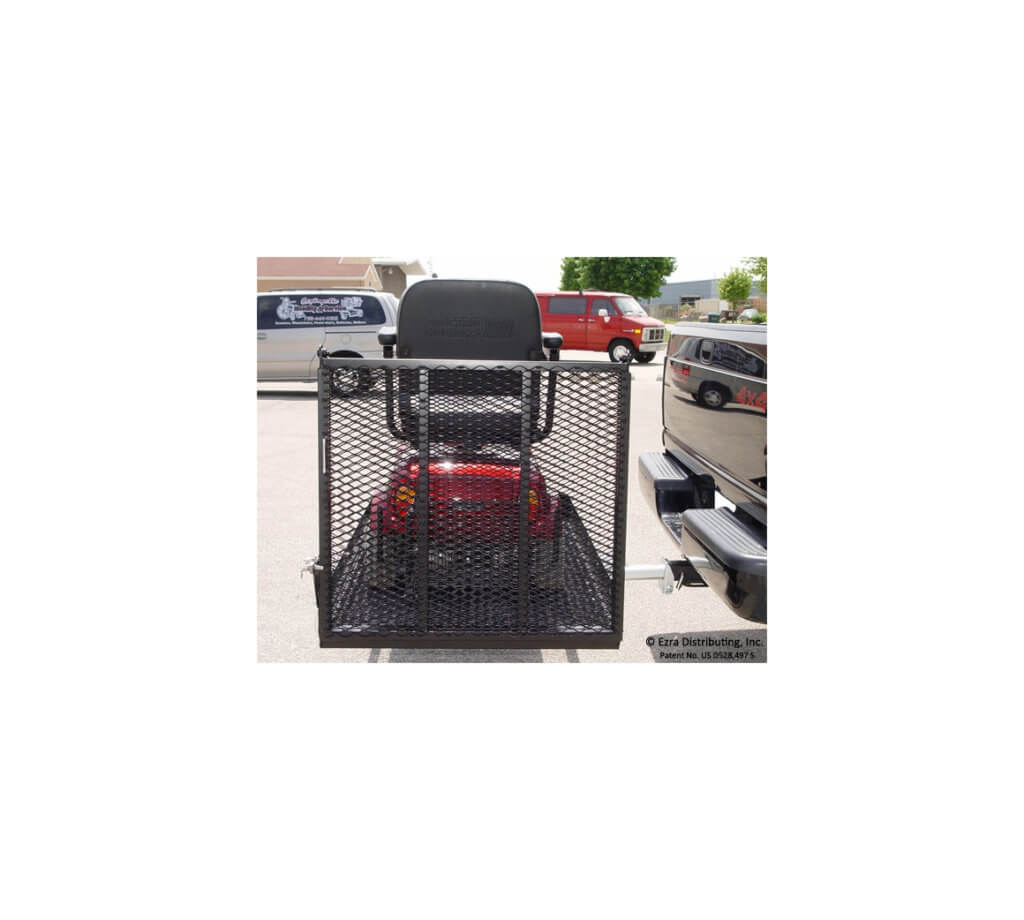

  • Versahaul extra large manual scooter carrier, rear view of a red scooter behind the raised ramp gate
  • Versahaul extra large manual scooter carrier, top view of the empty platform with the ramp folded flat

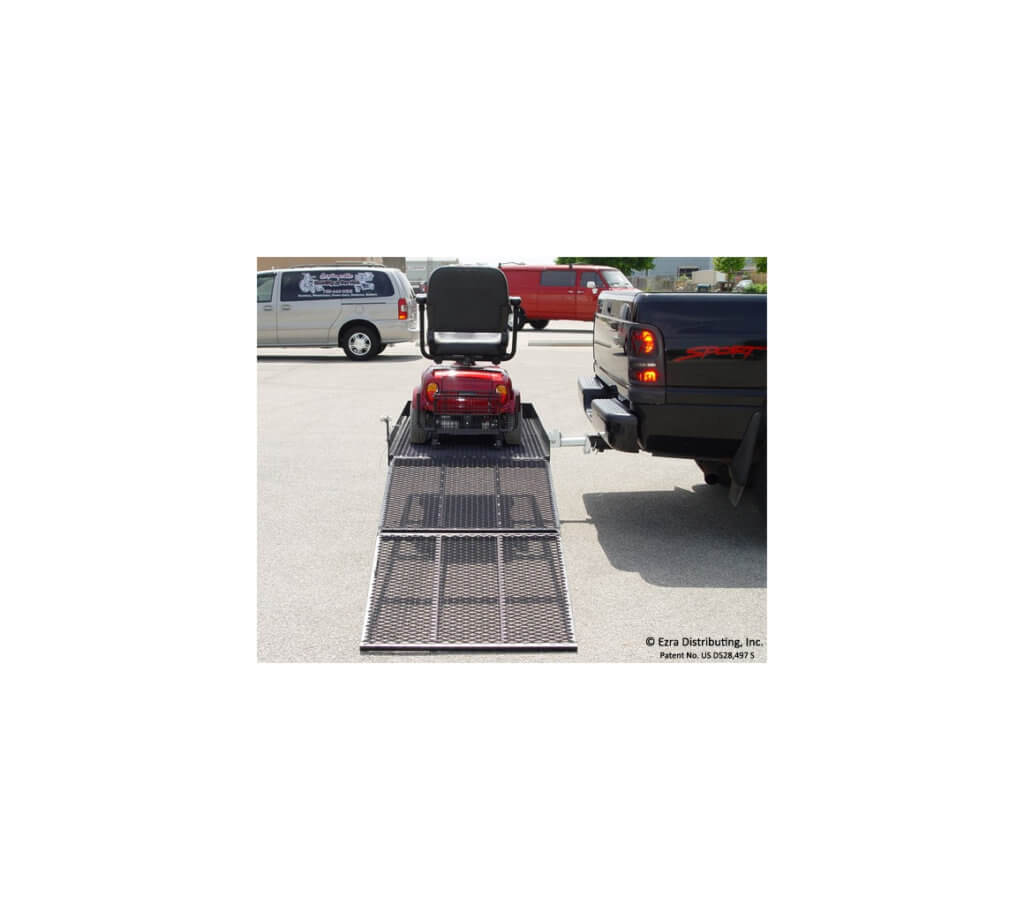

  • Versahaul extra large manual scooter carrier, rear view of a scooter on the platform with the ramp extended

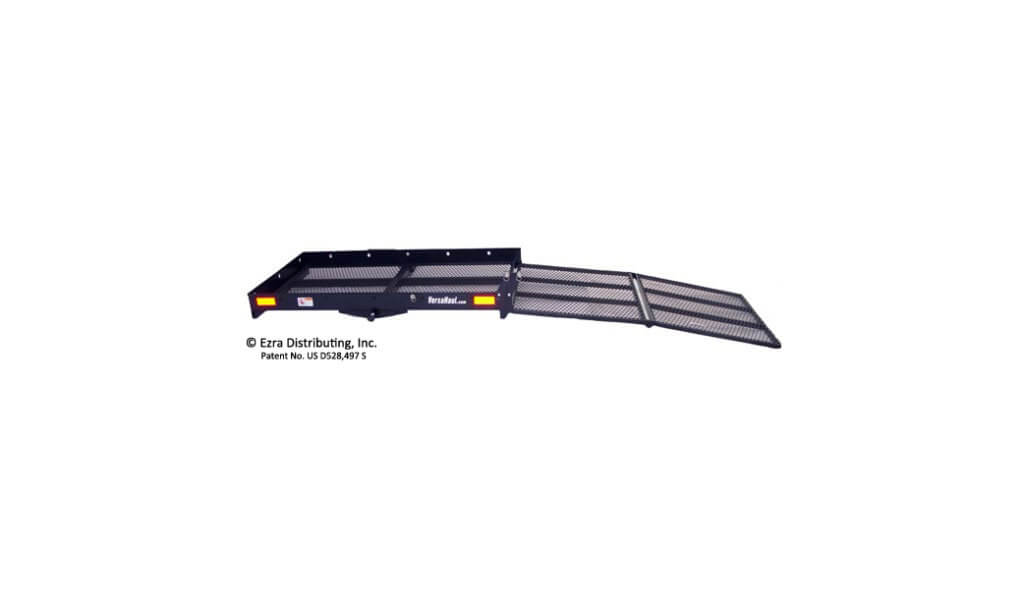

  • Versahaul extra large manual scooter carrier, side view with the ramp extended on a white background
  • Versahaul extra large manual scooter carrier, empty platform with the ramp gate raised
  • Versahaul extra large manual scooter carrier, side view with the ramp gate raised and hitch shank

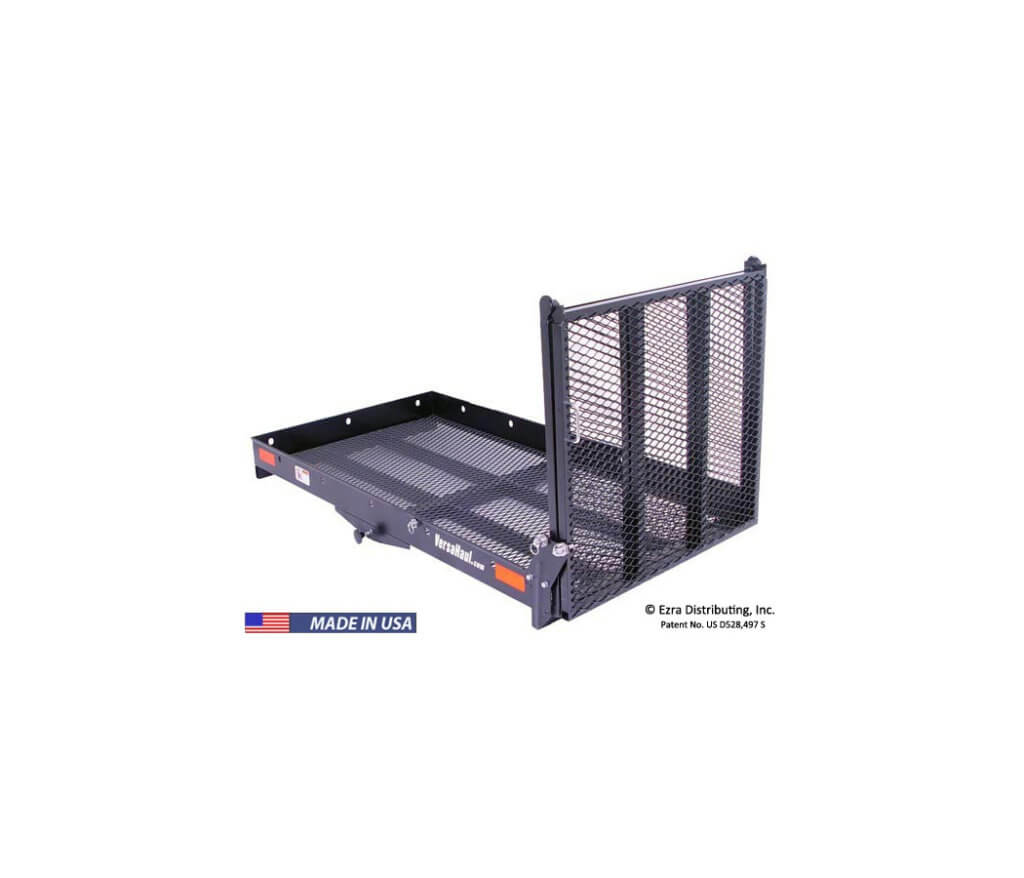

  • Versahaul extra large manual scooter carrier, angled view of the platform and raised ramp with Made in USA badge

1 of 10

Video

Heavy Duty Mobility, personally here for you

Meet the team that helps you choose, keeps you posted on delivery and picks up the phone after you buy.

A boxed scooter on a pallet at the curb, lowered from a truck

Shipping

  • 1 to 2 daysleaves the warehouse
  • Freecurbside delivery
  • Check firstthen sign
A smiling woman talking on the phone at her kitchen table

Warranty

How long does the warranty last for?

This product is covered by a one-year warranty from the manufacturer. Please contact us for further details.

What can I do after the warranty period? Can I get spare parts for the Versahaul Carrier? Who repairs these and where?

After the warranty period, you are still welcome to contact us at any time.

Parts are available through us or the manufacturer, though you will be charged for these, it might take significant time, and we can't guarantee Versahaul will have the part you need.

If you need someone to install parts or for other labor services, local technicians are available throughout the contiguous USA, at your cost.

Contact us for help finding a tech, or for more details.

Warranty policy

Why HDM

Talk to a real expert1-888-233-5563

Real people answer, business hours and weekends. If the line is busy, we call you back.

  • We know the makers

    Direct relationships with the makers speed up warranty and technical answers.

  • We stay with you after the sale

    Phone help first, and a technician if a shipping or product issue needs one.

  • A range we would buy ourselves

    Only heavy duty models we would recommend.

  • Honest financing

    Pay over time with Klarna, upfront about interest.

Documents

How much weight can the Versahaul XL carrier hold?

It is rated to carry 500 lb. The carrier itself weighs about 120 lb, so your hitch carries the carrier plus your scooter. Compare that total with the tongue weight on your hitch label and in your vehicle manual before you buy.

What hitch does the Versahaul XL need?

It comes with a Class III/IV hitch insert and a 2 in Class III stinger sleeve, so it is made for a 2 in receiver. As a general guide, Class III hitches use a 2 in receiver rated at 500 lb or more of tongue weight, but your vehicle and hitch labels set the real limit.

How big is the Versahaul XL tray?

The inside of the tray measures 58 3/8 in long by 32 3/4 in wide, inside a 4 in border. Outside, the tray is 60 in long and 33 in wide. Measure your scooter at its longest and widest points, including the tiller and any baskets, to confirm it fits inside the border.

How do you load a scooter onto the Versahaul XL?

A 61 in long center folding ramp, 32 1/2 in wide, leads up to the tray. When you are done, the ramp locks in a folded upright position with spring pull locks, folds flat when not in use, and can be removed. The tray has 13 slots for tie down hooks to secure the scooter.

Can the Versahaul XL fold up when it is empty?

Yes. The carrier tilts up when not in use, and the ramp locks folded upright or lies flat. An anti-tilt locking device and a safety lanyard are included, and the finish is a tough powder coat.

What comes with the Versahaul XL carrier?

The box includes these parts.

  • Carrier tray and center folding ramp
  • Ramp bracket and anti-tilt locking device
  • Class III stinger sleeve, 2 in
  • Safety lanyard
  • Instruction booklet
Will Medicare pay for a scooter carrier?

Usually not. We do not work with Medicare or bill private insurance directly. As a general rule, Medicare Part B covers medical equipment only when it is ordered for use in the home, so vehicle carriers are generally not covered. We can provide an invoice for a claim with your own plan. Eligible veterans can ask their VA office about the Automobile Adaptive Equipment program, which needs prior VA approval.

How is my lift delivered?

Delivery to your curb is free. Check the packaging and the lift before you sign for it, and call 1-888-233-5563 if anything looks wrong.

Can I pay over time?

Yes. Choose Klarna at checkout to pay over time. See how financing works.

Can I talk to someone before I buy?

Yes. Call 1-888-233-5563. Real people answer, business hours and weekends.
