4.8
“This chair is a game changer for me.”
I have suffered with leg issues for a while and struggle to walk long distances, so this scooter has been a blessing to rely on daily.
FloydCharlotte, North Carolina
- 32 miRange
- 8 mphTop speed
- 500 lbCapacity
Merits Pioneer 9 Heavy Duty Mobility Scooter 3-Wheel S331
- AvailabilityStock status can change very rapidly. An item might come back in stock before we update this or might have sold out. We highly recommend you call or chat with us for a 100% stock status.
- BrandMerits
- ModelPioneer 9
$3,539Was $4,424Save $885
Free shippingNo sales tax added
Up to 3 Year Service
Ships from Florida
Ships in 1 to 2 Days
Free Curbside Delivery
We’ll beat any verified price
Ratings as of Oct 2026
Options & Upgrades
Specifications
This scooter has a weight capacity of 500 lbs, a top speed of 8 mph and a range of up to 32 miles per charge. It is 49 in long, 27 in wide and 47 in high. It weighs 249 lbs.
| Performance | |
|---|---|
| Weight capacity | 500 lbs |
| Top speed | 8 mph |
| Range | Up to 32 miles |
| Max incline | 12° (21%) |
| Turning radius | 50" |
| Motor | DC 24V, 400W |
| Controller | Dynamic Rhino 160 |
| Battery | Two 12V Group 24, 70Ah to 80Ah |
| Charger | 6A off-board |
| Brakes | Intelligent, regenerative, electromagnetic |
| Frame warranty | 1 year |
| Electronics warranty | 1 year |
| Motor and brakes warranty | 1 year |
| Battery warranty | 1 year |
| Size & Seat | |
|---|---|
| Overall length | 49" |
| Overall width | 27" |
| Overall height | 47" |
| Seat width | 22" |
| Seat depth | 20" |
| Seat to floor height | 16" to 19" |
| Seat to ground height | 25" to 28" |
| Backrest height | 22" |
| Seat weight | 60 lbs |
| Ground clearance | 4" |

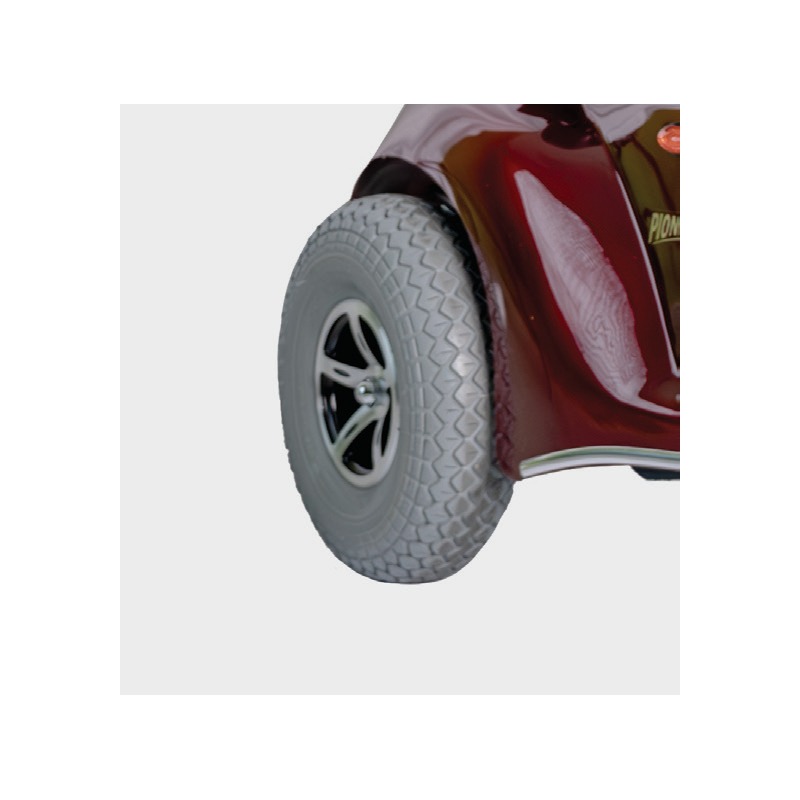

| Front tire | 10" pneumatic |
| Rear tires | 12.5" flat-free |
| Weight with batteries | 249 lbs |
| Base weight | 101 lbs |
| Battery weight | 44 lbs each |
Overview
Mobility devices come in a range of style and features, but time and time again, Merits has proven to provide slim designed models ideal for outdoor and indoor use. The 3-Wheel Merits Pioneer 9 is the ideal heavy duty 3-wheel mobility scooter for those who want more than just a way to get from one place to another. The device is rated for gradients of up to 12 degrees, so inclines are rarely a problem and the powerful 24V DC motor offers exceptional rear wheel power at all times.
Key Features of the Pioneer 9
- Anti-tip wheels and versatile 3-wheel configuration

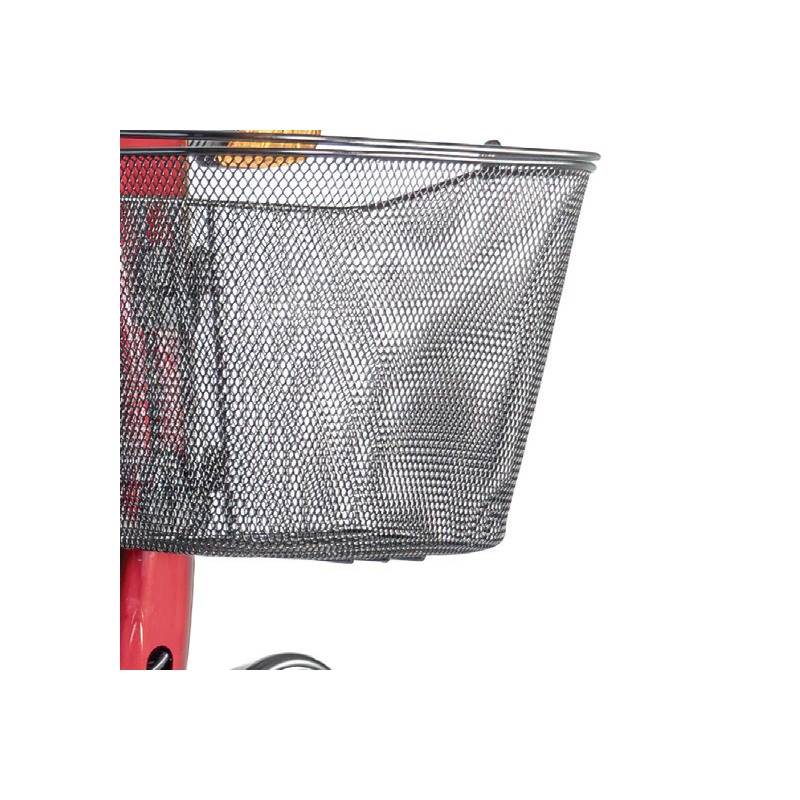

- Onboard storage includes large capacity front basket
- Compact, yet heavy-duty configuration at only 27” wide and 49” in length
- Adjustable, comfort features include captain’s chair, armrests, and delta tiller
- Onboard headlight, turning signals, and horn for optimal safety
- Tight turning radius of just 50”, works for indoor and outdoor use
- Ground clearance of 4” and multi-terrain build format
- High capacity 24V DC rear-wheel motor and dual 12V battery 70Ah capacity
- Full 32 mile range on full charge and 8mph top speed
- 12.5” rear wheels and 10” front pneumatic tire

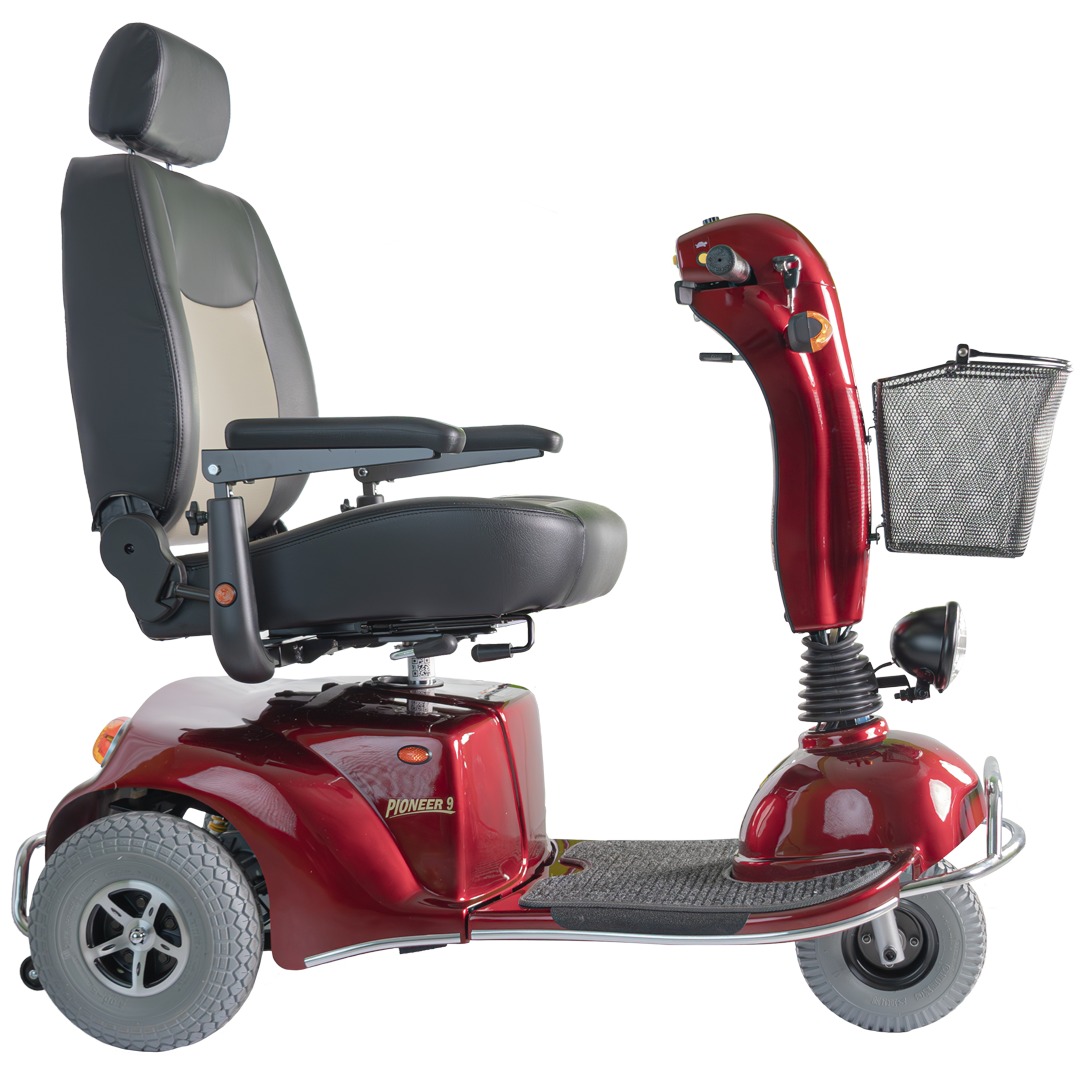

A Look at the 3-Wheel Merits Pioneer 9
A full range of 32 miles ensures you never run out of power during your busy day and the dual 12V batteries assist in powering all necessary safety features including lights, turning signals, and a loud horn. The small turning radius of just 50” enables the Merits Pioneer 9 3-Wheel scooter to be an exceptional companion for your grocery needs and the larger than average tires grip multiple surfaces for ideal use in the great outdoors. Shopping with a partner? Read whether you can ride a two seater in stores. The Pioneer 9 is a truly heavy duty mobility scooter with the ability to carry up to 500lbs at a swift 8mph. Anti-tip wheels help the device remain stable even on uneven surfaces, so you can travel with confidence on every outing. The Merits Pioneer 9 3-Wheel scooter will allow you to maintain your independence without compromise. Additionally, easy controls and an ergonomic design allow virtually anyone to pilot the device effortlessly.

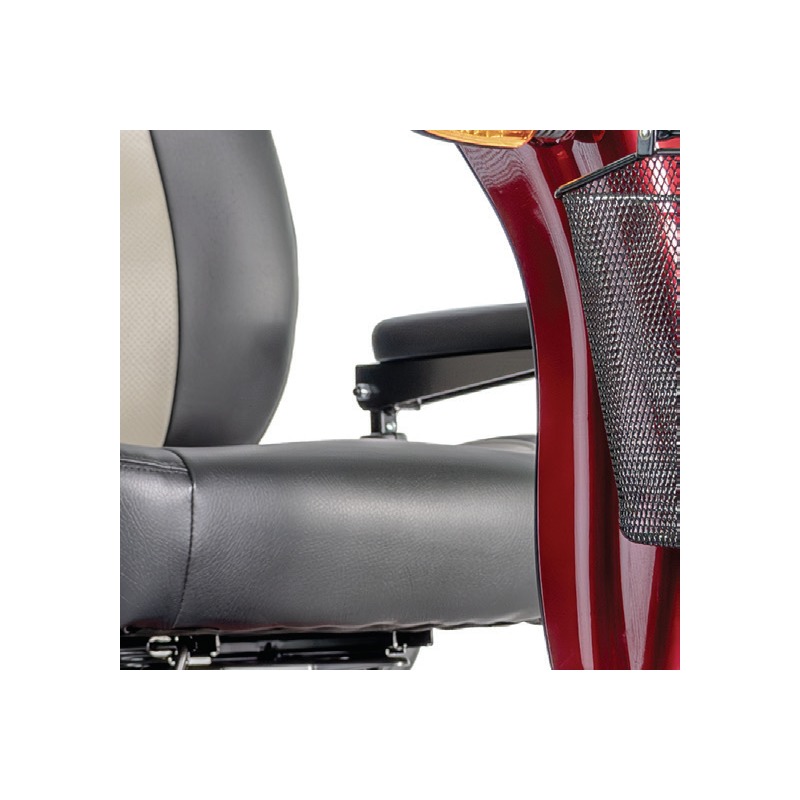

Comfort Where It Counts
When traveling in a full size mobility scooter, comfort matters. This is especially true when your mobility device is capable of up to 32 miles at 8mph like the Merits Pioneer 9 3-Wheel scooter. The Pioneer 9 features a fully adjustable, swivel captain’s chair with swing-up armrests that make loading and unloading from the mobility device easy. Not only is the chair made to be convenient, but orthopedic rated to provide optimal support on even the longest of journeys.
Once seated onboard the 3-Wheel Merits Pioneer 9, the driver has the ability to adjust the tiller to their personal preference. One hand adjustment of the tiller allows you to put it at the exact angle that is most comfortable for you. Along the journey, easy reach controls and an ergonomic design allow you to pilot the 3-Wheel Merits Pioneer 9 without tiring from strain. A fun and comfortable ride is what you can expect from the Pioneer 9.
Indoor Rated – Ideal for Tight Spaces
Often, full size mobility devices can be cumbersome to contend with indoors. Small spaces, such as hallways offer little ability to turn around and the driver is often forced to back out of these areas. That can be dangerous and completely uncomfortable. The Pioneer 9 is a 3-wheel mobility device. The rear wheel drive configuration and the single front, swivel wheel offers a solution to the problem and the 3-Wheel Merits Pioneer 9 turns around in just 50”, so whether you are going to the store or using the device around the home (as long as you have a large home), the Pioneer 9 is always available.
Just because the Merits Pioneer 9 3-Wheel scooter is rated for indoors does not mean it is incapable of performing outside. Although it is not a true all-terrain mobility device, it does maintain larger than average pneumatic tires that expertly grip the ground on a variety of terrains.
Are There Ample Safety Features?
Yes. Onboard the Pioneer 9, drivers enjoy an array of safety features including a bright headlight for night driving or driving in dimly lit areas. There is also a blinker and horn system standard. For your personal safety, the tiller houses a USB port for charging your device, so you never feel alone no matter how long you stay out.
Video
Merits Pioneer 9 (3 wh) and Pioneer 10 (4 wh) unboxing, step-by-step assembly, features and benefits
Reviews
“This is a really nice chair.”
I had the oxygen tank holder and armrest bags installed to make it easier for me to get around for longer periods of time. This was a great buy.
Doris SmithCarmel-by-the-Sea, Calif.
“The battery life is impressive, I only have to charge it every so often.”
I wish it went a touch faster but that is a minor bug that I can deal with.
Geraldine MillerBlock Island, Rhode Island
“I was taken care of very well by the staff at Heavy Duty Mobility.”
The scooter performs well, it hold all my weigh, not saying how much that it but above average! I wish I could carry it, it's too heavy for that.
Jackie MetzgerDayton, OH
“I was scared about this Pioneer tipping over as it only has one wheel upfront.”
But I needed to buy is otherwise it would be too big to turn. Anyway it turned out well and doesn't tip even when on a slant.
Kelly SinclairOR
“Would also prefer a digital screen but I'm managing without.”
Nice little scooter could do with more features. I guess the main thing is it runs well which it does and I'm enjoying my extra mobility.
Bernie AtkinsAiken, SC
“Nice scooter as it rides and turns good.”
Works for inside and outside which is what I told the rep I absolutely needed. But shame it only comes in red - blue (my favorite color) was out of stock when I ordered.
Allison WarrenOR
Shipping
- 1 to 2 daysleaves the warehouse
- Freecurbside delivery
- $254white glove, set up inside
- Check firstthen sign
Warranty
How long does the warranty on Merits Pioneer 9 mobility scooters last for? What’s included/excluded from the warranty?
The Pioneer 9 Scooter is issued a limited lifetime warranty on the frame of the scooter and a 12-month warranty on electrical components. The warranty begins immediately following purchase.
As an upgrade, we offer in-home warranties, where a technician will come to your home to repair your device. You can see these options in the "Options & Upgrades" section. This includes everything besides wear & tear (such as seat wear, flat tire etc.) and the batteries, which have a different warranty policy.
What can I do after the warranty period? Can I get spare parts for Merits Pioneer 9 mobility scooters? Who repairs these scooters and where?
After the warranty period, you are still welcome to contact us at any time.
Parts are available through us or the manufacturer, though you will be charged for these.
If you need someone to install parts or for other labor services post-warranty, the same local technicians that repair your scooter under warranty can do so at a charge post-warranty.
Technicians are available throughout the contiguous USA.
Contact us for help finding a tech, or for more details.Why HDM
Talk to a real expert1-888-233-5563
Real people answer, business hours and weekends. If the line is busy, we call you back.
- We know the makers
Direct relationships with the makers speed up warranty and technical answers.
- We stay with you after the sale
Phone help first, and a technician if a shipping or product issue needs one.
- A range we would buy ourselves
Only heavy duty models we would recommend.
- Honest financing
Pay over time with Klarna, upfront about interest.
Documents
Alternatives
UpgradeMerits Silverado Extreme All-Terrain Mobility Scooter S941L$5,338
Lower priceMerits Health Pioneer 4-Wheel Mobility Scooter S141$2,481
Four wheelsMerits Pioneer 10 Heavy Duty Mobility Scooter 4-Wheel S341$3,766
All terrainAfiscooter S3 Extra Heavy Duty Mobility Scooter with 600 lb Capacity Upgrade and 24" Seat, 3-Wheel$7,359
How much weight can the Merits Pioneer 9 carry?
The Merits Pioneer 9 is rated for 500 lb. Keep the rider plus anything in the front basket within that rating. The swivel captain's seat is 22 in wide and 20 in deep, and the armrests swing up so you can slide on and off from the side.
How far can the Pioneer 9 go on a charge?
Merits rates the Pioneer 9 at up to 32 miles per charge on two 12V Group 24 batteries of 70 to 80Ah. That is a best case figure. A heavier rider, hills, rough ground, cold weather and driving at full speed all shorten the real distance, so keep some charge in reserve on long outings.
How fast does the Merits Pioneer 9 go and how do the controls work?
The Pioneer 9 reaches 8 mph, with a slow speed mode for stores and tight spaces. A wig-wag lever on the tiller drives it forward and in reverse, so you can steer and drive with one hand, left or right. The brakes engage on their own whenever you let go of the lever.
Can the Pioneer 9 climb hills and ride on grass or gravel?
It is rated for slopes up to 12 degrees, about a 21 percent grade, and has 4 in of ground clearance. A 24V 400W rear wheel drive motor, 12.5 in flat-free rear wheels and a 10 in pneumatic front tire handle paths, lawns and packed gravel. Climb straight up a slope rather than across it.
Is a 3 wheel scooter like the Pioneer 9 stable?
The Pioneer 9 has anti-tip wheels that help keep it steady on uneven surfaces. The single front wheel lets it turn in just 50 in, which is the main reason to choose three wheels. A four wheel scooter is steadier on side slopes, so if you ride steep or uneven ground often, weigh that trade-off.
Can I use the Pioneer 9 indoors?
Yes. It is 49 in long and 27 in wide with a 50 in turning radius, so it turns around in hallways and store aisles where a larger scooter would have to back out. Measure your doorways and the tightest turn in your home before you buy.
How heavy is the Pioneer 9 and will it fit in my car?
It weighs 249 lb with batteries. Taken apart, the heaviest piece is the 101 lb base, the seat is 60 lb and each battery is 44 lb. It will not fit most car trunks but fits most pickup beds with a ramp. A platform lift on a trailer hitch needs a vehicle that takes at least 500 lb of tongue weight.
Do the Pioneer 9 batteries need maintenance?
No. The two sealed batteries are maintenance-free and usually last around 2 years of regular use. Both batteries and a 6A off-board charger come with the scooter. Cold weather shortens battery life, so store and charge it indoors when possible.
Does the Pioneer 9 need assembly?
With standard delivery it needs light assembly. You set the seat on its post, install the batteries, raise the tiller to driving position and fit the mirrors, then top up the tires to the pressure in the manual. With white glove delivery it arrives ready to ride with Merits accessories attached.
Will Medicare or insurance pay for the Merits Pioneer 9?
Heavy Duty Mobility does not work with Medicare or bill insurance, so this is a private purchase. As a general rule, Medicare Part B covers a scooter only when it is medically necessary for use in the home, after a face to face exam and a written order, and only through a Medicare enrolled supplier.
How is my scooter delivered?
Delivery to your curb is free. Check the packaging and the scooter before you sign for it, and call 1-888-233-5563 if anything looks wrong.
Can I pay over time?
Yes. Choose Klarna at checkout to pay over time. See how financing works.
Can I talk to someone before I buy?
Yes. Call 1-888-233-5563. Real people answer, business hours and weekends.
How price matching works
Found the same scooter for less? Send us the link and we will beat it.
- Send us the link to the lower price, by phone or email.
- We check that it is the same scooter, then beat the price.
- We don’t charge sales tax, so our total is often already the lower one.
Or email the link to [email protected]
