Search in your own words! Type what you are looking for and we will find the best matches. Which scooter folds small enough for my trunk?
  • 19 miRange
  • 5 mphTop speed
  • 300 lbCapacity

Merits Avid Ultra P325 Complex Rehab Power Wheelchair

  • AvailabilityCall to orderConfigured to order, we confirm the lead time on the call
  • BrandMerits
  • ModelUltra P325
$3,299Was $3,876Save $577

May require an evaluation and special delivery.

Free shippingNo sales tax added

30 day returnsReturns and warranty

30 days from the ship date to ask for a change of mind return. A 20 percent restocking fee applies and you pay the return shipping. Damage, the wrong item and faults covered by the warranty cost you nothing.

  • Up to 3 Year Service
  • Ships from Florida
  • Free Curbside Delivery
  • White Glove Available
Ratings as of Nov 2026

Call to order

We confirm your build, price and delivery on the call

Options & Upgrades

White
Red
Blue
Charcoal Gray
Canopy (+$159)
Extra Light (White) (+$35)
Extra Light (Red) (+$34)
Armrest Bag (+$53)
Unbreakable Cup and Bottle Holder (+$43)
Weather Cover (+$179)
Cane Holder (+$61)
Product total
Options total
Grand total

Specifications

This chair has a weight capacity of 300 lbs and a top speed of 5 mph. It is 36 in long, 24 in wide and 40 in high.

Performance
ModelUltra P325
Weight capacity300 lbs
DrivetrainMid wheel drive
Top speed5 mph
Range12 to 19 miles by battery
BatteryTwo, 55Ah 22NF AGM, 51Ah 22NF gel or 33Ah U1 AGM
Motor2 pole, 240W
ControllerPG VR2-A2 60A
Power tilt0 to 50 degrees posterior
Shear reduction recline90 to 110 degrees
Turning radius26"
HCPCS codesK0822, K0823, K0835
Size & Seat
Overall length36"
Overall width24"
Overall height40"
Seat width16" to 22", in 1" steps
Seat depth16" to 22", in 1" steps
Seat to floor height (power tilt or pan seat)16.5" to 19.5"
Seat to floor height (captain seat)20" to 23"
Backrest height18" to 28"
Ground clearance2.5"
Drive wheels14" x 3" foam-filled
Casters6" x 2" foam-filled
Weight315 to 384 lbs

Overview

Merits Avid Ultra P325 complex rehab power wheelchair with the power elevating seat raised on its column

Group 2 complex rehab power chair on a compact 24 inch mid wheel drive base with 50 degree power tilt, six wheels on the ground and seating that adjusts from 16 to 22 inches as needs change.

The Merits Avid Ultra is the entry point to the Avid by Merits complex rehab line, a Group 2 single power chair built on a compact mid wheel drive base just 24 inches wide. All six wheels stay planted on the ground and the front and rear suspension is tension adjustable, so the ride stays composed over thresholds and sidewalk seams while the 26 inch turning radius threads hallways and tight kitchens.

What separates the Ultra from a standard consumer power chair is its clinical seating. Center of gravity power tilt sweeps from 0 to 50 degrees posterior for pressure redistribution, and the shear reduction recline moves from 90 to 110 degrees without dragging fabric across the skin. The rehab seat frame adjusts from 16 to 22 inches in both width and depth in 1 inch increments, and backrest height spans 18 to 28 inches, so the chair can be refit as a rider's condition or body changes rather than replaced.

Twin 22NF batteries deliver up to 19 miles per charge and slide out through tool free rear access, so service happens without pulling the rider from the chair. A PG VR2 controller drives the paired 240 watt motors at up to 5 mph, and the 300 lb weight capacity covers most adult riders. Buyers choose a rehab pan seat, a cushioned captain seat or the single power configuration, with a seat to floor height as low as 16.5 inches for easy table height and transfers.

Video

Merits Avid Ultra P325 Complex Rehab Power Wheelchair video

Shipping

  • A boxed scooter on a pallet at the curb, lowered from a truck
    Freecurbside delivery
  • Delivery technician in white gloves showing a customer the controls of a new power wheelchair at home
    $350white glove, set up insideHow it works
  • Check firstthen sign

Add-on, sold separately

How will you transport your Avid Ultra?

This carries your power chair behind your car, SUV or van. We checked it against your power chair's weight and wheels.

Your Avid Ultra
  • 384 lb
  • 36 x 24 in
  • Scooter trailerScootaTrailerFrom $4,444
    • Carries 600 lbyour Avid Ultra weighs 384 lb
    • 66 x 35.5 in bedroom to spare around its wheels
    View add-on

For your hitch and tongue weight, ask for a Free Fit Check.

A smiling woman talking on the phone at her kitchen table

Warranty

What warranty comes with the Ultra P325?

Merits backs the Ultra P325 with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.

If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.

Warranty policy

Why HDM

Talk to a real expert1-888-233-5563

Weekdays we answer right away, or call you back ASAP if we're with another customer.

Weekends we're around, but replies can take longer.

  • We know the makers

    Direct relationships with the makers speed up warranty and technical answers.

  • We stay with you after the sale

    Phone help first, and a technician if a shipping or product issue needs one.

  • A range we would buy ourselves

    Only heavy duty models we would recommend.

Is the Avid Ultra the same chair as the Merits Vision Ultra P325?

Yes. Merits moved the Vision Ultra into its Avid complex rehab line and now sells it as the Ultra. The factory order form still lists model numbers P325-2SC, P325-2SS and P325-2SSP, so parts and service history carry straight over.

How much weight can the Avid Ultra P325 hold?

The Ultra is rated for riders up to 300 lb. The rehab seat adjusts from 16 to 22 in in width and depth in 1 in steps, and the backrest spans 18 to 28 in, so one base fits a wide range of body sizes. Riders over 300 lb should look at the Ultra HD, which is rated to 450 lb.

How much does the Ultra tilt and recline?

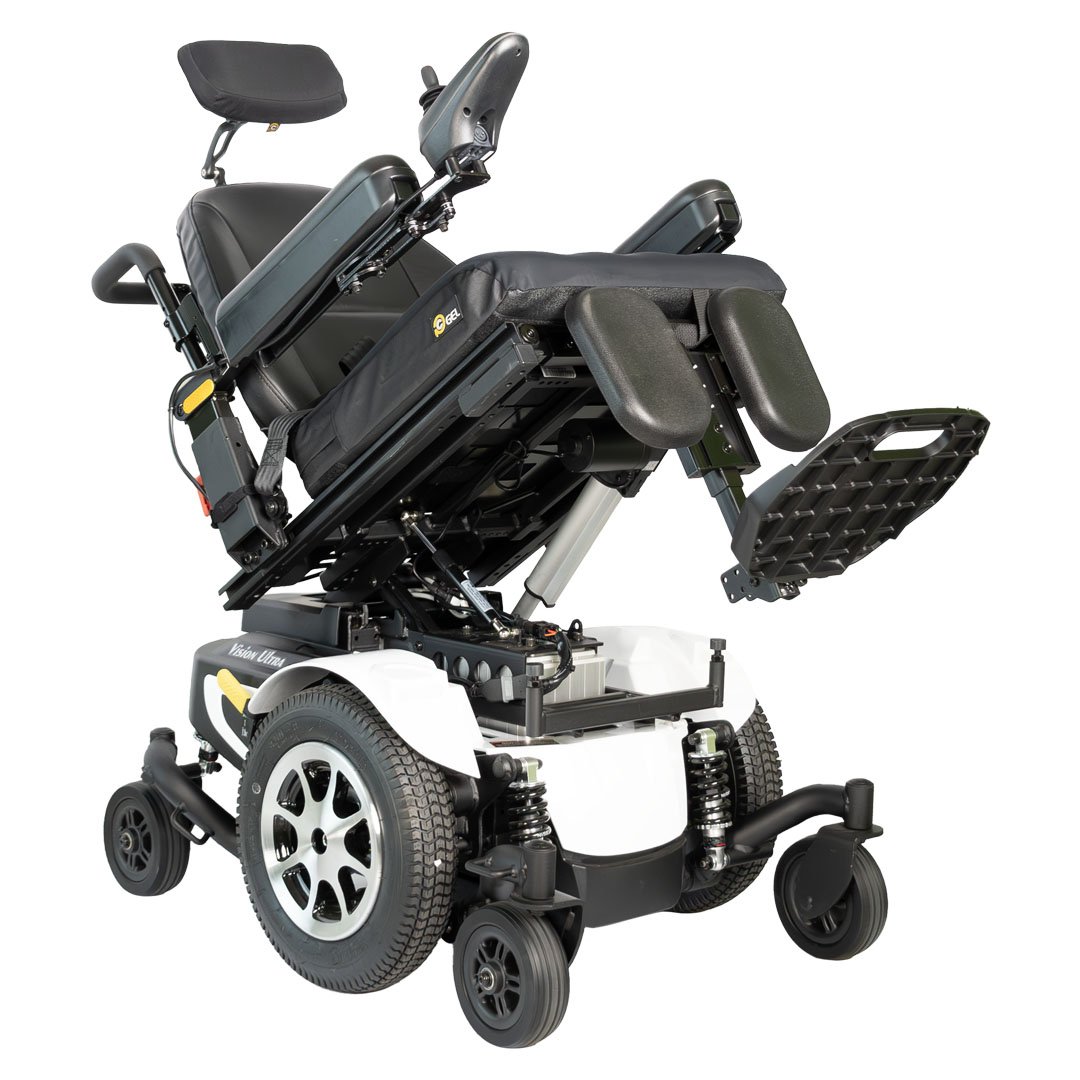

Center of gravity power tilt sweeps from 0 to 50 degrees posterior, which shifts weight off the sitting surfaces for pressure redistribution. The shear reduction recline moves from 90 to 110 degrees without dragging fabric across the skin. Full time users should have a seating assessment with a therapist to set these up.

What seat options does the Avid Ultra offer?

You choose a rehab pan seat, a cushioned captain seat or the single power tilt setup. Seat to floor height is 16.5 to 19.5 in with power tilt or the pan seat, and 20 to 23 in with the captain seat. The lower setting helps with table height and transfers.

How far does the Ultra go on a charge?

It depends on the battery pair. Merits rates the Ultra at up to 19 miles with two 55Ah 22NF AGM batteries and about 12 miles with the lighter 33Ah U1 AGM pair. A 51Ah 22NF gel pair is also offered. Rider weight, terrain and temperature change the real range.

Will the Avid Ultra fit through doorways and turn inside a small home?

The base is 24 in wide and 36 in long with a 26 in turning radius, so it is sized for hallways, bathrooms and tight kitchens. Six wheels stay on the ground with tension adjustable suspension front and rear. Measure your narrowest door, since many home doors are only 28 to 30 in wide.

Does the Ultra fold for car transport?

No. It is a full size rehab power chair weighing 315 to 384 lb depending on configuration, so it travels in a ramp van or with a vehicle lift rather than in a trunk.

How fast is the Ultra and what are its tires?

A PG VR2 controller drives two 240 watt motors at up to 5 mph. The 14 by 3 in drive wheels and 6 by 2 in casters are foam filled, so there are no flat tires to fix. Ground clearance is 2.5 in, so take raised thresholds slowly.

Does Medicare or insurance pay for the Avid Ultra P325?

Not through us. The Ultra carries HCPCS codes K0822, K0823 and K0835, the Group 2 power wheelchair classes, but Heavy Duty Mobility does not hold a Medicare supplier number and does not bill private insurance directly. Some private plans reimburse buyers, so ask your insurer first. We can provide an invoice and proof of purchase.

How is my chair delivered?

Delivery to your curb is free. Check the packaging and the chair before you sign for it, and call 1-888-233-5563 if anything looks wrong.

How do I order?

Call 1-888-233-5563. We confirm the build, the price and the delivery with you and place the order on the phone.

Can you check this model before I order?

Yes. Ask for a Free Fit Check. Call, chat or email and we compare your weight, your doorways, the ground and your vehicle with the specs in the manual.

Can I talk to someone before I buy?

Yes. Call 1-888-233-5563. Weekdays: we answer right away, or call you back ASAP if we're with another customer. Weekends: we're around, but replies can take longer.
