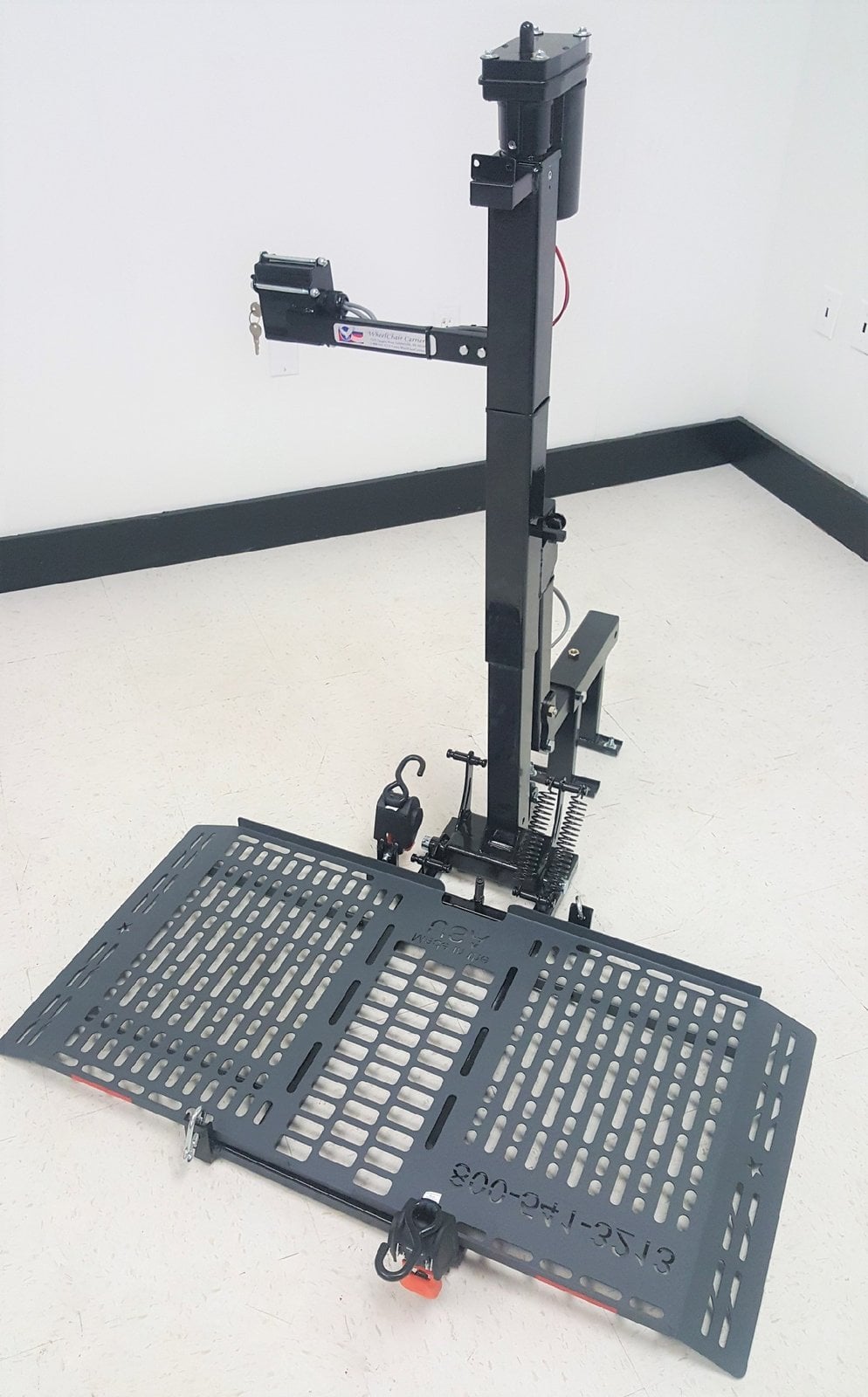

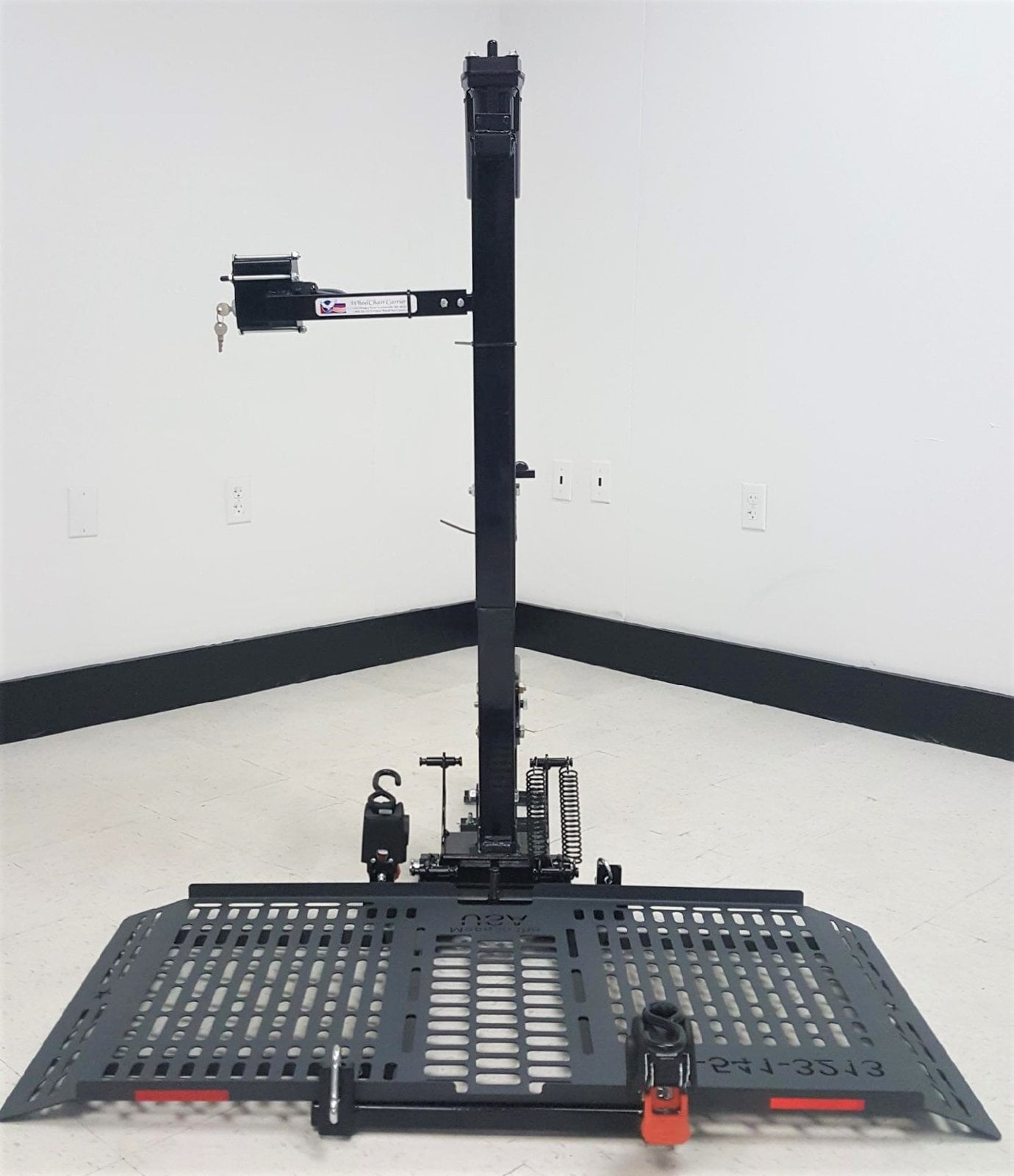

The Wheelchair Carrier Model 117 Mini Electric Lift is a hitch mounted platform lift sized for the lightest end of the mobility fleet. It carries travel scooters and folding power chairs weighing up to 150 lb on a 22 by 37 inch usable platform, and it does the lifting for you. Drive your scooter onto the lowered platform, cinch the two built in retractable ratchets, and hold the switch box rocker while the electric actuator raises the deck to travel height.
At 88 lb the Model 117 is one of the lightest powered lifts Wheelchair Carrier builds, which is exactly the point. It slides into a 1 1/4 inch or 2 inch square receiver on a Class II or Class III hitch, so it works behind sedans and small crossovers that could never run a full size powerchair lift. Ground clearance of up to 24 inches keeps the folded platform from scraping on driveways and parking ramps.
The whole assembly is fabricated from steel with an e-coat dip and powder topcoat, the same corrosion protection process used on automotive frames, and every unit is made in the USA. When you park, the platform folds itself up into a vertical stowaway position so the back of your vehicle stays short and visible in the mirror.
Power comes from your vehicle battery through the included 21 foot wire harness, which carries a 30 amp resettable circuit breaker so a fault trips the breaker instead of your vehicle wiring. Wheelchair Carrier backs the lift with a 3 year warranty.
| Model | 117 |
| Lift Type | Hitch mounted electric platform lift |
| Weight Capacity | 150 lb |
| Usable Platform Area | 37 in long x 22 in wide |
| Unit Weight | 88 lb |
| Frame Material | All steel with e-coat and powder finish |
| Hitch Compatibility | Class II or Class III |
| Receiver Size | 1 1/4 in or 2 in square |
| Ground Clearance | Up to 24 in |
| Controls | Handheld switch box |
| Securement | 2 retractable ratchet straps |
| Wiring | 21 ft harness with 30 amp resettable circuit breaker |
| Folding | Automatic stowaway fold |
| Swing Away Option | Available as Model 130 |
| Country of Manufacture | USA |
| Warranty | 3 year manufacturer warranty |
The Model 117 is configured to order. Every option below is priced in your quote. Call us toll free at 1-888-233-5563 and we will walk through the choices with you and confirm current pricing and lead time.
Two retractable ratchet straps come standard in the box and are the primary tie down for the scooter, so most owners need nothing extra on day one. Wheelchair Carrier also offers bolt on ratchet strap kits as replacements or spares through its dealer network. If your vehicle has a 1 1/4 inch receiver, confirm the hitch class rating with us before ordering since the lift itself fits either receiver size.
We sell the Model 117 on a quote basis so we can pair you with the right configuration and the best available price. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Most products in this range do not meet the strict medical device rules that Medicare and Medicaid use, so they rarely qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Some private plans will reimburse you outside of the Medicare framework. The best way to find out is to call your insurer and ask. If they say yes, we are happy to provide an invoice and proof of purchase so you can file for reimbursement.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Orders typically leave the warehouse within one to three business days. Once on the way, expect a transit time of around three to seven business days depending on your distance from the warehouse.
The stock status sits just under the product title near the top of this page. If it shows a lead time, the ship out window is that lead time plus the normal transit time above.
Yes. As soon as your order ships we email you a tracking link so you can follow it all the way to your door.
Wheelchair Carrier backs the Model 117 with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Yes, returns are possible. Please read the full returns policy for the details.
Official documents from Wheelchair Carrier
Key safety notes
The Model 117 runs off your vehicle's 12V battery through the included 21 foot harness, so there is nothing to charge and no separate battery pack to maintain. A handheld switch box raises and lowers the platform, and the 30 amp resettable breaker protects the circuit if anything binds.

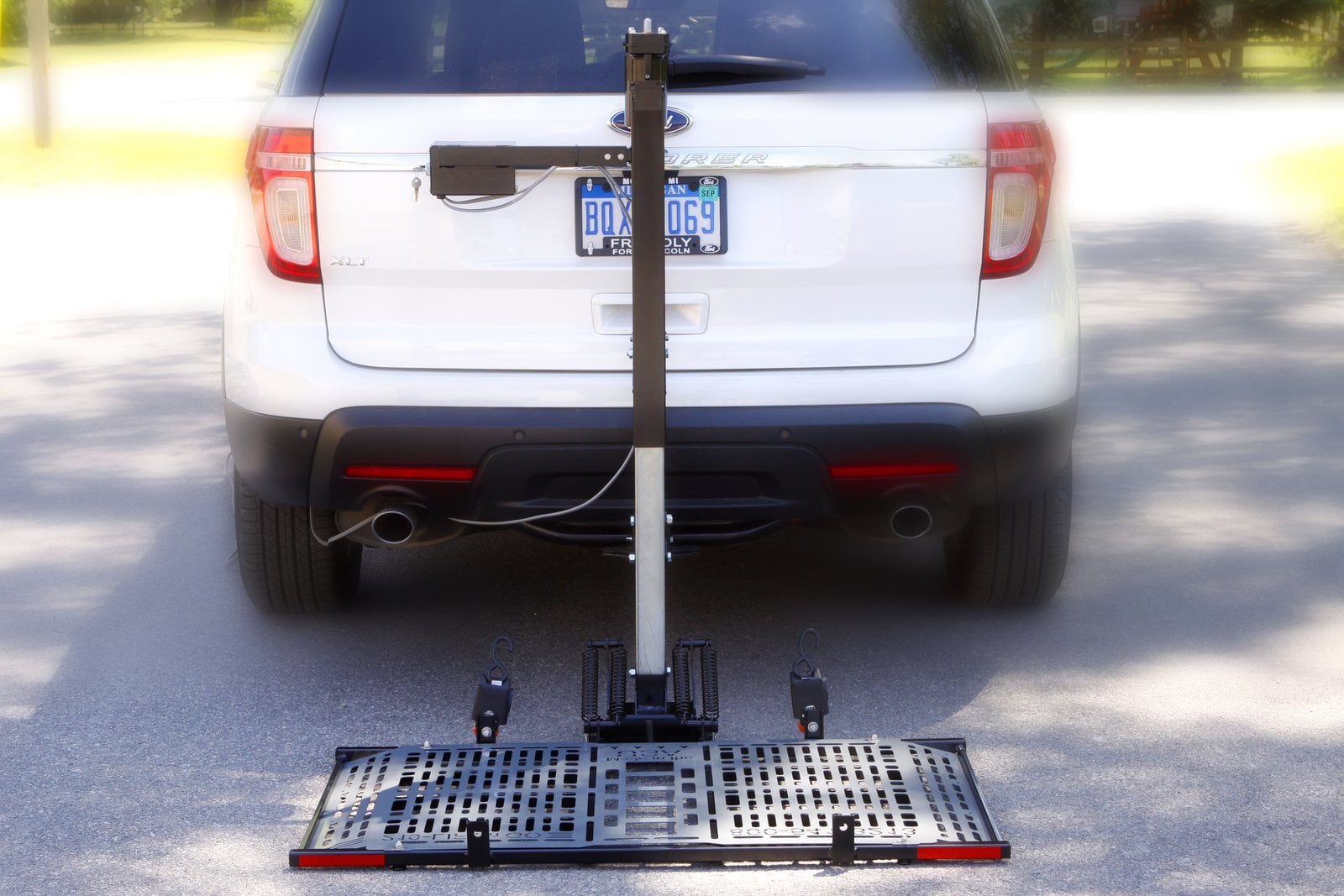

Daily loading takes about a minute. Lower the platform to the ground, drive or roll the scooter on, pull out the two retractable ratchets and hook them to the frame, then raise the platform to travel height. When the lift is empty it automatically folds up into its vertical stowaway position, keeping rear overhang short for parking.
Because the lift adds 88 lb of tongue weight plus the weight of your scooter, check that the combined figure stays inside your hitch's tongue rating. The 24 inch ground clearance handles steep driveway transitions, but as with any hitch carrier you should glance back after big dips the first few drives to learn your vehicle's clearance.

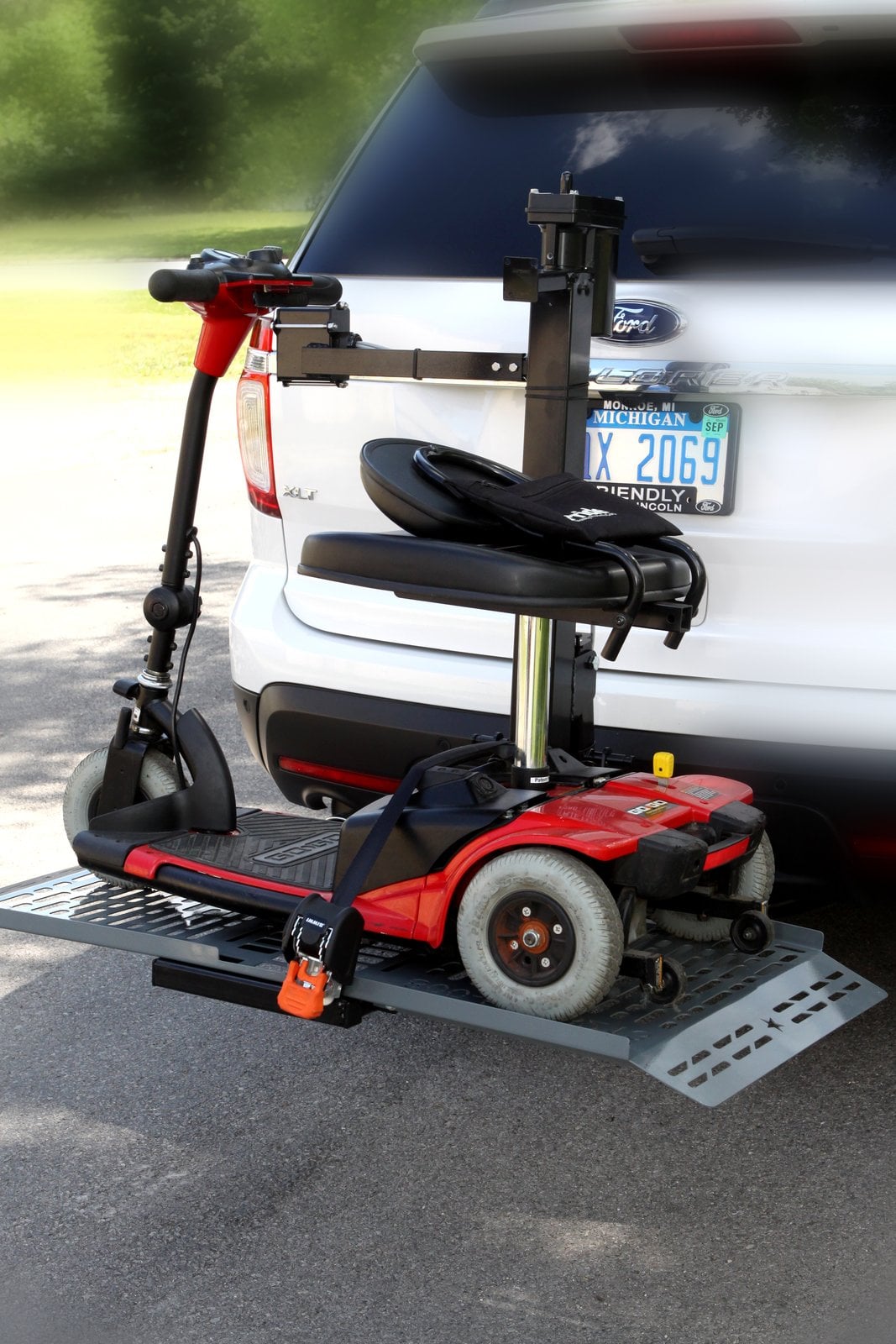

It is built for lightweight travel scooters and folding power chairs up to 150 lb with footprints that fit the 22 by 37 inch usable platform. Most 3 and 4 wheel travel scooters qualify, but weigh your device with its batteries before ordering.
A Class II or Class III hitch with either a 1 1/4 inch or 2 inch square receiver. Never exceed the hitch manufacturer's recommended capacity, and remember the lift itself adds 88 lb of tongue weight before the scooter goes on.
It wires to your vehicle's 12V battery through the included 21 foot harness. A 30 amp resettable circuit breaker is built into the harness, so an electrical fault trips the breaker rather than damaging your vehicle wiring.
With the standard configuration the folded lift sits behind the rear doors. Adding the optional Model 130 swing away lets the whole lift pivot to the side so the liftgate or tailgate opens fully.

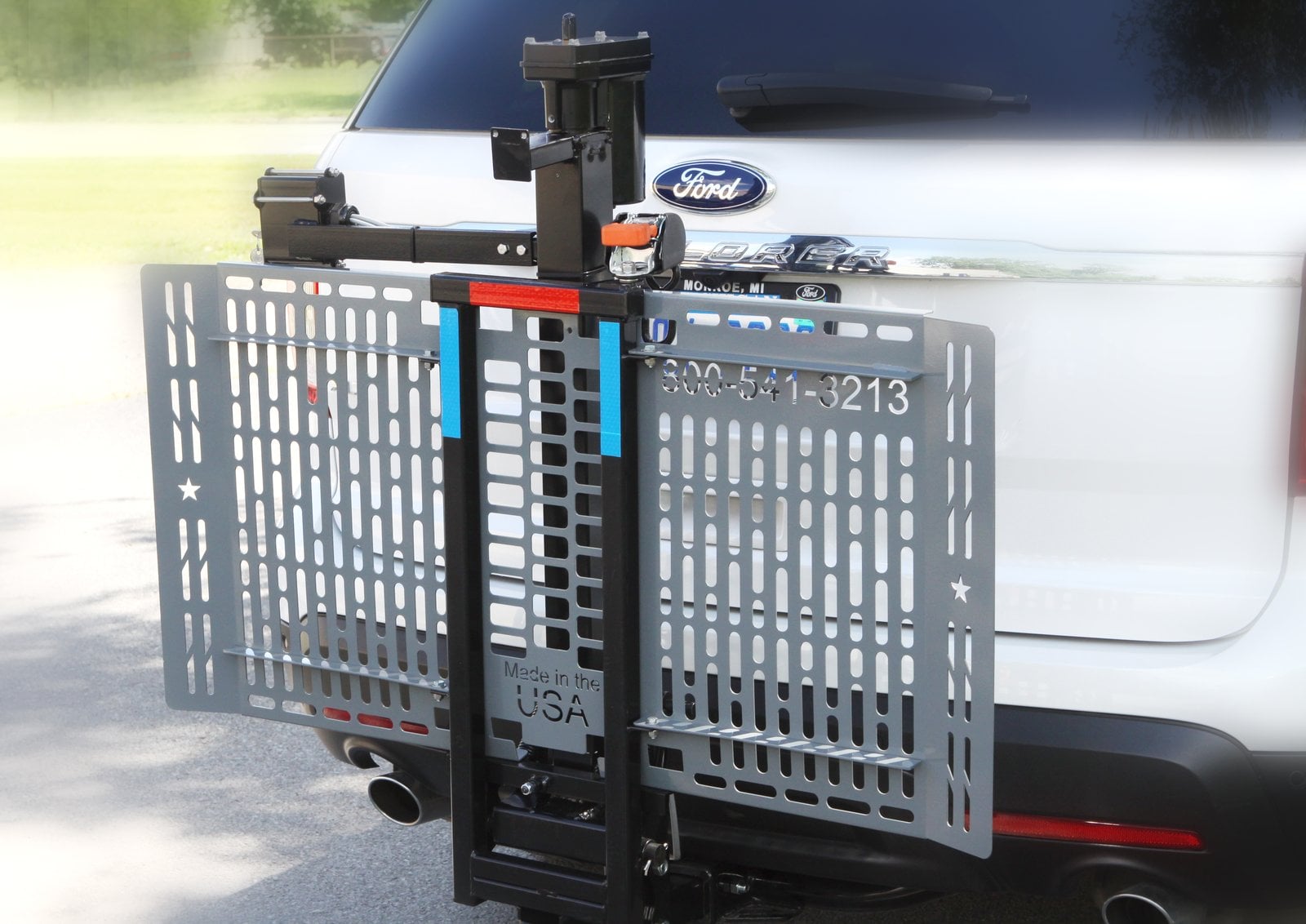

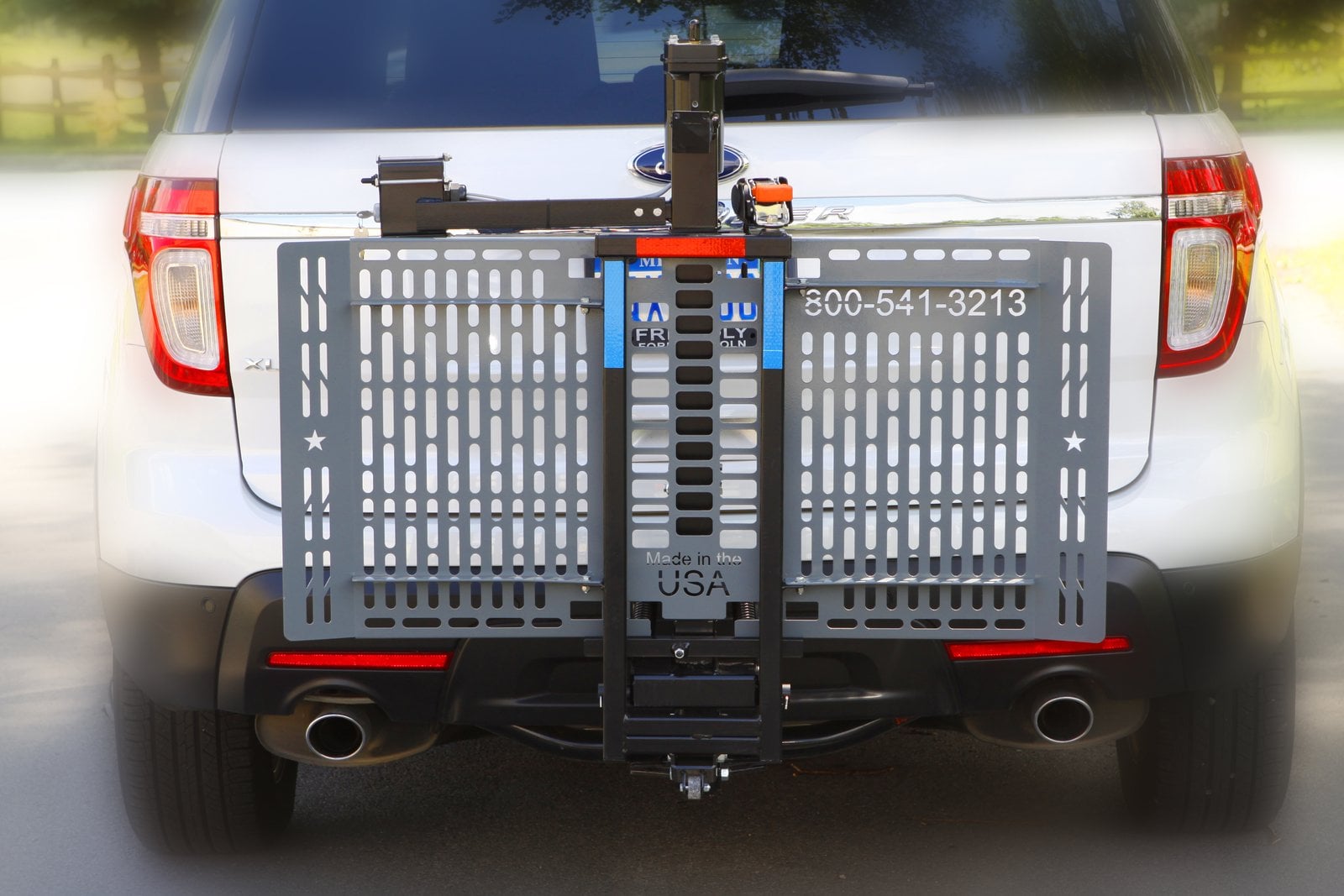

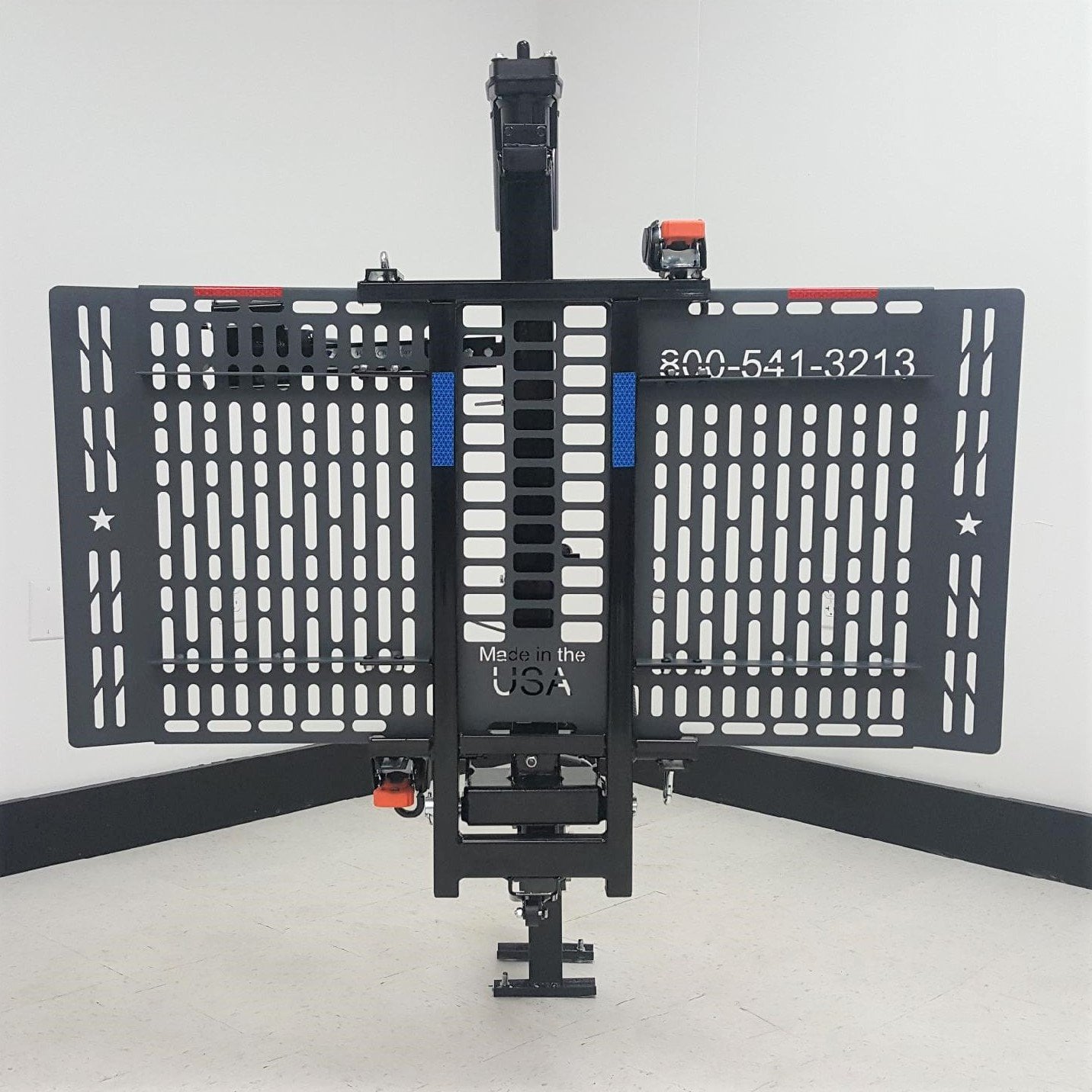

Yes. The Model 117 automatically folds into a vertical stowaway position when the platform is empty, which shortens rear overhang and keeps the carrier visible in your mirror.

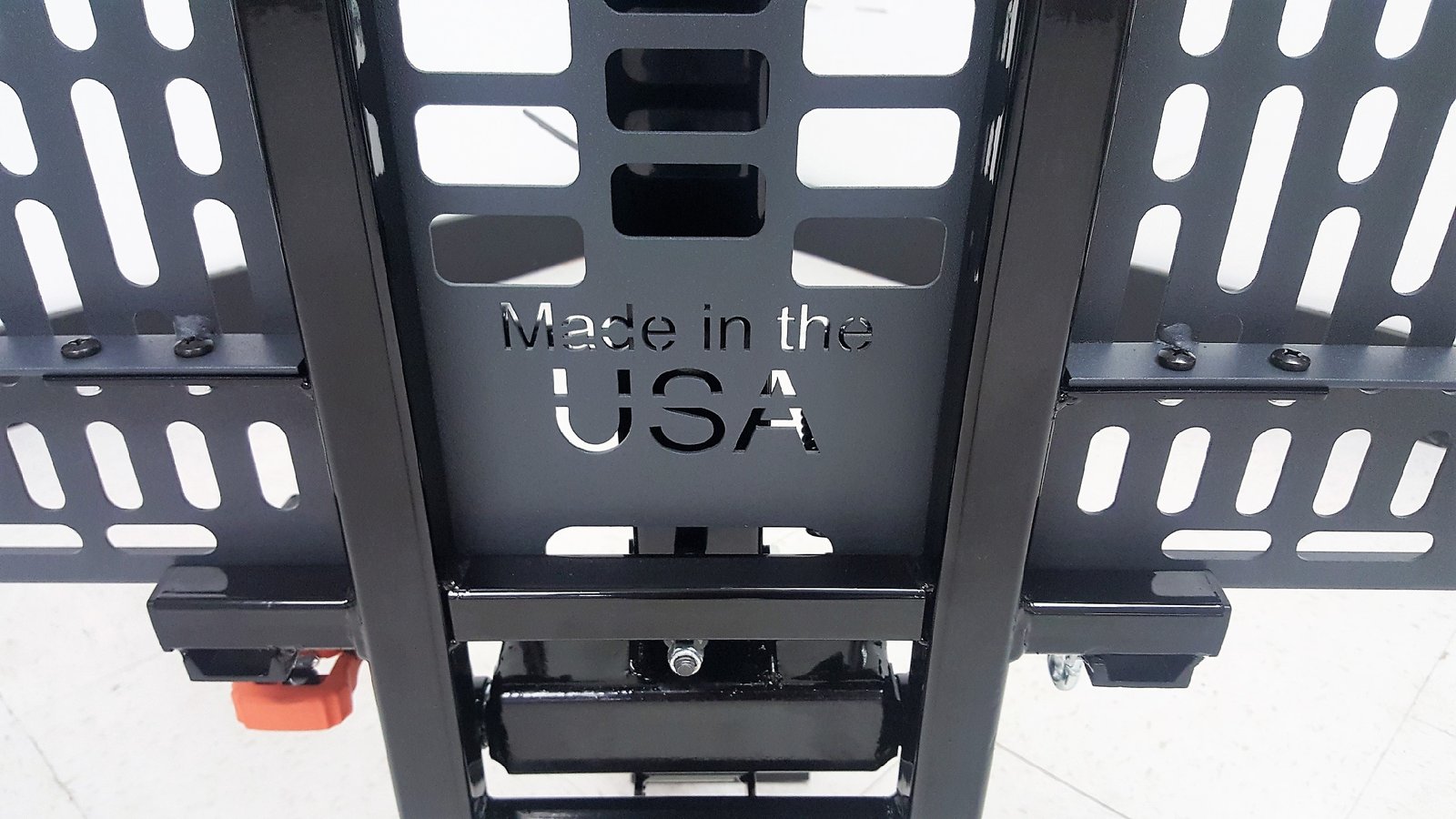

Every Model 117 is made in the USA from e-coated and powder finished steel. Wheelchair Carrier covers the lift with a 3 year warranty, with electrical components typically covered for 1 year through its dealers.
Many owners self install. The lift slides into the receiver and the harness routes to the battery, and Wheelchair Carrier publishes a step by step installation video. A hitch shop can do the job in under an hour if you prefer.
Wheelchair Carrier is one of the few hitch lift makers that still designs, fabricates and assembles its products entirely in the United States, and it stamps Made in the USA right into the steel of the platform. The company has specialized in vehicle carriers and lifts for mobility equipment for decades, sells through an established national dealer network, and answers its own support lines in Michigan. Its all steel frames get an automotive style e-coat plus powder finish, and the company stands behind the Model 117 with a 3 year warranty, which is longer coverage than most imported carriers offer.
