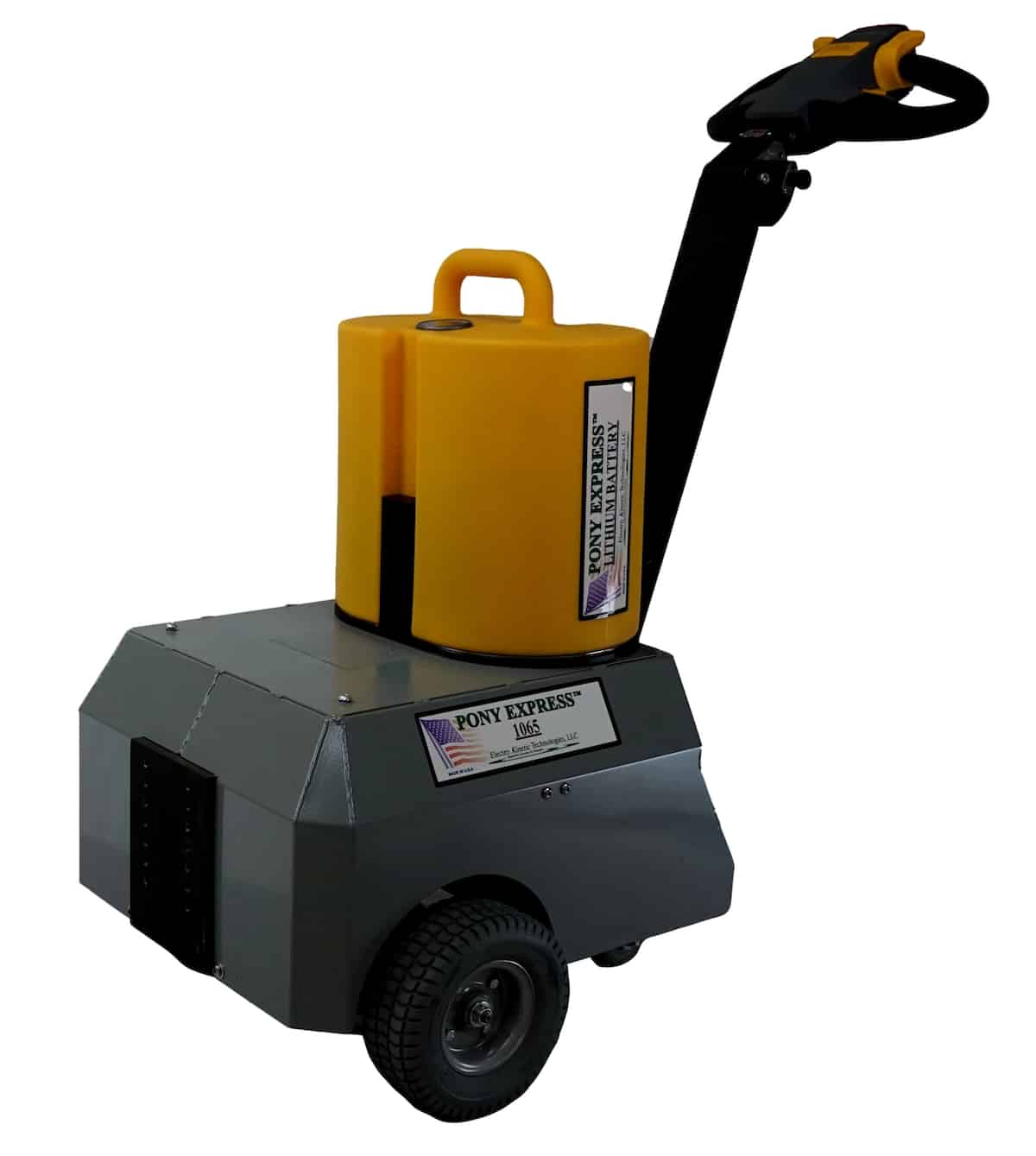

The Pony Express 1065 Lithium is the heavy duty electric tugger for operations that run all day and all night. It is rated for 5,000 lb of load on casters and up to 20,000 lb on rails, with actual performance depending on your casters and floor surface, and the swappable lithium battery pack means the tugger never has to stop working to charge. When the pack on the tug signals a low charge, the operator trades it for the pack on the charging stand and goes straight back to the floor.
The lithium iron phosphate pack is 24 VDC and 40 Ah and recharges in approximately 90 minutes on the external UL, cUL and CSA listed charger, which takes 85 to 270 VAC single phase at 50 or 60 Hz. These cells are light enough that swapping a pack meets OSHA standards, they carry UN38.3 certification for safe transport worldwide with no special packaging, they deliver 100 percent of rated capacity regardless of the rate of discharge, they charge six times faster than lead acid and they can last up to fourteen times as long as AGM and GEL batteries. The battery management system signals a recharge at the 80 percent discharge point, which is part of why the packs last, and it gives visual and audible warnings on the tug plus Bluetooth monitoring of a whole fleet through a phone app.
The chassis stays compact at 25 inches long and 24 inches wide, so heavy loads still move through tight hallways and manufacturing aisles. The ergonomic tiller head is height adjustable with thumb controls for speed and direction, and a high and low selector covers 0 to 1.5 mph on the low setting and 0 to 3.0 mph on the high setting. Carts attach with a draw bar, a ring coupler or a ball hitch, and EK Tech will build a custom coupling when your carts need one. The chassis is welded steel with a powder coated finish, the drive wheel is puncture proof and non-marking, and the parking brake is electromagnetic.
Plants, hospitals, hotels, distribution centers, pharmaceutical sites and food and beverage lines all run the 1065 family, and the lithium version is the one to pick when a tugger has to cover more than one shift. If a single shift is all you need, the Pony Express 1065 with AGM batteries does the same 5,000 lb work. Extra swappable lithium battery packs and the lithium battery charging station are sold separately so you can build the rotation your shifts need.
See the rest of the Pony Express lithium tuggers with swappable packs.
| Recommended Load Weight on Casters | 5,000 lb |
| Recommended Load Weight on Rails | 20,000 lb |
| Length | 25 inches |
| Width | 24 inches |
| Variable Speed Range | 0 to 1.5 mph low setting, 0 to 3.0 mph high setting |
| Battery Pack | 24 VDC, 40 Ah, lithium iron phosphate, hot swappable |
| Battery Management | Visual and audible recharge indicator, Bluetooth app monitoring on a phone |
| Battery Charger | External, 85-270 VAC single phase, 50/60 Hz, UL, cUL and CSA listed |
| Recharge Time | Approximately 90 minutes |
| Incline Rating | EKT sets this for your facility, ask us with the grade of your ramps |
| Parking Brake | Electromagnetic |
| Chassis | Welded steel with powder coated finish |
| Drive Wheel | Puncture proof, non-marking |
| Hitching | Draw bar, ring coupler or ball hitch, with custom couplings available |
EKT rates it at 5,000 lb on casters and up to 20,000 lb on rails. Actual performance depends on the casters under your carts and the surface they roll on, so tell us what you move and where and we will confirm the rating with the factory before you order.
The 24 VDC 40 Ah lithium iron phosphate pack lifts off the tug and a charged pack goes on in its place, which is how one machine covers back to back shifts. A pack recharges in approximately 90 minutes on the external UL, cUL and CSA listed charger, and the battery management system tells the operator to swap at the 80 percent discharge point.
Loads attach with a draw bar, a ring coupler or a ball hitch, and the couplings and hitches are fully customizable, so EK Tech can build the connection your carts need. Send us photos and dimensions of the carts you tow and we will spec the hitch with the tugger.
The bodies match, so both are 25 inches long and 24 inches wide and both run 0 to 3 mph. The standard 1065 uses a 70 Ah AGM pack that gives 8 hours of operation and recharges in about 4 hours on an internal charger. The 1065 Lithium uses a 40 Ah lithium iron phosphate pack that recharges in approximately 90 minutes and can be swapped mid shift for 24/7 running.
These cells hold UN38.3 certification, so they transport globally with no special packaging, unlike lithium chemistries that are prone to combustion. They can last up to fourteen times as long as AGM and GEL batteries thanks to the management system that calls for a recharge at 80 percent discharge, they give 100 percent of rated capacity whatever the rate of discharge, they charge six times faster than lead acid and they have a low environmental impact at disposal.
That depends on how many hours a day the tugger runs and how long a pack lasts on your loads. A pack charges in approximately 90 minutes, so many sites run one spare pack on the charging stand and rotate. Call us with your shift pattern and we will work out the rotation and quote the extra packs and charging station with the machine.
Yes. Every pack reports over Bluetooth to a downloadable app, so you can see the state of charge of your whole fleet from a connected smart phone. On the tugger itself the operator gets visual and audible indicators before the pack runs low, which stops a load being stranded far from a charging point.
Manufacturing and other industrial floors, healthcare, hospitality, retail, pharmaceutical operations and food and beverage plants all run this tugger. It suits any site that moves heavy carts on casters or rail mounted loads and cannot afford to park the machine for a charge in the middle of a shift.
We sell the Pony Express 1065 Lithium on a quote basis so we can confirm the right configuration and the best available price for your facility. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Material handling equipment like the Pony Express 1065 Lithium does not meet the medical device rules that Medicare and Medicaid use, so it does not qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Each unit ships by freight carrier on a skid from the EK Tech factory in Wisconsin. Once your order is confirmed we give you the current factory lead time with your quote, and transit typically adds three to seven business days depending on your distance. We coordinate dock delivery or liftgate service with you when the build is scheduled.
Yes. As soon as your unit ships we email you a tracking link so you can follow it all the way to your dock.
The Pony Express 1065 Lithium comes with a 2 year warranty on the frame and drive system. It does not cover service or transportation costs, normal wear items, damage from misuse, unauthorized work or modifications, or outdoor storage. Shipping damage and incidental damages are also not covered. The warranty is valid for the original buyer with a sales receipt, and any warranty changes need approval from Electro Kinetic Technologies, LLC.
Yes, returns are possible. Please see our returns policy.
The brochure covers the 1065 tugger family, so it shows the AGM and lithium versions together. Ask us if you want the specification sheet for the 1065 Lithium on its own.
Key safety systems
Electro Kinetic Technologies, known as EK Tech, designs and builds its ergonomic material handling equipment in Germantown Wisconsin. The company specializes in motorized carts, electric tuggers and lift carts that remove the push, pull and lift forces behind most workplace musculoskeletal injuries, and it is a member company of MHI, the largest material handling industry association in the US. EK Tech equipment is in service at hospitals, pharmaceutical clean rooms, aerospace lines and NASA jet engine service teams. Buying a Pony Express 1065 Lithium means buying a US built product from a factory that will still be answering parts and support calls a decade from now.
