| Performance | |
|---|---|
| Weight capacity | 50,000 lb |
| Battery | 36V three 85 Ah batteries |
| Top speed | 0 to 3 mph forward and reverse |
| Size & Build | |
|---|---|
| Lift kit | 6,000 lb hydraulic actuator |
| Drive | 2,000 lb chain drive transaxle |
| Tires | Solid fork truck drive tires |

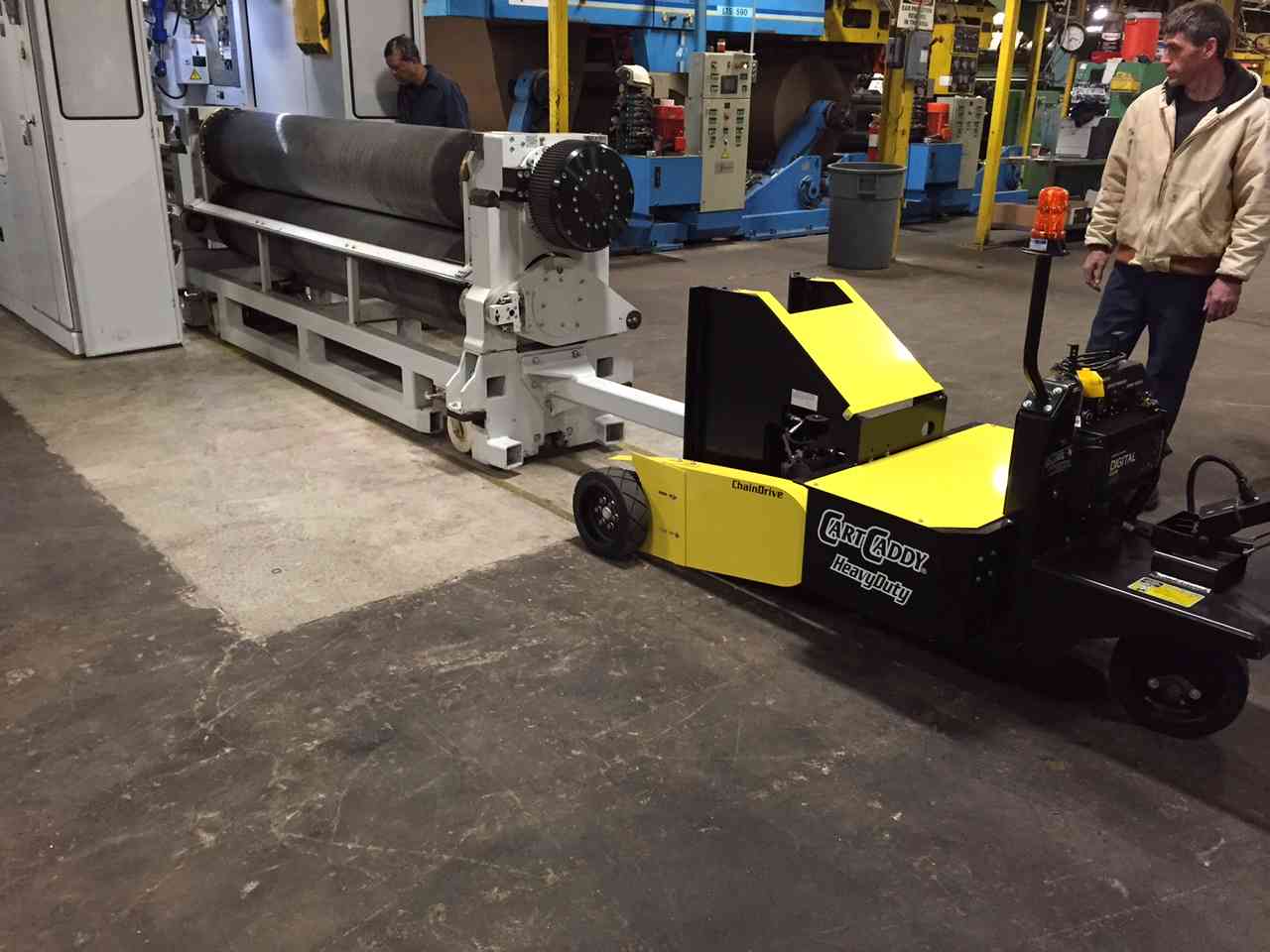

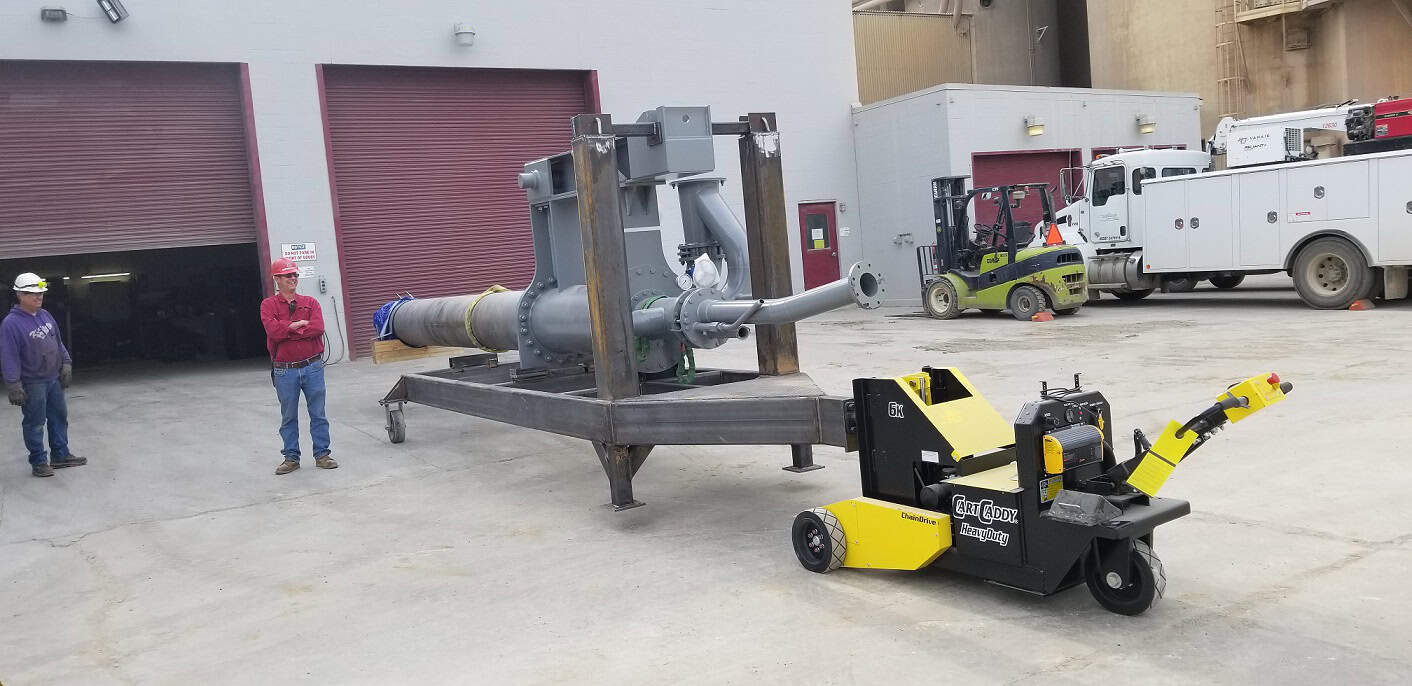

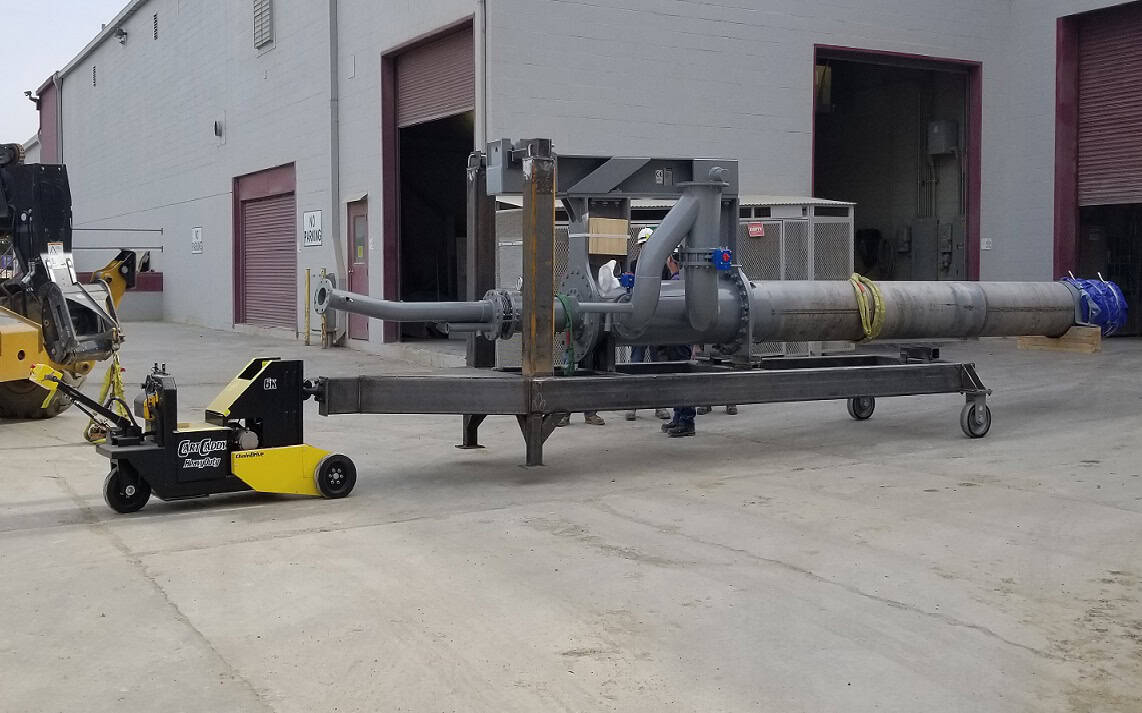

The heaviest CartCaddy. A chain driven electric tug that moves equipment up to 50,000 lb and lifts up to 6,000 lb on its hydraulic actuator to put weight over the drive tires for traction.
The CartCaddyHD Chain Drive comes standard with a 36v system (3 - 12v batteries) designed to give the operator 16-hours of use before recharging. There's usually plenty of battery life to last two shifts.
The mover has a variable speed twist grip for forward and reverse cart directions from 0 to 3 mph. The ergonomically correct variable speed feature prevents carpal tunnel and allows the operator to maintain smooth control while intricately maneuvering the cart. The CartCaddyHD Chain Drive's ability to go 3 mph allows the machine to keep up with the operator without frustration from waiting for a slowly operating machine when moving the unit from point A to B throughout your facility
The safety stop switch positioned at the back of the handlebar box immediately stops the mover when pressed to prevent any possible injury from operating the device and pulling a cart. This feature is a must when buying any piece of equipment.
Every DJ Products unit is built to order for the load it has to move, so the right drive package, attachment and battery depend on your application. Tell us the weight, the surface and the incline and we will quote the correct build.
DJ Products CartCaddyHD ChainDrive Electric Tug for Loads up to 50,000 lbs video
Real people answer, business hours and weekends. If the line is busy, we call you back.
Direct relationships with the makers speed up warranty and technical answers.
Phone help first, and a technician if a shipping or product issue needs one.
Only heavy duty models we would recommend.
SimilarPony Express 1065 Electric Powered Tugger for Loads up to 5000 lbs$6,279SimilarPony Express 1065-HD Electric Powered Tugger for Loads up to 6500 lbs$7,949SimilarPony Express 1065-XHD Electric Powered Tugger for Loads up to 7500 lbs$8,949
SimilarPony Express Electric Powered AC Tugger 25K+$20,195Up to 50,000 lb, making it the heaviest CartCaddy. Size it to your heaviest load, not the empty weight, because floor condition and slope reduce usable capacity. Tell us the weight, the floor surface and any incline, and DJ Products builds the drive package and attachment to suit.
The hydraulic actuator lifts up to 6,000 lb to put weight over the drive tires for traction, which is what lets the tug move very heavy equipment. It runs on solid fork truck drive tires through a 2,000 lb chain drive transaxle.
DJ Products rates the CartCaddyHD at up to 16 hours of use before recharging, which usually covers two shifts. It runs on a 36 volt system of three 85Ah batteries, and the charger plugs into a standard 120 volt single phase outlet.
A variable speed twist grip controls forward and reverse travel from 0 to 3 mph, according to the spec table. A safety stop switch at the back of the handlebar box stops the mover as soon as it is pressed.
Plan on it. OSHA rule 1910.178 covers powered industrial trucks, including tractors and motorized hand trucks, and requires that only trained and authorized operators use them. Your employer decides how that applies to a powered tug at your site, so set up operator training before it goes into daily use.
The CartCaddyHD ChainDrive is built to order by DJ Products at its Minnesota plant and arrives crated by freight carrier. Most sites need a loading dock or a forklift to receive the crate, so plan for one before it arrives.
It ships by freight truck. Call 1-888-233-5563 and we quote shipping to your address before you order.
Call 1-888-233-5563. We confirm the build, the price and the delivery with you and place the order on the phone.
Yes. Call 1-888-233-5563. Real people answer, business hours and weekends.
21-day in-facility trial · Refundable $250 deposit · You pay freight only
