Compact & Small Electric Tuggers

By Raphael, Founder, Heavy Duty Mobility. Last updated June 13, 2026. Questions on fit or load rating, call us before you buy.

What counts as a compact electric tugger?

A compact electric tugger is a walk-behind tow unit with a small frame footprint, rated for loads up to roughly 2,000 lb, built to work in the aisles and doorways where larger machines cannot turn. The two compact units in the Pony Express line are the 1061-HD and the 1062. Both tow up to 2,000 lb on a flat floor, both run center-wheel drive for a tight turning radius, and both are pedestrian operated. An operator walks behind the unit and steers with a tiller, which means there is no cab and no ride-on platform eating up your floor space.

The size class matters because the real limit on a compact tugger is footprint and turning circle, not raw pulling power. A 1061-HD will start and tow a 2,000 lb cart train across a smooth concrete floor without breaking a sweat. What it will not do is replace a 6,500 lb heavy-duty unit, and it was never meant to. You pick compact when the constraint is the building, not the weight.

How much can a compact tugger actually move?

Both stocked compact models are rated to tow up to 2,000 lb on a flat surface. That is the manufacturer rating on a level floor with wheeled carts in good condition. Ramps, soft casters, cold concrete, and worn wheel bearings all eat into usable capacity, so size with some headroom rather than loading to the exact number.

Keep in mind that the 2,000 lb rating is a tow rating, not a lift rating. A compact tugger moves loads horizontally on their own casters. If a load needs to come off the ground, that is a different machine entirely. For loads above 2,000 lb, the heavy-duty electric tuggers start at 5,000 lb and run to 7,500 lb. And if you need to carry loads on a deck rather than tow them, the motorized platform carts handle up to 4,000 lb.

1061-HD vs 1062, which compact tugger fits your floor?

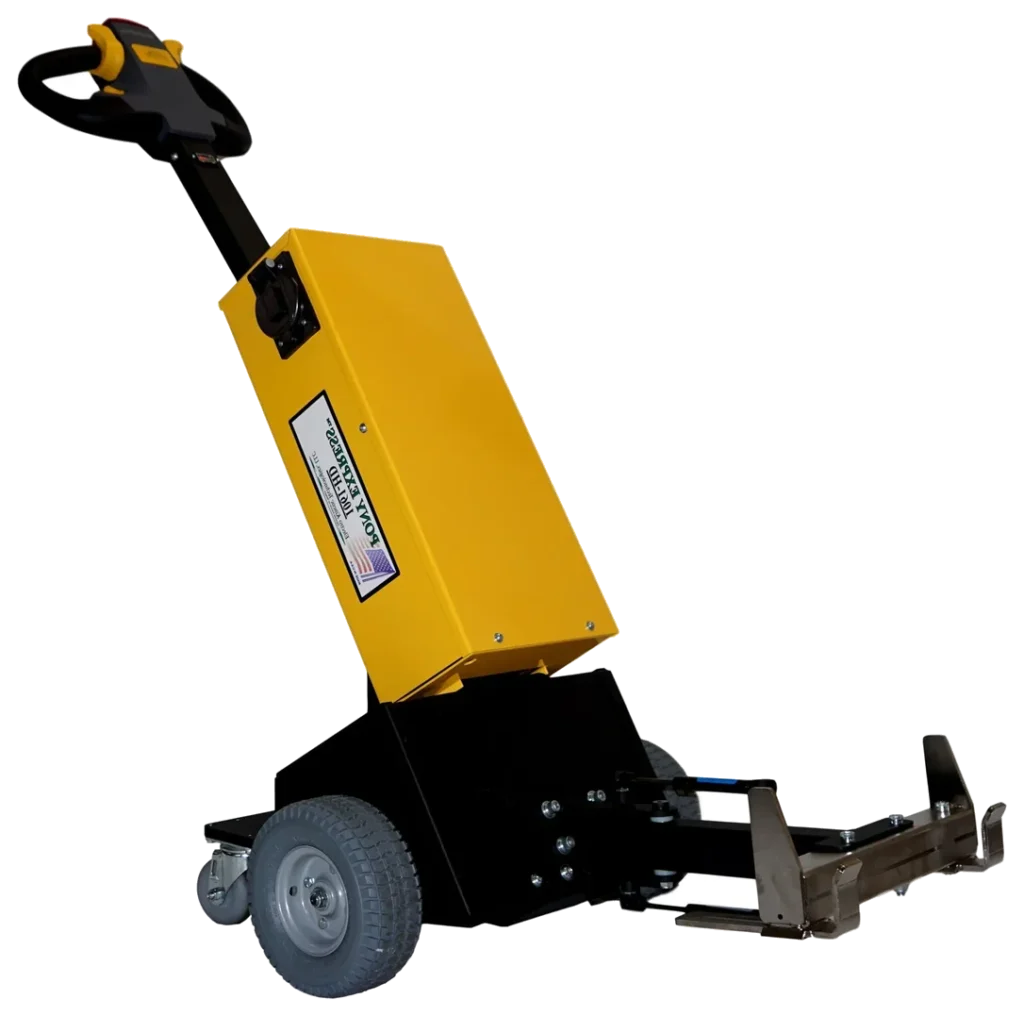

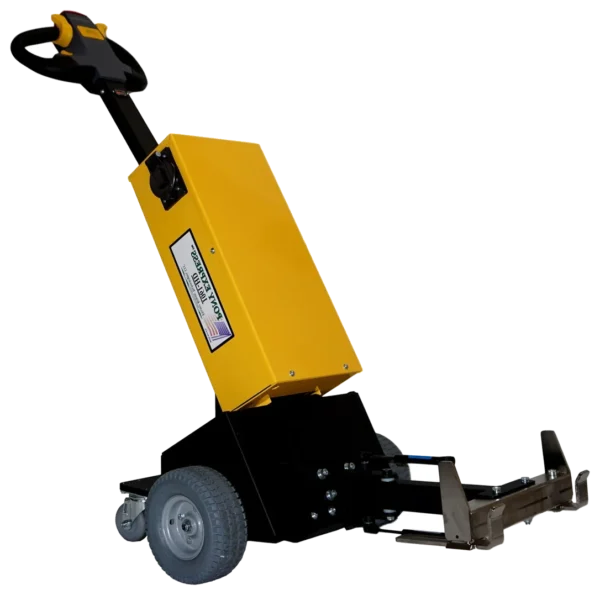

Pick the 1061-HD if you want an adjustable-length unit you can shorten for storage. It telescopes from 39 to 54 inches and measures 24.5 inches wide, and it comes with multiple hitch options from a pintle hook to a ball coupler, so it mates to whatever your carts already use. At $5,452 it is our top compact pick and the cheaper of the two. It also takes a 40 Ah Lithium Iron Phosphate battery upgrade, which suits facilities that charge between shifts and want a lighter, acid-free pack.

Pick the 1062 if you run longer shifts and want extra battery on board. The 1062 ships with a 35 Ah AGM battery and offers a 70 Ah AGM upgrade, double the standard capacity, for operations that cannot stop to recharge mid-shift. It runs a fixed 25 inch body, 24 inches wide, on foam-filled non-marking tires, with regenerative braking and an automatic holding brake. At $5,981 it costs $529 more than the 1061-HD, and what you are buying for that money is battery headroom and a fixed rugged frame in place of the 1061-HD adjustability.

Raphael on which to buy. Nine out of ten buyers in this size class are happiest on the 1061-HD. The adjustable 39 to 54 inch tiller is the feature people underrate. Shorten it to park the unit against a wall in a crowded stockroom, then extend it for better leverage when you are steering a long cart through a doorway. I only steer people to the 1062 when they tell me they run two full shifts without a charge window, because the 70 Ah battery option is the real reason to spend the extra $529. If you are choosing on price alone, the 1061-HD is the answer.

Why power a small tugger instead of pushing the cart by hand?

Manual pushing has a ceiling, and it is a lot lower than most people think. NIOSH guidance on manual material handling puts the sustained push force a worker can apply safely at well under what it takes to start a loaded cart rolling. A 2,000 lb cart on tired casters can demand an initial push force far above that limit, and that is exactly how warehouses end up with back, shoulder, and knee injuries from a task that looks routine. A compact electric tugger does the starting and stopping force for you, so one operator moves what used to take two people leaning into a cart.

The other reason is control. Both compact units run 0 to 1.5 mph on the low setting and 0 to 3 mph on the high setting, with regenerative braking and an automatic holding brake. That gives you smooth starts, controlled stops, and no rollaway on a slight grade. A walk-behind tugger also keeps the operator on their feet and moving rather than seated in a powered vehicle, which is the right call for short repeated moves on a busy floor.

Where compact tuggers fit and where they do not

Compact tuggers earn their keep in stockrooms, hospital corridors, hotel back-of-house, mailrooms, light manufacturing cells, and any operation with narrow aisles and cart loads of 2,000 lb or lighter. The small footprint and center-wheel drive let them pivot in place, which matters a lot when the aisle is barely wider than the cart.

Here is the honest boundary. These are walk-behind, pedestrian-operated tow units. We do not sell ride-on tow tractors, AGVs, or autonomous movers, and a compact tugger is the wrong tool for a long-distance multi-cart train across a large plant. If you need to tow trains hundreds of feet or move loads heavier than 2,000 lb, the heavy-duty tuggers are built for exactly that, and if a ride-on tractor is what you really need, we will point you to the right vendor. Both compact units are pedestrian-controlled walk-behind trucks covered under OSHA 29 CFR 1910.178, and operator training under that standard applies to them the same as it does to any powered industrial truck.

Frequently asked questions

What is the smallest electric tugger Heavy Duty Mobility sells?

The Pony Express 1061-HD is our smallest stocked electric tugger by footprint. It is 24.5 inches wide and adjusts from 39 to 54 inches long, and it tows up to 2,000 lb on a flat floor. There is also a base 1061 rated to 1,500 lb available as a special-order unit, but the 1061-HD is the one we keep in stock and recommend for tight-aisle work.

How much weight can a compact electric tugger pull?

Both stocked compact models, the 1061-HD and the 1062, tow up to 2,000 lb on a flat surface. That is a tow rating for wheeled loads on casters, not a lift rating. For loads above 2,000 lb, move up to a heavy-duty electric tugger rated 5,000 to 7,500 lb.

What does a compact electric tugger cost?

The Pony Express 1061-HD is $5,452 on sale, down from $6,177. The Pony Express 1062 is $5,981 on sale, down from $6,706. Both prices are current as of June 2026 and include the 5-year frame and motor warranty. Hitch options and the battery upgrades are priced separately.

Can a compact tugger run a full shift on one charge?

Both units give about 8 hours of operation per charge and recharge in roughly 4 hours on the onboard charger. If you run back-to-back shifts without a charge window, choose the 1062 with the 70 Ah AGM battery upgrade, which doubles the standard 35 Ah capacity, or the 1061-HD with the 40 Ah Lithium Iron Phosphate option for faster top-ups between rounds.

Are compact tuggers walk-behind or ride-on?

Every compact tugger we sell is walk-behind and pedestrian operated. The operator walks behind the unit and steers with a tiller. We do not sell ride-on tow tractors. If your moves are long-distance multi-cart trains that need a seated tractor, that is a different machine, and we will point you to the right supplier.
