EK Tech transfer carts move the loads that normally need a forklift or an overhead crane. Electro Kinetic Technologies builds motorized rail carts and steerable trackless transfer carts that carry heavy and oversized material up to 40,000 lb across a plant floor under full operator control, with the standard capacity range running from 5,000 to 30,000 lb. Customers use them for industrial pipe, dies, metal coils, structural steel, heavy equipment, components and finished assemblies.

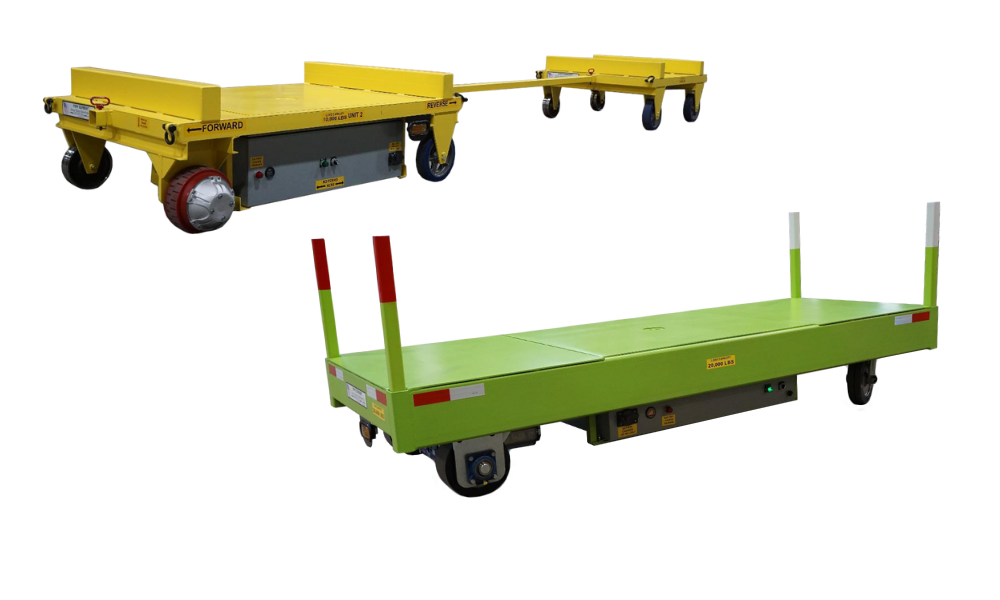

There are two ways to build the cart. Rail carts run on single or dual rail guidance with V-groove or flanged steel wheels, and they can be supplied as mother and daughter pairs when the load is very long. Steerable carts stay trackless on polyurethane or rubber wheels and turn tightly enough to work in crowded aisles. Deck sizes are customized to your exact requirements on both types, and a vertical lift can be added so material arrives at the height the next station needs.
Drive and steering both use AC induction motors under AC Vector Power control, which holds maximum power and torque across the whole speed range instead of falling away like a DC drive. That gives precise control down to 0.1 mph, with a variable range of 0.1 to 1.5 mph or 0.1 to 3 mph and custom ranges available by request. ReGen braking feeds energy back to the pack, swappable 48 VDC AGM or lithium iron phosphate batteries keep around the clock operations running, and the IP66 charger accepts 85 to 270 VAC single phase power under UL, cUL and CSA safety standards.
Controls are built around the operator, with an intuitive tiller on a mast or a wireless joystick, and safety options add an oscillating horn and lights during movement plus perimeter safety scanners. Thermal sensors inside the motor let the controller protect it in harsh conditions, and the battery monitor warns the operator by sight and sound before a pack runs down, with Bluetooth so a whole fleet can be checked from a phone. Every transfer cart is engineered to order, so we quote it. If your loads are lighter, look at the Pony Express AC Vector platform cart or the Pony Express 1031 platform cart.
Every line EK Tech builds to order sits on one page, our custom engineered motorized carts.
| Payload Capacity | Up to 40,000 lb, with 5,000 to 30,000 lb listed as the standard range |
| Cart Types | Motorized rail carts and steerable trackless transfer carts |
| Chassis | Welded steel frame |
| Deck Size | Fully customized to your requirements |
| Deck Top Options | Flat steel plate, hydraulic lifts, or tops customized for securing equipment |
| Steering Options | Single or dual rail guided, tiller on a mast, or wireless joystick control |
| Wheels On Rail Carts | V-groove or flanged steel on rails, polyurethane on concrete |
| Wheels On Steerable Carts | Polyurethane or rubber |
| Traction And Steering Motors | AC induction |
| Drive Control | AC Vector Power drive technology |
| Variable Speed Range | 0.1 to 1.5 mph or 0.1 to 3 mph, custom ranges by request |
| Braking | ReGen technology |
| Battery Options | Swappable 48 VDC AGM or lithium iron phosphate |
| Battery Charger | 85 to 270 VAC single phase, 50/60 Hz, IP66, UL, cUL and CSA |
EK Tech rates the transfer cart line to move any heavy load up to 40,000 lb, and the published specification range for the line runs from 5,000 to 30,000 lb. Tell us the weight, the length and the path the load has to travel and the factory engineering team confirms the build that carries it.
A rail cart follows single or dual rail guidance on V-groove or flanged steel wheels, which suits a fixed route and very long material. Mother and daughter pairs handle loads that overhang one cart. A steerable cart is trackless on polyurethane or rubber wheels with a tight turning radius, so it goes anywhere on the floor and needs no track work.
AC induction traction and steering motors run under AC Vector Power control from a swappable 48 VDC AGM or lithium iron phosphate pack. ReGen braking returns energy to the pack, and the IP66 charger works on 85 to 270 VAC single phase at 50 or 60 Hz. Swappable packs mean a fresh battery goes in when a shift ends instead of the cart waiting on a charger.
The Pony Express Custom Transfer Cart is engineered to order, so the options below are a starting point for the conversation with the EK Tech engineering team. Tell us what you move and where, and we quote the configuration that fits.
EK Tech builds this line to move heavy loads up to 40,000 lb, and the published specification range for the line is 5,000 to 30,000 lb. Because every cart is engineered around one job, the honest answer is that we take your load weight, load length and floor conditions to the factory and come back with a build and a price.
Only if you want them. Rail carts run on single or dual rail guidance and suit a fixed route with very long or awkward material. Steerable carts are trackless, ride on polyurethane or rubber tires and turn tightly, so they need no floor work at all. We help you pick between the two before anything is quoted.
Speed control goes down to 0.1 mph. The variable speed range is 0.1 to 1.5 mph or 0.1 to 3 mph depending on how the cart is set up, and EK Tech will build a custom range on request. AC Vector Power keeps full torque available at those crawl speeds, which is what lets an operator inch a coil or a die into place.
Yes. Hydraulic vertical lifts can be added to position material, and custom deck configurations include lift, tilt and rotate capability along with built in scales. Tell us what the receiving station needs and the deck gets built to suit.
Call us toll free at 1-888-233-5563 or use our contact form with the load weight, load size, travel distance and any door or aisle restrictions. We take it to the EK Tech engineering team in Germantown Wisconsin and come back with a configuration and a written quote.
We sell the Pony Express Custom Transfer Cart on a quote basis so we can confirm the right configuration and the best available price for your facility. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Material handling equipment like the Pony Express Custom Transfer Cart does not meet the medical device rules that Medicare and Medicaid use, so it does not qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Each unit ships by freight carrier on a skid from the EK Tech factory in Wisconsin. Once your order is confirmed we give you the current factory lead time with your quote, and transit typically adds three to seven business days depending on your distance. We coordinate dock delivery or liftgate service with you when the build is scheduled.
Yes. As soon as your unit ships we email you a tracking link so you can follow it all the way to your dock.
The Pony Express Custom Transfer Cart carries the Electro Kinetic Technologies limited warranty on the frame and drive system, with the exact term confirmed on your quote. It does not cover service or transportation costs, normal wear items, damage from misuse, unauthorized work or modifications, or outdoor storage. Shipping damage and incidental damages are also not covered. The warranty is valid for the original buyer with a sales receipt, and any warranty changes need approval from Electro Kinetic Technologies, LLC.
Yes, returns are possible. Please see our returns policy.
Because each transfer cart is engineered to order, the drawings, manual and specification sheet are produced for your build and sent with the quote. EK Tech also keeps a transfer cart information pack we can email you on request.
Key safety systems
Electro Kinetic Technologies, known as EK Tech, designs and builds its ergonomic material handling equipment in Germantown Wisconsin. The company specializes in motorized carts, electric tuggers and lift carts that remove the push, pull and lift forces behind most workplace musculoskeletal injuries, and it is a member company of MHI, the largest material handling industry association in the US. EK Tech equipment is in service at hospitals, pharmaceutical clean rooms, aerospace lines and NASA jet engine service teams. Buying a Pony Express Custom Transfer Cart means buying a US built product from a factory that will still be answering parts and support calls a decade from now.
