| Performance | |
|---|---|
| Weight capacity | Up to 30,000 lb |
| Drive system | 1.7 kW 48 VDC bus with 3 phase AC Vector Power drive |
| Speed low setting | 0.1 to 1.5 mph |
| Speed high setting | 0.1 to 3 mph |
| Steering | Electronic steer by wire with 90 degree wheel movement |
| Service braking | AC ReGen regenerative braking |
| Parking brake | Electromagnetic |
| AGM battery options | 48 VDC in 100, 200, or 300 Ah |
| Lithium battery options | 48 VDC lithium iron phosphate in 120, 240, or 360 Ah |
| Charger | Internal mount with optional external station for swappable packs |
| Charger input | 120 or 240 VAC single phase 50 or 60 Hz |
| Ingress protection | IP44 |
| Size & Build | |
|---|---|
| Standard usable deck size | 36 in wide x 62 in long |
| Chassis | Welded steel frame validated by finite element analysis |
| Drive wheel | 12 in diameter with polyurethane tread |
| Deck options | Custom sizes and tops available |
| Operating temperature | Minus 40 to 158 F |
| Charging temperature | Minus 9 to 140 F |
| Noise level | Under 65 dBA |

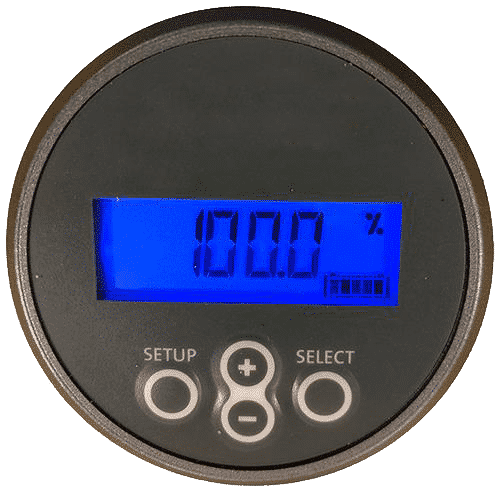

| Battery monitoring | Onboard display plus Bluetooth smartphone app |
Heavy duty electric platform cart from EK Tech rated for loads up to 30,000 lb. AC Vector Power drive, swappable AGM or lithium batteries, and steer by wire handling, engineered and built in the USA.

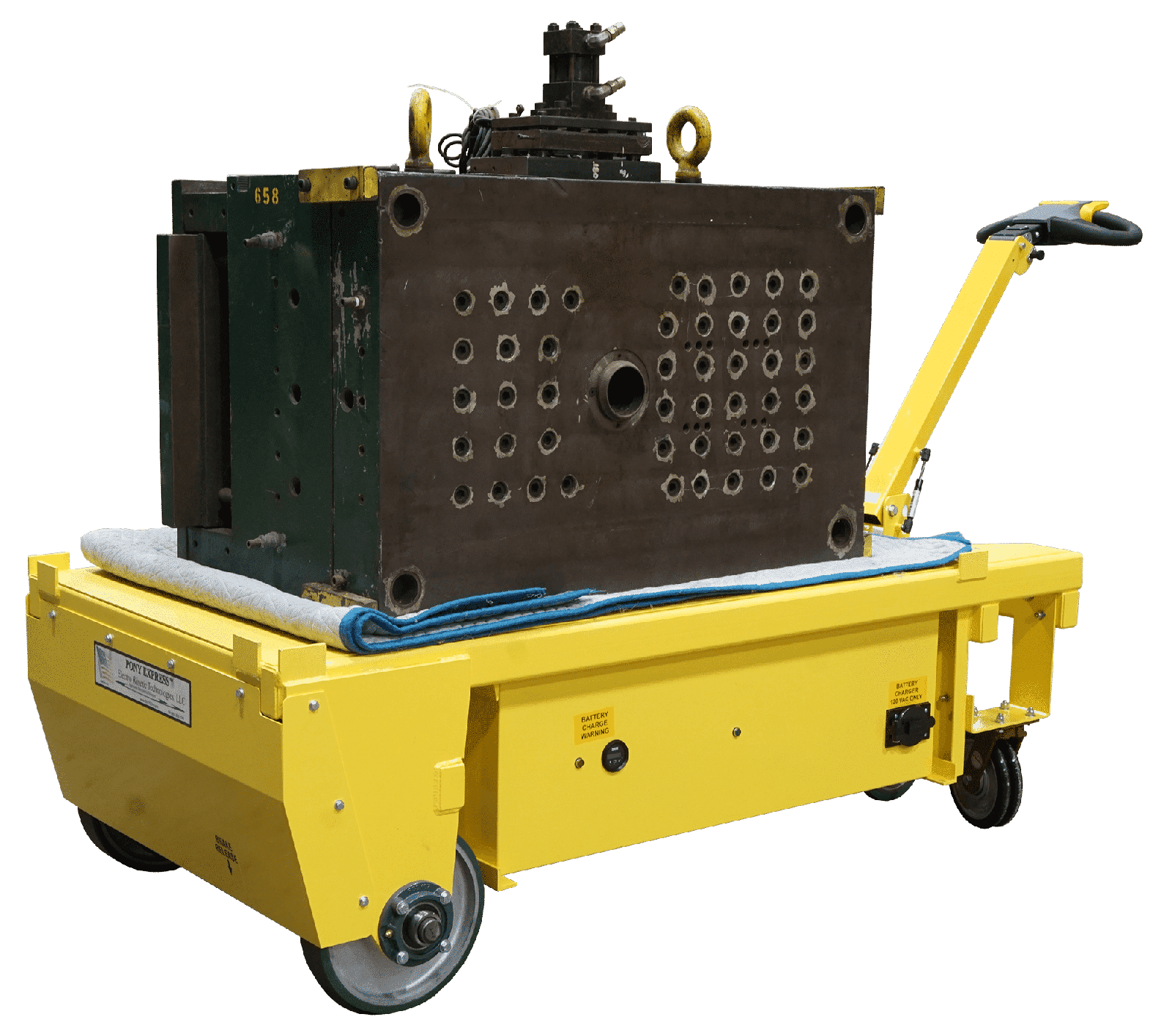

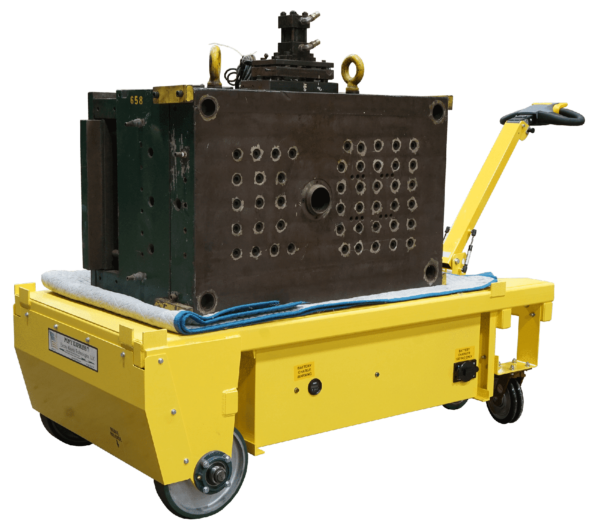

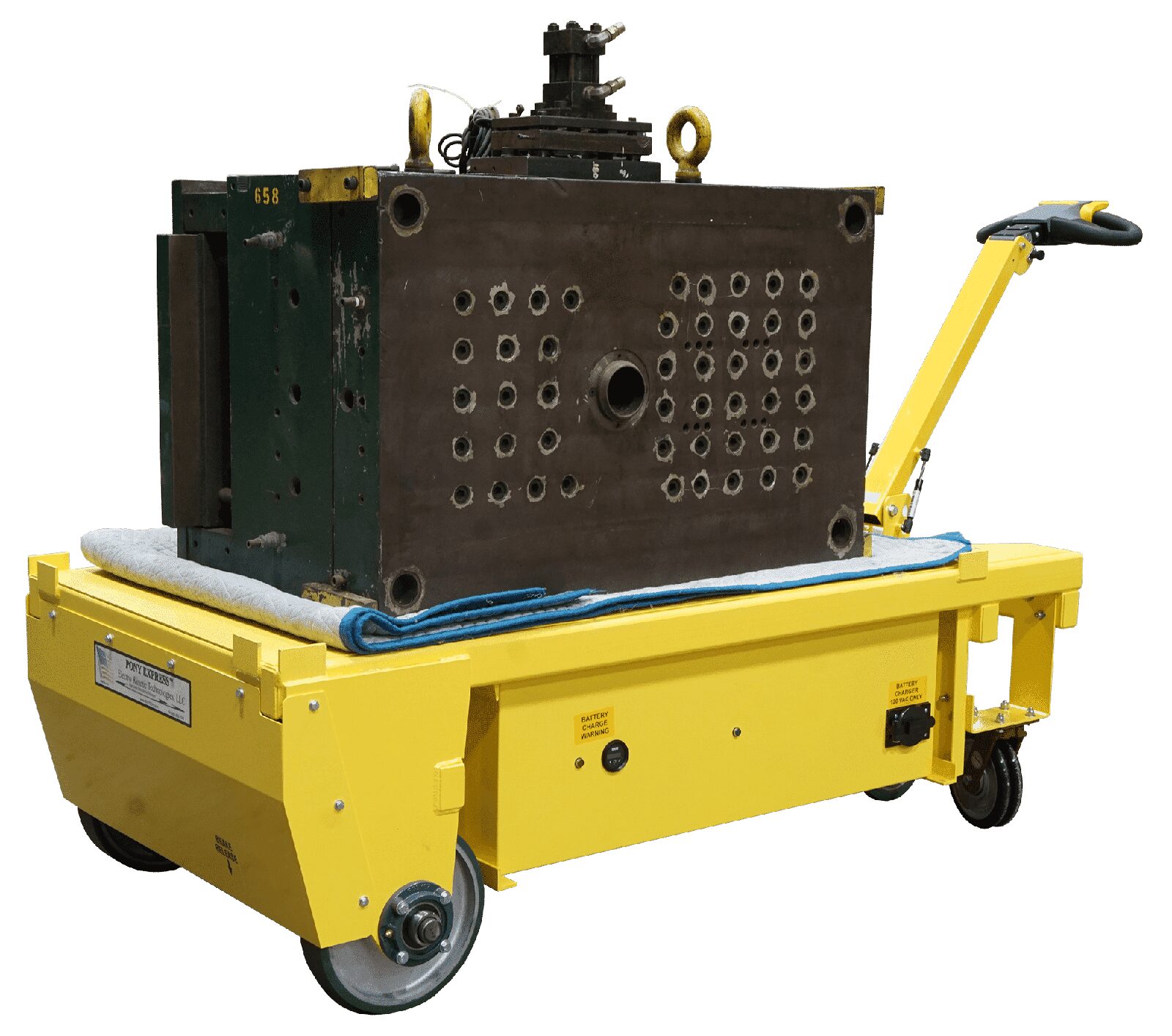

The Pony Express AC Vector cart is the top end of the EK Tech motorized platform cart range, built for plants that need to walk die sets, coils, fixtures, and machine bases weighing up to 30,000 lb across the floor without a forklift. Where the smaller Pony Express carts use DC drives, this line runs a 1.7 kW 48 VDC bus with 3 phase AC Vector Power drive, so full torque is available across the whole speed band and the operator can creep a fifteen ton load at 0.1 mph with real precision.
Steering is fully electronic. The steer by wire system swings the drive wheel 90 degrees left or right, which lets the cart turn around in roughly its own length and removes the hydraulic steering components that usually need maintenance on machines this size. Braking is regenerative, so the AC ReGen system pushes kinetic energy back into the battery pack every time the cart slows down and stretches the interval between charges.

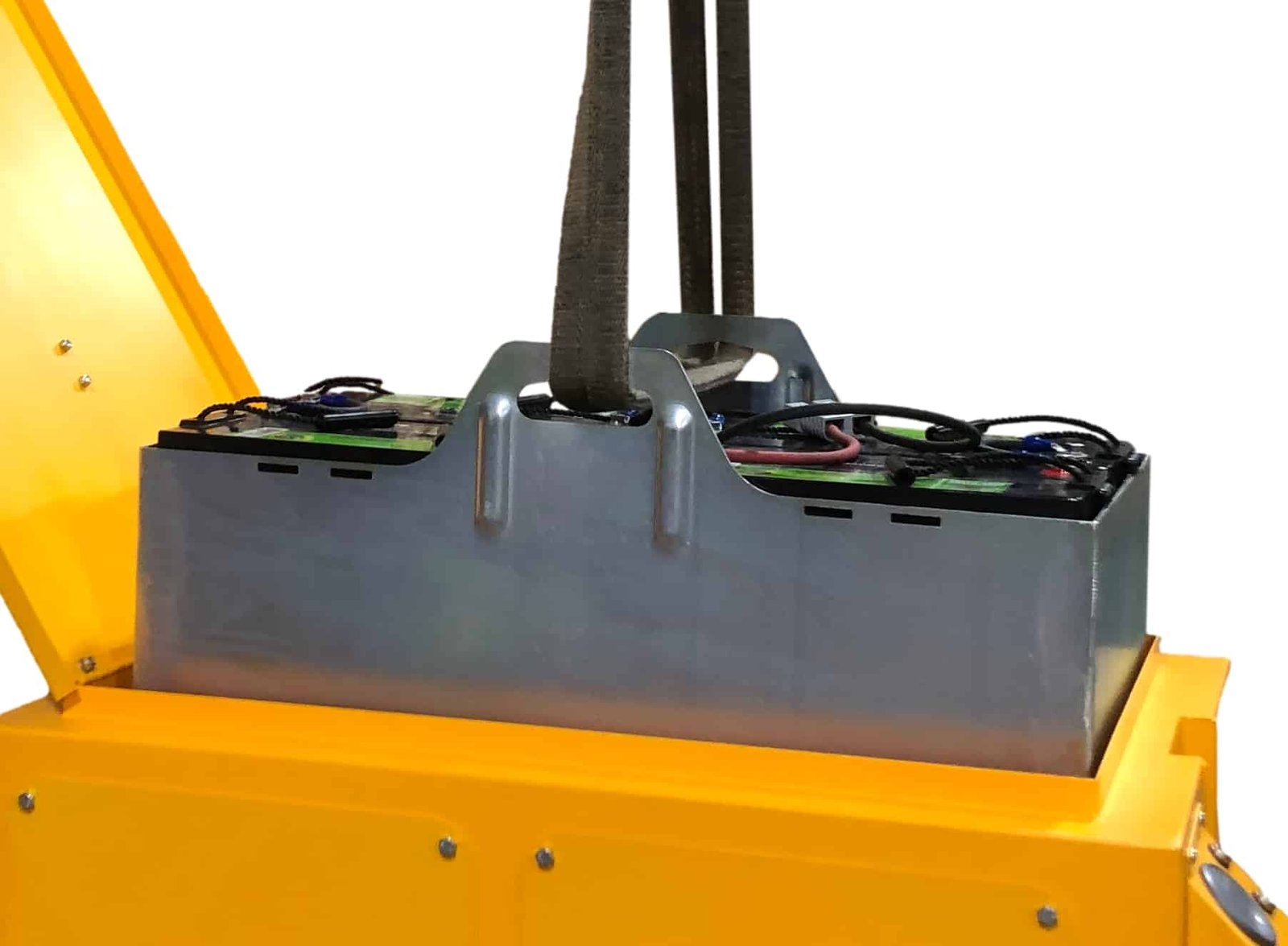

Power comes from cradled battery packs in either AGM or lithium iron phosphate chemistry, sized from 100 to 360 Ah. The cradle design means a depleted pack can be lifted out and a fresh one dropped in, which keeps the cart working through multi shift operations instead of sitting on a charger. An onboard monitor shows state of charge, consumed amp hours, and pack voltage, and a Bluetooth app mirrors it all on a smartphone.

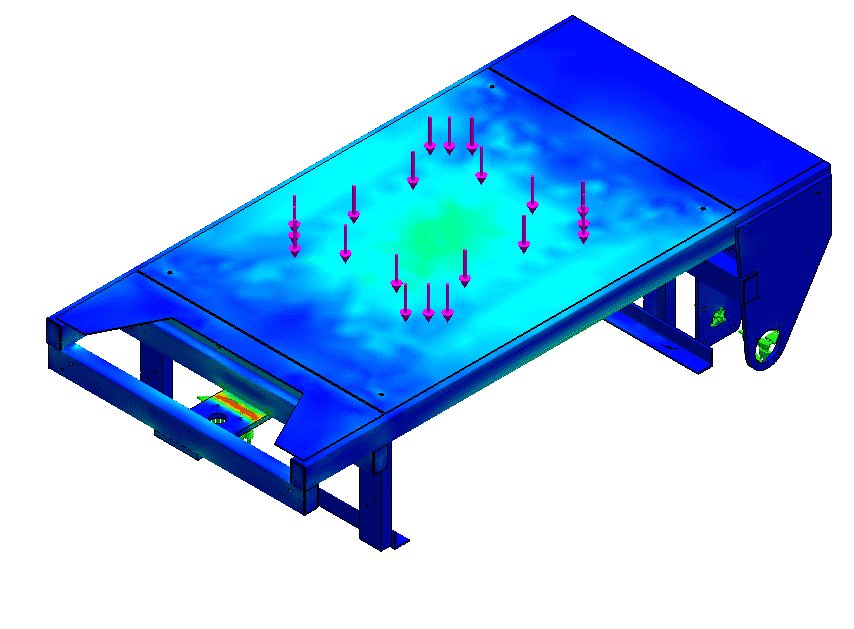

The standard usable deck is 36 by 62 inches on a welded steel chassis that EK Tech validates with finite element analysis, and custom deck sizes and tops are available for odd shaped loads. Every AC Vector cart is configured to order, so pricing is by quote.
The AC Vector is one of several custom motorized carts EK Tech builds to order.
EK Tech Pony Express AC Vector Series Motorized Platform Cart video
EK Tech backs the AC Vector 10K-30K with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Real people answer, business hours and weekends. If the line is busy, we call you back.
Direct relationships with the makers speed up warranty and technical answers.
Phone help first, and a technician if a shipping or product issue needs one.
Only heavy duty models we would recommend.
The AC Vector line covers configured builds from 10,000 lb up to 30,000 lb of load on the deck, and every build is checked with finite element analysis at its rated capacity. Plants use it to move die sets, coils, fixtures and machine bases across the floor without a forklift.
Down to 0.1 mph. The low setting runs 0.1 to 1.5 mph and the high setting 0.1 to 3 mph, and the 3 phase AC Vector Power drive keeps full torque across the whole speed band. AC ReGen braking slows the cart, and an electromagnetic parking brake holds it.
AGM packs come in 100, 200 or 300 Ah and suit single shift use. Lithium iron phosphate packs come in 120, 240 or 360 Ah and run longer, charge faster and handle multi shift duty better. Both are 48 volt DC and sit in cradles for easy removal and hot swapping.
The standard charger mounts inside the cart and plugs into a 120 or 240 VAC single phase outlet. For round the clock work, add the external charging station and a spare pack, then swap packs in the cradle so the cart keeps working. An onboard display and a Bluetooth app show state of charge, consumed amp hours and pack voltage.
The drive wheel swings a full 90 degrees each way, so the AC Vector turns around in roughly its own length. Steering effort stays near zero with a full load, and there are no hydraulic steering components to maintain. The drive wheel is 12 in in diameter with a polyurethane tread.
Yes. The standard usable deck is 36 in wide by 62 in long on a welded steel chassis, and EK Tech offers custom deck sizes and custom tops for dies, coils and fixtured loads as part of the factory build.
It is rated to operate from minus 40 to 158 F and to charge from minus 9 to 140 F. The ingress protection rating is IP44, and it runs at under 65 dBA.
Yes. EK Tech engineers and builds its Pony Express carts and tuggers in Wisconsin and supports them domestically.
It ships by freight truck. Call 1-888-233-5563 and we quote shipping to your address before you order.
Call 1-888-233-5563. We confirm the build, the price and the delivery with you and place the order on the phone.
Yes. Call 1-888-233-5563. Real people answer, business hours and weekends.
