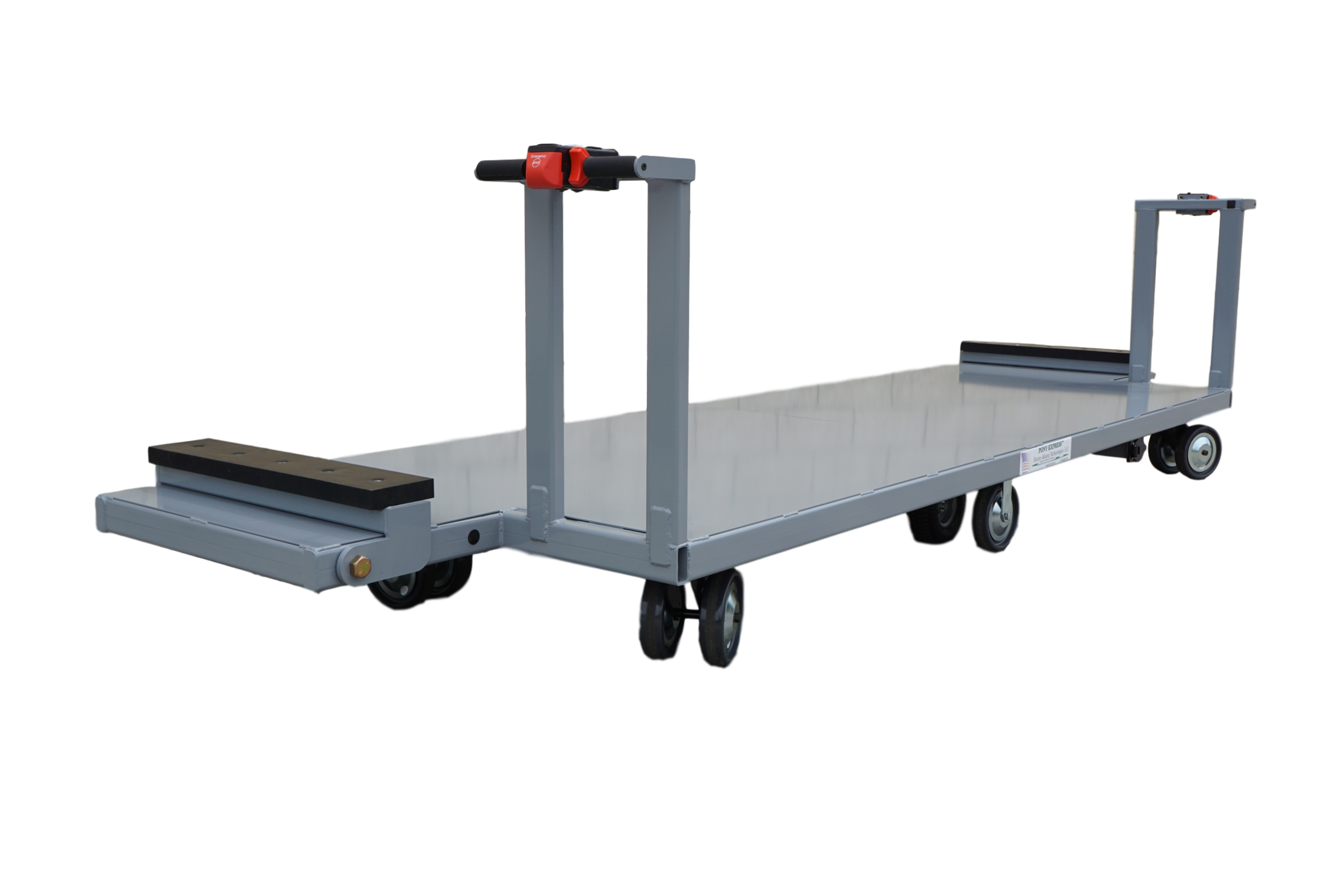

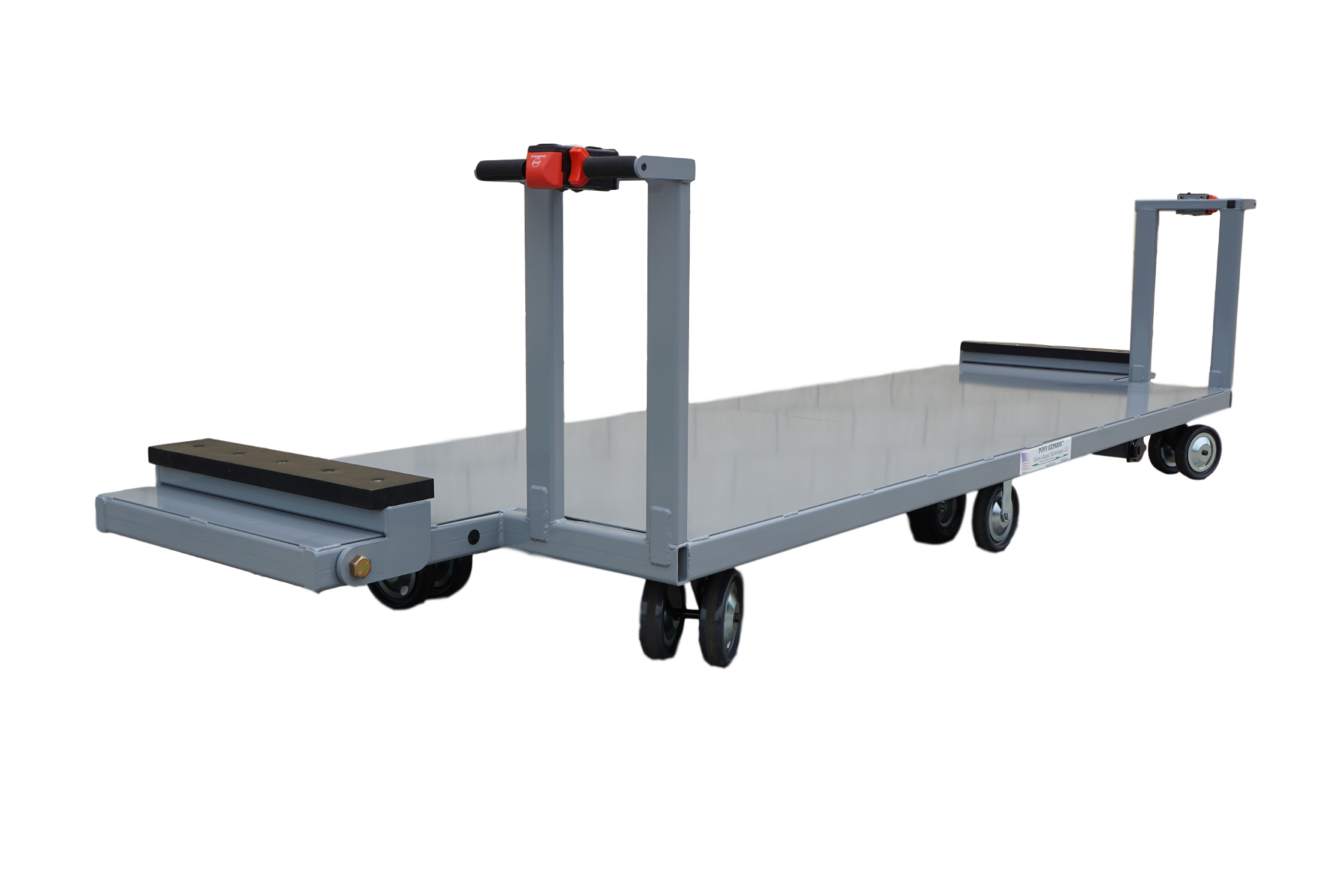

Long material is awkward material. Bar stock, piping, extrusions, angles and panels are too long for a normal cart, too wide for a comfortable forklift run and too valuable to swing overhead on a crane. EK Tech motorized long deck carts solve that by putting the whole length on one powered deck and letting a single operator walk it to the next station. Capacities run up to 5,000 lb, and higher payloads are available with dual drive systems.
The reason these carts work in a tight plant is that they pivot around the center of the cart rather than swinging the whole length around a corner. That is the extra maneuverability long loads need to get through a doorway or down a packed aisle. Deck lengths have typically been 12 to 18 feet on the builds EK Tech has delivered, and the factory asks the obvious question back, which is how long do you actually need to go.
Hand controls are placed where the work happens. You choose the left side, the right side, the front, the back, or dual controls, and because the handlebar usually sits off to one side the load can overhang both ends of the deck. Controls at both ends are worth asking for when there is nowhere to turn around, since the operator simply walks to the other end and drives back. Frames are welded, and stainless steel frames are available along with finishes for harsh environments and colors matched to your plant.
The deck itself is built around what rides on it. Choose plate steel, wood or diamond steel, have it pre drilled to your dimensions, and add removable posts or rails to hold material on top, custom cradles to support large diameter loads, shelving units, or powered and non powered conveyors mounted on the deck. Every long deck cart is a custom unit based on standard designs, which keeps the cost sensible, and it is quoted to your build. For shorter loads see the Pony Express 1031 platform cart, and for much heavier ones see the Pony Express AC Vector cart.
See every custom motorized cart line EK Tech builds to order.
| Payload Capacity | Up to 5,000 lb, higher with dual drive systems |
| Deck Length | Typical builds have run 12 to 18 ft, longer sizes quoted on request |
| Deck Size | Custom units based on standard designs, sized to your material |
| Maneuvering | Pivots around the center of the cart for tight paths |
| Hand Control Position | Left side, right side, front, back or dual |
| Frame | Welded frames, with stainless steel available |
| Top Material | Plate steel, wood or diamond steel |
| Pre Drilled Tops | Drilled to your dimensions |
| Load Retention | Removable posts or rails, and custom cradles for large diameter loads |
| Conveyors | Powered or non powered conveyors can be mounted on the deck |
| Shelving | Shelving units available |
| Finish | Finishes for harsh environments and custom colors matched to your requirements |
EK Tech rates the line at up to 5,000 lb, and higher capacities are available with dual drive systems. Because the deck is built around your material, the factory sets the final rating once it knows the weight, the length and how that weight is spread along the deck.
Typical decks have run 12 to 18 feet. EK Tech builds these as custom units on standard designs, so a longer deck is a conversation rather than a no. Tell us the longest piece you move and the tightest turn it has to make and we take both to the factory.
Left side, right side, front, back or dual. The handlebar is usually mounted off to one side so material can overhang both ends of the deck. If there is no turn around area on your route, ask for controls at both ends and the operator just walks to the other end and drives back.
The Pony Express Custom Long Deck Cart is engineered to order, so the options below are a starting point for the conversation with the EK Tech engineering team. Tell us what you move and where, and we quote the configuration that fits.
Up to 5,000 lb as standard, and higher with dual drive systems. Since the deck is built for your material, the factory confirms the rating once it knows the weight, the length of the piece and how the load sits along the deck.
Typical builds have run 12 to 18 feet. EK Tech treats deck size as a custom parameter on a standard design, so longer decks are quoted on request. The practical limit is usually your aisles and doorways rather than the cart.
It pivots around the center of the cart, so the ends swing rather than the whole length being dragged around the turn. That is what gives a long deck cart the maneuverability a forklift with a wide load does not have.
Yes. Removable posts or rails hold material on top of the platform, custom cradles support large diameter loads like pipe and coil, and shelving units can be built in. Powered or non powered conveyors can also be mounted on the deck when material has to move off the end.
Call us toll free at 1-888-233-5563 or use our contact form with the length and weight of your material, the deck top you want and the tightest turn on the route. We take it to the EK Tech engineering team in Germantown Wisconsin and come back with a written quote.
We sell the Pony Express Custom Long Deck Cart on a quote basis so we can confirm the right configuration and the best available price for your facility. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Material handling equipment like the Pony Express Custom Long Deck Cart does not meet the medical device rules that Medicare and Medicaid use, so it does not qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Each unit ships by freight carrier on a skid from the EK Tech factory in Wisconsin. Once your order is confirmed we give you the current factory lead time with your quote, and transit typically adds three to seven business days depending on your distance. We coordinate dock delivery or liftgate service with you when the build is scheduled.
Yes. As soon as your unit ships we email you a tracking link so you can follow it all the way to your dock.
The Pony Express Custom Long Deck Cart carries the Electro Kinetic Technologies limited warranty on the frame and drive system, with the exact term confirmed on your quote. It does not cover service or transportation costs, normal wear items, damage from misuse, unauthorized work or modifications, or outdoor storage. Shipping damage and incidental damages are also not covered. The warranty is valid for the original buyer with a sales receipt, and any warranty changes need approval from Electro Kinetic Technologies, LLC.
Yes, returns are possible. Please see our returns policy.
Every long deck cart is engineered to order, so the drawings, operator manual and specification sheet are produced for your build and go out with the quote. EK Tech also keeps a long deck cart information pack that we can email you on request.
Safety and handling features
Electro Kinetic Technologies, known as EK Tech, designs and builds its ergonomic material handling equipment in Germantown Wisconsin. The company specializes in motorized carts, electric tuggers and lift carts that remove the push, pull and lift forces behind most workplace musculoskeletal injuries, and it is a member company of MHI, the largest material handling industry association in the US. EK Tech equipment is in service at hospitals, pharmaceutical clean rooms, aerospace lines and NASA jet engine service teams. Buying a Pony Express Custom Long Deck Cart means buying a US built product from a factory that will still be answering parts and support calls a decade from now.
