| Performance | |
|---|---|
| Weight capacity | 440 lbs |
| Range | Up to 20 miles with 2 batteries, up to 30 miles with 3 |
| Top speed | Up to 6 mph |
| Turning radius | 33 in |
| Max incline | Up to 25 degrees |
| Motor | Two 300W brushless, 600W combined |
| Controller | 40 amp brushless |
| Battery | Two 24V 10Ah lithium |
| Charging time | About 2 hours with 5A charger |
| Brakes | Regenerative electromagnetic |
| Joystick | Mounts left, right or on the backrest |
| Suspension | 4 point |
| Size & Seat | |
|---|---|
| Weight without batteries | 58 lbs |
| Seat width | 24 in |
| Seat depth | 17 in |
| Seat height | 21 in |
| Backrest | Height adjustable |
| Overall length | 39.4 in |
| Overall width | 26.5 in |
| Overall height | 35 in |
| Folded size | 25.2 x 29.1 x 13.2 in |
| Ground clearance | 2.5 to 3.5 in, adjustable |
| Tires | 8 in front, 12 in rear, puncture free |
| Warranty | 4 years on the frame, 2 years on the motors, 1 year on the controller and batteries |

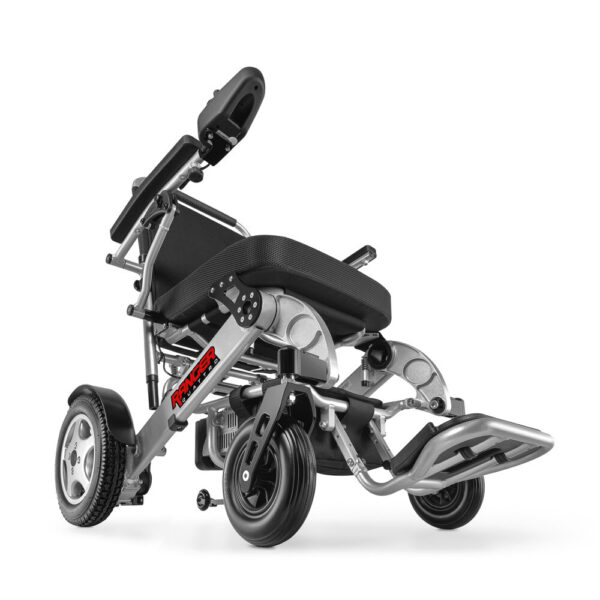

The Ranger Quattro XXL is the widest chair in the Quattro family, with a 24 in seat and a 440 lb weight capacity. It keeps the dual 300W motors, a top speed of up to 6 mph and up to 20 miles of range, and the frame weighs 58 lbs without its two batteries.

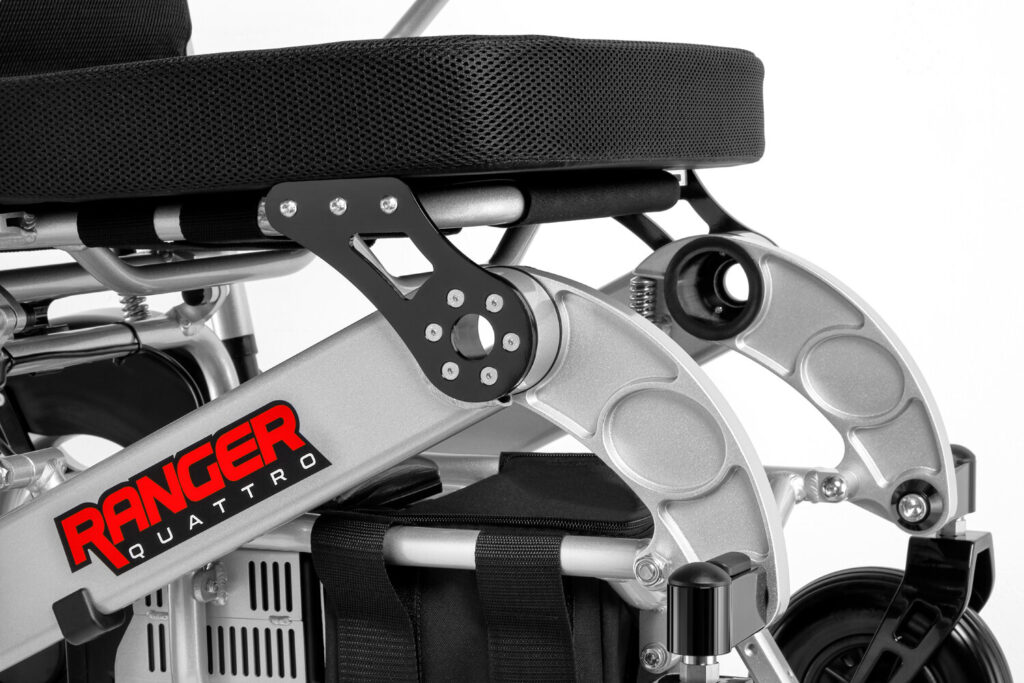

Porto built the Quattro XXL for larger riders who still want a chair that folds. The seat measures 24 x 17 in and sits 21 in off the ground, and the backrest adjusts in height. The open chair is 26.5 in wide, so measure the doorways you use most before you order.
Two 300W brushless motors, 600W combined, drive the rear wheels through a 40 amp controller. That is the same drive system as the smaller Quattro models. Each 24V 10Ah lithium battery weighs 4 lbs, and the pair recharges in about 2 hours on the 5A charger. The seat and backrest covers come off for washing.
The XXL is for a rider between 400 and 440 lbs, or anyone who needs a 24 in seat, who wants that room without moving to a much heavier frame. It weighs 58 lbs without batteries. The Ranger Magnum and Ranger The Beast carry more weight, but their frames come in at 89 and 90 lbs.
Against the Quattro XL, the XXL weighs the same 58 lbs and uses the same motors, but the seat grows to 24 in and the rating rises from 400 to 440 lbs. Overall width goes from 25.2 in to 26.5 in. The Ranger Discovery XXL also pairs a 24 in seat with a 440 lb rating. It weighs 8 lbs less, and the Quattro XXL answers with stronger 300W motors, 6 mph and up to 20 miles of range.
1 of 5
Heavy Duty Mobility, personally here for you
Meet the team that helps you choose, keeps you posted on delivery and picks up the phone after you buy.
Porto covers the Quattro XXL frame for 4 years and the motors for 2 years. The controller and the batteries are covered for 1 year.
Porto does not cover damage from abuse, such as taking it through deep water or dropping it. When a covered part fails, Porto sends the replacement part and connects you with a local service provider for the repair. If something goes wrong, contact us first and we will take the claim to Porto's technical team for you.
Real people answer, business hours and weekends. If the line is busy, we call you back.
Direct relationships with the makers speed up warranty and technical answers.
Phone help first, and a technician if a shipping or product issue needs one.
Only heavy duty models we would recommend.
Pay over time with Klarna, upfront about interest.
UpgradePorto Mobility Ranger Magnum Heavy Duty Folding Power Wheelchair$3,399
Lower pricePorto Mobility Ranger Discovery Folding Power Wheelchair$2,499
Longer rangePorto Mobility Ranger Carbon Folding Power Wheelchair$2,899
More capacityMerits Atlantis Heavy Duty Bariatric Power Wheelchair - P710A$4,910The seat is 24 in wide and 17 in deep, and the chair measures 26.5 in across overall. Porto rates the Quattro XXL for riders up to 440 lbs.
The XXL has a 24 in seat and carries 440 lbs. The XL has a 19 in seat with 21.5 in between the armrests and carries 400 lbs. Both weigh 58 lbs without batteries, have a height adjustable backrest and go up to 20 miles on two batteries. Porto lists the XXL charge time as about 2 hours with the 5A charger, against about 4 hours for the XL.
The Quattro XXL batteries are 24V 10Ah, or 240 watt hours each. Porto's listing makes no airline statement for this model, so ask your airline whether it accepts batteries of that size before you book.
Add it to your cart on this page and check out, which takes a few minutes. You can pay in full or choose Klarna to spread the cost over monthly payments.
Yes. Call 1-888-233-5563 and we will place the order with you. All we need is your payment method and your shipping address. Extra batteries and other Porto accessories can be added to a phone order.
We do not work with Medicare and we do not bill private insurance directly. Some private plans will reimburse you after you buy, so it is worth calling your insurer to ask. If they say yes, we are happy to provide an invoice and proof of purchase so you can file for reimbursement.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
If you want to check the box contents before you buy, call us and we will confirm them.
The Ranger Quattro XXL ships from Porto Mobility. Porto quotes delivery in about 1 to 5 business days for models in stock, and we email you the expected ship date after you order. If you need it by a certain day, call us before you buy and we will check the timing.
Yes. As soon as your order ships we email you a tracking link so you can follow it to your door.
Yes, within 30 days of delivery, as long as it comes back in new condition in its original boxes with all of its parts. A 15% restocking fee applies. You prepay the return shipping, and the original shipping charges are not refunded, so keep the boxes until you are sure. Items sold as open box cannot be returned.
Warranty problems are handled separately and do not count as a return. Please read the full returns policy for the details.
Porto lists the folded XXL at 25.2 x 29.1 x 13.2 in, the same package as the Quattro XL. Pull the two 4 lb batteries first so you are lifting the 58 lb frame on its own. We can walk you through the fold by phone.

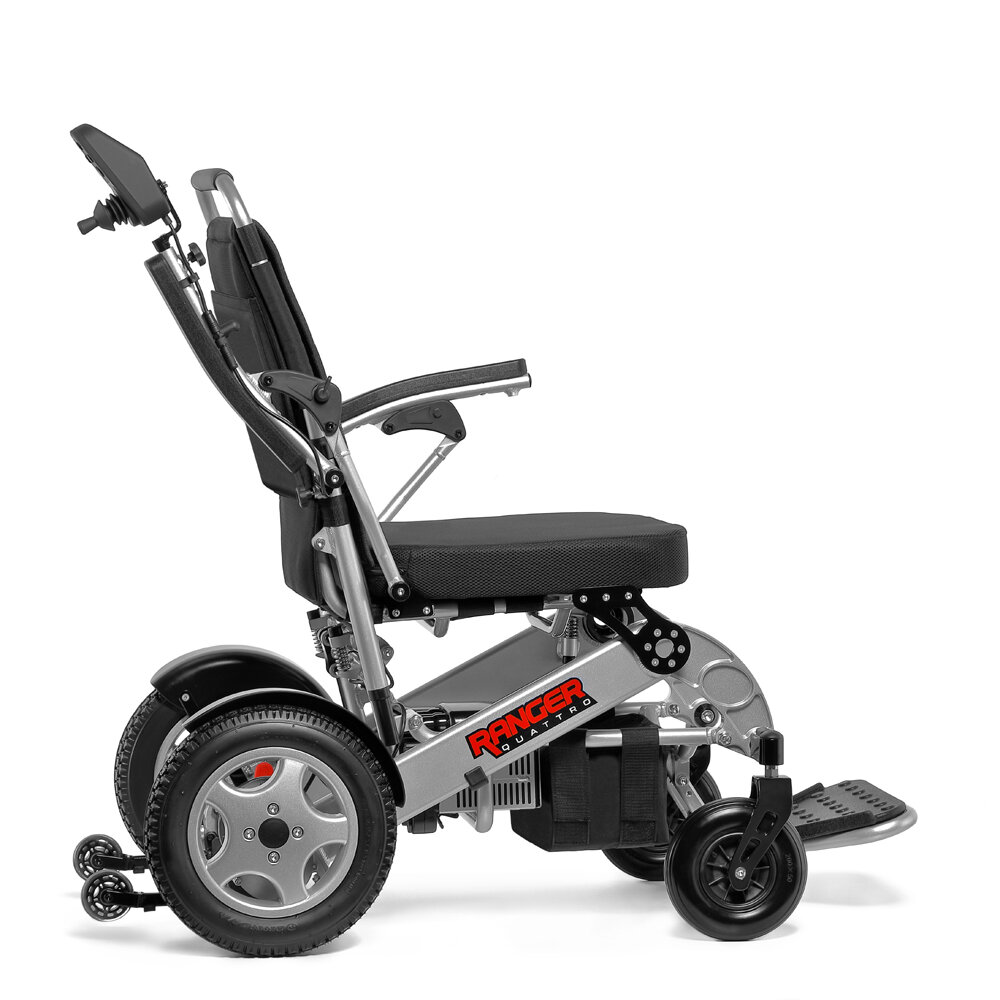

The joystick mounts on the left armrest, the right armrest or the backrest. On the backrest a caregiver can drive from behind. Freewheel mode disengages the motors so the chair can be pushed by hand.
About 2 hours with the 5A charger. Two batteries give up to 20 miles, and extra batteries are available by phone if you want a third pack for up to 30 miles.
Porto rates it for slopes up to 25 degrees. Take any slope slowly and straight on, never across it. It turns in a 33 in radius, ground clearance adjusts from 2.5 to 3.5 in, and the puncture free tires will not go flat. Porto does not publish a water resistance rating for the XXL, so keep it out of rain and standing water.
Folded, it measures 25.2 x 29.1 x 13.2 in, and the frame weighs 58 lbs without batteries. It comes with a padded travel bag. Measure your trunk or cargo area first, and call us if you want help checking a vehicle.
Porto's listing for the Quattro XXL does not describe the batteries as airline compliant. Each one is a 24V 10Ah lithium pack, so share those figures with your airline and confirm their rules before you book.
Porto Mobility designs and sells folding power wheelchairs, lightweight folding mobility scooters and portable chair lifts. Its Ranger chairs fold small enough for a car trunk or SUV cargo area, on carbon fiber or aluminum alloy frames depending on the model, and Porto publishes a weight capacity for each chair, scooter and lift.
Porto's standard warranty covers the frame for 3 years and the electronics and batteries for 1 year, and some models carry different terms. When a covered part fails, Porto sends the replacement part and connects you with a local service provider. As an authorized dealer we stay your first point of contact and take the claim to Porto's technical team for you.
