SAVE $1,290 Original price was: $5,589.$4,299Current price is: $4,299.
Stock: See StockIn Stock
Stock status can change very rapidly - an item might come back in stock before we update this or might have sold out.
We highly recommend you call or chat with us for a 100% stock status.
The Shoprider XLR 14 is a mid wheel drive power wheelchair built around a 50 degree power tilt seating system, which puts genuine pressure relief and repositioning within reach of a joystick command instead of a caregiver transfer. It carries the K0835 and K0836 HCPCS designations, the codes Medicare uses for group 2 power chairs with a single power seating function, so it sits a clear step above basic travel power chairs.
Underneath, 14 inch solid drive wheels pair with four independently suspended casters, two in front and two in the rear, so the chair keeps six points of contact with the ground at all times. The self adjusting suspension soaks up thresholds, sidewalk seams and uneven yards while the mid wheel layout keeps the turning footprint tight enough for hallways and kitchens.
Range is where the XLR 14 separates itself from most tilt chairs in its class. The flip forward seat opens up a battery bay that accepts Shoprider Xtra Long Range battery groups, from 22NF packs good for around 18 miles up to Group 24 packs rated for as much as 27 miles on a charge. A 300 lb weight capacity, 2.75 inches of ground clearance and a 4.1 mph top speed round out a chair aimed at full day, everyday use.
| Model Numbers | K0835 and K0836 |
| Drive Type | Mid wheel drive |
| Weight Capacity | 300 lb |
| Max Speed | 4.1 mph |
| Range with 22NF Batteries | Up to 18 miles |
| Range with Group 34 Batteries | Up to 22 miles |
| Range with Group 24 Batteries | Up to 27 miles |
| Power Tilt | 50 degrees |
| Drive Wheels | 14 inch solid |
| Front Casters | 6 inch solid |
| Rear Casters | 5 inch solid |
| Suspension | Active independent with six ground contact points |
| Ground Clearance | 2.75 inches |
| Safe Climbing Angle | 6 degrees or 10 percent grade |
| Overall Length | 41 inches |
| Overall Width | 24.8 inches |
| Seat to Floor Height | 18.5 to 21 inches or 21.5 to 24 inches |
| Unit Weight | 265 lb and varies with installed options |
| Battery Weights | 30 lb or 41 lb or 52 lb by group size |
| Charger | 8 amp off board |
Shoprider builds the XLR 14 to order with several factory seating and power options. A power seat elevate option raises the entire seat for reach and eye level conversation. Newer K0836 builds can combine power elevate, power recline and a powered Articulating Foot Platform in a single unit, and the joystick operated foot platform raises and lowers the legs to relieve pressure and encourage circulation while tilted.
Battery capacity is also chosen at order time. The chair accepts 22NF, Group 34 or Group 24 batteries, with rated range climbing from roughly 18 to 27 miles as the group size grows.
For clinical seating needs there is a dedicated rehab seating build, listed by Shoprider as the K0835 RS. It swaps the captain seat for a rehab back with 7/8 inch OD seat back cane tubing and a back mounted spreader bar set 4 inches deep, so backs, cushions, laterals and headrests from major seating and positioning manufacturers bolt straight on. Call us to spec any of these options before ordering.
Because the rehab seating version uses standard 7/8 inch back canes, the XLR 14 works with third party positioning hardware such as aftermarket backs, headrests, lateral supports and pressure relief cushions from the major seating brands. Shoprider also offers replacement Xtra Long Range battery sets in 22NF, Group 34 and Group 24 sizes plus the 8 amp off board charger as service parts. Ask our team about pairing the chair with the powered Articulating Foot Platform if leg elevation is part of your seating plan.
Yes. Call us toll free at 1-888-233-5563 and we will take care of everything. All we need is your payment method and your shipping address.
If you are still deciding, we are glad to talk you through the options and help you land on the right choice.
Most products in this range do not meet the strict medical device rules that Medicare and Medicaid use, so they rarely qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Some private plans will reimburse you outside of the Medicare framework. The best way to find out is to call your insurer and ask. If they say yes, we are happy to provide an invoice and proof of purchase so you can file for reimbursement.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
You can spread the cost of your XLR 14 over time with Klarna. Choose monthly installments or a lease to own plan at checkout. The minimum monthly amount shows next to the price near the top of this page.
The whole process happens online and usually gives you an instant decision. If you would rather have a hand, call us and we will walk you through it.
Orders typically leave the warehouse within one to three business days. Once on the way, expect a transit time of around three to seven business days depending on your distance from the warehouse.
The stock status sits just under the product title near the top of this page. If it shows a lead time, the ship out window is that lead time plus the normal transit time above.
Yes. As soon as your order ships we email you a tracking link so you can follow it all the way to your door.
Shoprider backs the XLR 14 with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Yes, returns are possible. Please read the full returns policy for the details.
Official Shoprider documents for the XLR 14
Key safety notes. Respect the 300 lb weight capacity and the 6 degree safe climbing angle. Keep the seat belt fastened whenever the tilt function is in use and return the seat to an upright position before driving on slopes. Charge only with the supplied 8 amp off board charger and read the full manual before first use.
Daily driving runs through a familiar armrest mounted joystick that controls speed, steering and the power seating functions. Top speed is a controlled 4.1 mph, which suits indoor spaces as well as sidewalks, and solid tires on all six wheels mean there is never a flat to patch.
Charging uses an 8 amp off board charger, so the charger can stay at home plugged in near your parking spot. The seat flips forward for direct access to the battery bay when service or a battery swap is needed.
The XLR 14 is a full size rehab chair, not a folding travel chair. At 265 lb before batteries it should travel in a van with a ramp or platform lift or on an exterior vehicle lift rated for its weight. The 24.8 inch overall width fits standard doorways and the 41 inch length keeps it maneuverable in elevators and accessible vehicles. Store and charge it indoors out of the weather.

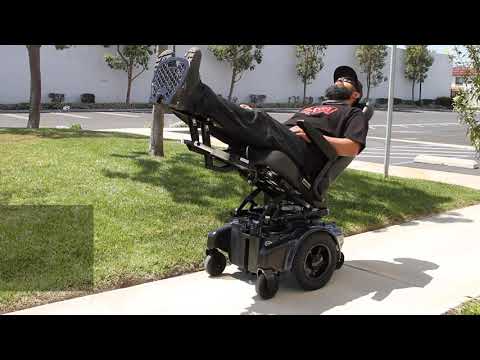

The factory power tilt seating system provides 50 degrees of tilt, controlled from the joystick, which is enough for meaningful pressure redistribution and rest positioning through the day.
Range depends on the battery group you order. Shoprider rates 22NF batteries for up to 18 miles, Group 34 for up to 22 miles and Group 24 for up to 27 miles after break in.
The XLR 14 is rated for riders up to 300 lb.
Yes. Shoprider lists the chair under HCPCS codes K0835 and K0836, which cover group 2 power wheelchairs with a power seating function. We sell it retail and can share the spec documents your clinician or supplier may need.
Yes. Power seat elevate is available, and current K0836 builds can combine elevate, recline and a powered Articulating Foot Platform in one unit. These are factory options so contact us to configure them before ordering.
The K0835 RS build replaces the captain seat with a rehab back frame using 7/8 inch OD seat back cane tubing and a 4 inch deep spreader bar, so seating and positioning products from major manufacturers can be fitted for clinical users.
Yes. The mid wheel drive layout turns within its own footprint, the chair measures 24.8 inches wide and 41 inches long, and the 4.1 mph top speed is easy to modulate in tight spaces.
Shoprider Mobility Products has been building scooters and power chairs for the US market for more than three decades from its base in Carson California, backed by the manufacturing scale of its Taiwan based parent company. The brand is known for straightforward engineering, wide dealer parts availability and durable drivetrains, and its products carry FDA listings and HCPCS codings that let dealers and clinicians work with them in funded as well as retail settings. The XLR 14 has stayed in the lineup for years across the K0835 and K0836 generations, a good sign that parts and service support will be there for the long haul.
