Custom Builds| Performance | |
|---|---|
| Payload capacity | 2000 lb or 2500 lb depending on build |
| Maximum raised height | 41.5 in, 53.5 in or 65.5 in by travel option |
| Lift time | 7 to 21 seconds depending on configuration |
| Top speed | 0 to 3 mph with hi and low speed switch |
| Crawl speed safety | Drive speed limited to 25 percent of normal whenever the platform is raised |
| Operating range | Up to 5 miles per charge |
| Battery | Deep cycle AGM rated for about twice the life of standard batteries |
| Charger | On board UL and cUL listed smart charger, 120 or 240 VAC input |
| Brakes | Regenerative dynamic braking plus automatic holding brake |
| Controls | Magnetic backed hand pendant with up and down control on a 10 ft cord |
| Size & Build | |
|---|---|
| Lowered platform height | 17.5 in on standard builds |
| Standard platform sizes | 26 x 40 in, 26 x 48 in or 26 x 64 in |
| Maximum platform sizes | 36 x 60 in, 36 x 72 in or 36 x 84 in |
| Construction | Welded steel frame built in Germantown Wisconsin USA |
| Casters | 8 in casters with non marking tires |
| Model series | Pony Express 1052 with six factory configurations |
| Configurations | 1052-2000-24, 1052-2500-24, 1052-2000-36, 1052-2500-36, 1052-2000-48, 1052-2500-48 |
| Priced configuration | 1052-2500-36 with a 32 x 54 in platform, 53.75 in raised height and 18.75 in lowered height. Other builds are quoted on request |
| Vertical travel options | 24 in, 36 in or 48 in |
| Standard safety equipment | Horn, key switch and emergency stop |
Built to order in Wisconsin, the Pony Express 1052 combines a powered drive system with a battery hydraulic scissor table so one operator can move and raise loads up to 2500 lb. Choose 24, 36 or 48 inches of vertical travel and a platform sized to your exact job.
The Pony Express 1052 is a self propelled scissor lift cart from Electro Kinetic Technologies that pairs a battery powered drive system with a hydraulic scissor table. One operator can load at floor friendly height, drive the cart across the plant at up to 3 mph, then raise as much as 2500 lb to the exact working height the next station needs. Every push, pull and manual lift that normally happens during a material transfer is handled by the cart instead of a worker.
The signature safety feature is crawl speed. Any time the platform is not fully lowered, the cart automatically limits forward and reverse travel to a quarter of normal speed, so the operator can still nudge a raised load into final position without ever moving fast with a high center of gravity. EK Tech can also configure the cart to lock out travel completely whenever the platform is up.
The 1052 comes in six base configurations that pair a 2000 or 2500 lb capacity with 24, 36 or 48 inches of vertical travel, and standard builds start at a low 17.5 inch lowered height. Platforms run from a standard 26 x 40 inches up to a maximum 36 x 84 inches. Because each unit is built to order in Wisconsin, EK Tech engineers routinely tailor the deck, controls and safety package to the application. Working units are in service everywhere from window and door manufacturing to aerospace packaging lines and the Bay Area Rapid Transit system.
See every engineered to order cart EK Tech builds, from transfer carts to hospital medication carts.
Heavy Duty Mobility, personally here for you
Meet the team that helps you choose, keeps you posted on delivery and picks up the phone after you buy.
EK Tech backs the Pony Express 1052 with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Real people answer, business hours and weekends. If the line is busy, we call you back.
Direct relationships with the makers speed up warranty and technical answers.
Phone help first, and a technician if a shipping or product issue needs one.
Only heavy duty models we would recommend.
The 1052 comes in 2,000 lb and 2,500 lb capacity builds. Each capacity is offered with 24, 36 or 48 in of vertical travel, which makes six standard configurations, and EK Tech can engineer capacities above 2,500 lb on request.
Standard 1052 builds start at a 17.5 in lowered height. With 24, 36 or 48 in of vertical travel, the platform tops out at 41.5, 53.5 or 65.5 in. Custom decks can shift these heights slightly, so check the figures on your quote.
Yes, but only at crawl speed. Whenever the platform is not fully lowered, the cart limits forward and reverse travel to 25 percent of normal speed, so the operator can fine position a raised load. EK Tech can also set the cart to not travel at all with the platform up.

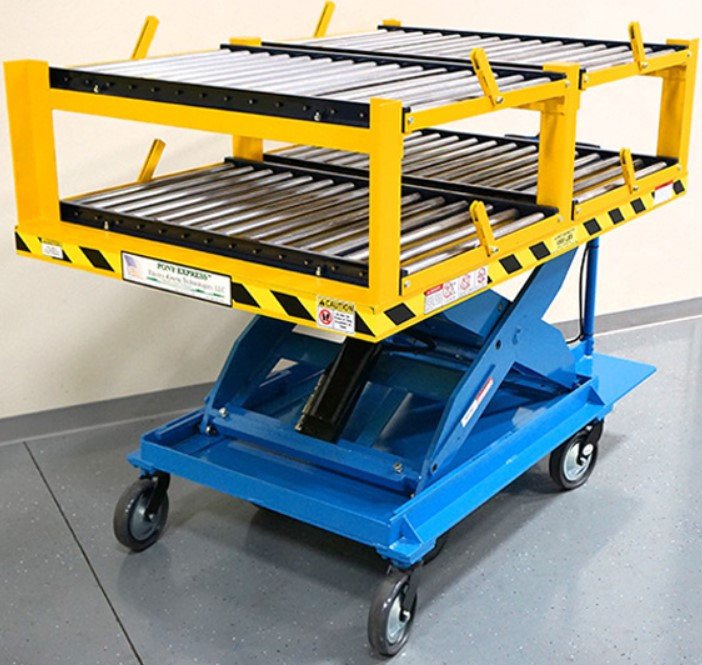

Standard platforms are 26 by 40, 26 by 48 and 26 by 64 in depending on the lift height, with maximum sizes of 36 by 60, 36 by 72 and 36 by 84 in. Ball transfer, rotating, conveyor and stainless steel tops are factory options.
A deep cycle AGM battery rated for about twice the life of a standard battery powers the cart, and a full charge supports up to 5 miles of driving. The onboard UL and cUL listed smart charger plugs into a 120 or 240 VAC outlet.
Drive speed runs from 0 to 3 mph with a high and low speed switch. Regenerative dynamic braking plus an automatic holding brake handle stopping, and 8 in casters with non-marking tires carry the load.
Up and down are run from a magnetic backed hand pendant on a 10 ft cord. A horn, key switch and emergency stop are standard.
The 1050-EL is the light duty model with a 1,000 lb capacity and a fixed 23 by 43.5 in platform. The 1052 is the heavy duty custom line with 2,000 or 2,500 lb capacity, platforms up to 36 by 84 in, a hydraulic scissor table and a much deeper factory option list.
It can. As a general rule, OSHA 1910.178 covers platform lift trucks, motorized hand trucks and other powered industrial trucks and requires that only trained and authorized operators use them. Whether that applies to your site is the employer's decision, so check with your safety lead first.
Each 1052 is built to order by Electro Kinetic Technologies with a welded steel frame in Germantown, Wisconsin, USA. EK Tech engineers routinely tailor the deck, controls and safety package to the application.
It ships by freight truck. Call 1-888-233-5563 and we quote shipping to your address before you order.
Call 1-888-233-5563. We confirm the build, the price and the delivery with you and place the order on the phone.
Yes. Call 1-888-233-5563. Real people answer, business hours and weekends.
21-day in-facility trial · Refundable $250 deposit · You pay freight only
