No sales tax added
| Performance | |
|---|---|
| Part number | 1050-A03 |
| Fits | Pony Express 1050-EL motorized electric lift cart |
| Action | Folds and unfolds with the scissors as the deck raises and lowers |
| Host lift range | 18.5 in lowered to 64 in raised off the floor on the 1050-EL |
| Status | Factory option listed by EKT for the 1050-EL |
| Brand | Electro Kinetic Technologies (EKT) |
| Size & Build | |
|---|---|
| Type | Accordion style safety skirt |
| Function | Encloses the scissor mechanism so the pinch points stay covered through the lift |
| Host platform size | 43.5 in long by 23 in wide usable platform on the 1050-EL |
| Build | Built to order at the Electro Kinetic Technologies factory |
| Warranty | 1 year |
| Country of origin | United States |

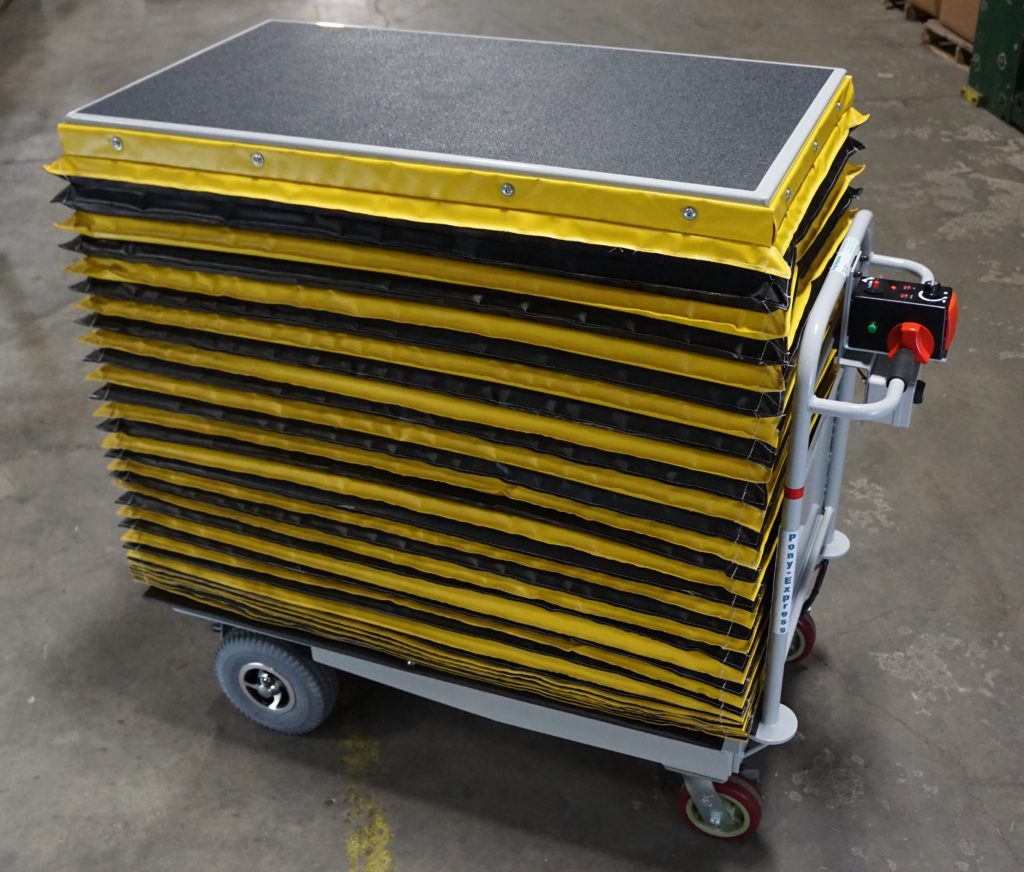

The 1050-A03 accordion safety skirt is the factory guard for the scissor mechanism on a Pony Express 1050-EL lift cart. It folds with the scissors as the deck moves, so the pinch points stay covered from 18.5 in all the way up to 64 in.
The 1050-A03 accordion safety skirt is the factory guard for the scissor mechanism on a Pony Express 1050-EL motorized electric lift cart. It is a pleated skirt that closes in the space under the deck and folds down with the scissors as the cart lowers, so the gaps that open and close during a lift stay covered through the whole cycle.
A scissor lift is a pinch hazard by design. The 1050-EL raises the deck from 18.5 in off the floor up to 64 in, and every inch of that travel opens and closes a gap between the moving arms. The accordion skirt keeps hands, sleeves, air lines and stray parts out of that gap and keeps swarf and debris off the mechanism, which is why plants working to a machine guarding standard usually specify it on the order.
This is the option Electro Kinetic Technologies lists on the 1050-EL factory page as the optional safety skirt, and it is built to order in Germantown Wisconsin to suit the 43.5 in long by 23 in wide platform. It carries a 1 year warranty. Because it fits around the lift mechanism itself, the simplest route is to order it with a new cart, and we can ask the factory about fitting one to a 1050-EL that is already in service.
If you are guarding several carts or a whole cell, tell us how many units and we will quote them together. See also the Pony Express 1050-EL lift cart, the ball transfer top 0244-500 and the gravity roller conveyor top 0244-505.
Heavy Duty Mobility, personally here for you
Meet the team that helps you choose, keeps you posted on delivery and picks up the phone after you buy.
Real people answer, business hours and weekends. If the line is busy, we call you back.
Direct relationships with the makers speed up warranty and technical answers.
Phone help first, and a technician if a shipping or product issue needs one.
Only heavy duty models we would recommend.
The scissor mechanism is the moving part of the cart that can catch a person. Operators reach under a raised deck to steady a load or pick something up, and the 1050-A03 skirt puts a barrier around the mechanism through the whole range of travel, keeping hands, sleeves and air lines out of the gap.
All of it. The 1050-EL raises its deck from 18.5 in off the floor up to 64 in, and the pleated skirt folds and unfolds with the scissors, so the pinch points stay covered from fully lowered to fully raised. It also keeps swarf and debris off the mechanism.
It is designed to move with the machine. The pleats fold down with the scissors as the deck lowers and open as it rises, and it is the factory safety skirt option Electro Kinetic Technologies lists for the 1050-EL.
It fits the Pony Express 1050-EL motorized electric lift cart, with its 43.5 in by 23 in usable platform. It is not a universal skirt.
Often, but it depends on the build of that cart. The skirt fits around the lift mechanism itself, so the simplest route is to add it to a new cart. For a cart already in service, the factory checks the serial number before a skirt is built for it.
It is built to order by Electro Kinetic Technologies at its factory in Germantown, Wisconsin, USA.
Call 1-888-233-5563. We confirm the build, the price and the delivery with you and place the order on the phone.
Yes. Call 1-888-233-5563. Real people answer, business hours and weekends.
